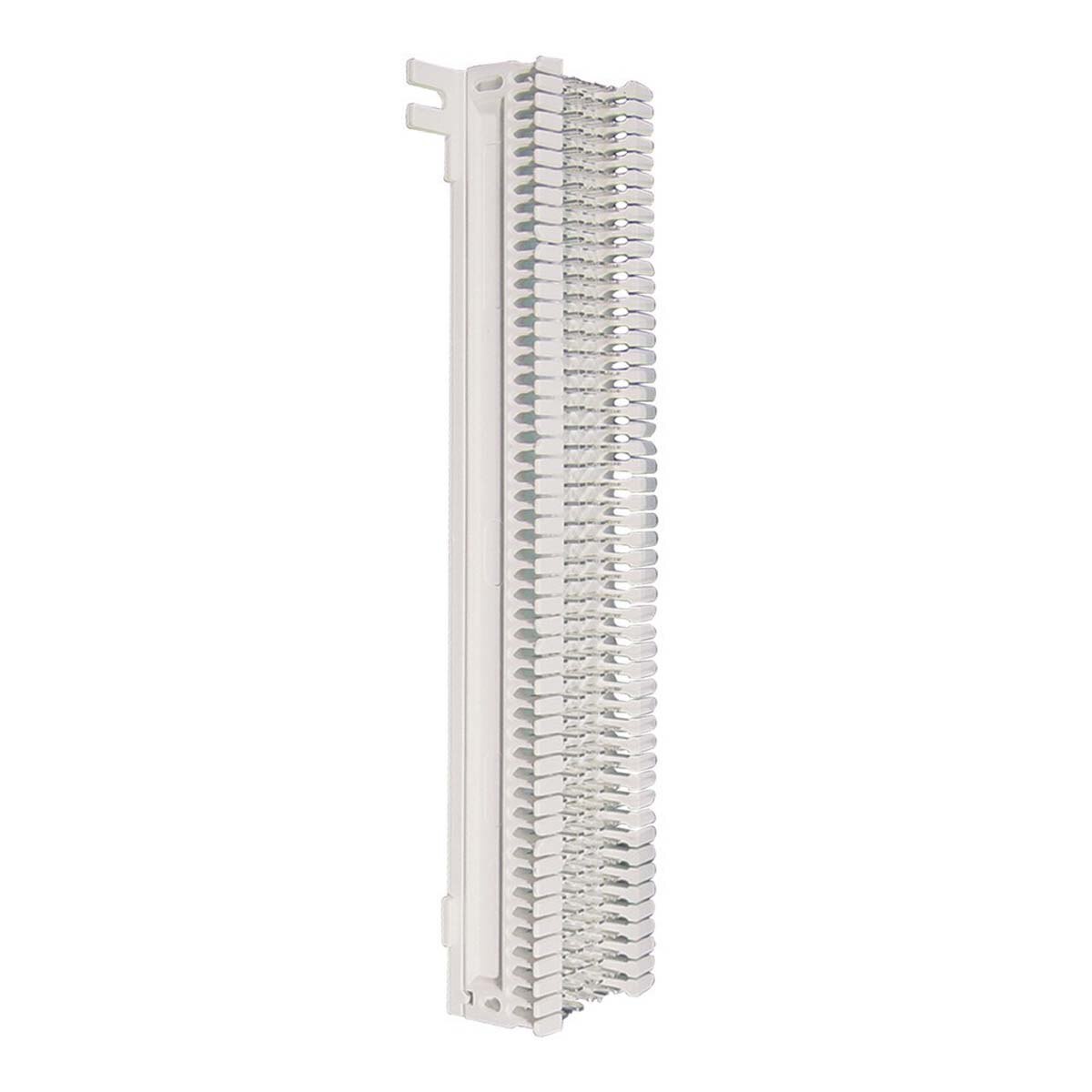

ICC offers a 66 Wiring Block. This 66 wiring block is used as a punch-down block for the connection of wires. 66 Wiring Block, have a versatility look for a professional appearance. This particular panel is designed for voice and data applications and comes in a single unit.
Features
Designed for voice and data applications.
Exceeds ANSI/TIA-568-C requirements for permanent.
Channel link and component performances.
Durable and strong high impact flame retardant material.
Mounts on wall or on 89B mounting brackets.
Used with 66 wiring block bridging clips.
66 wiring block and 66 wiring block labeling strips.
UL 1863 compliant.
Specifications
Environmental:
Temperature Storage:
Storage:-40 to 70 degree C
Operational: -10 to 60 degree C
Electrical:
Electrical Insulation Resistance
500 mohms min at 100V DC
Dielectric withstanding voltage:
100V RMS at 60 Hz for 1 min
Contact Resistance: 2.5 mohms max
Mechanical:
Transverse Extraction Force:
MIN 5N for 24 AWG
MIN 3N for 26 AWG
Insertion/Extraction LIFE: 200 cycles min
IDC Wire Gauge: 22-24 AWG
Physical:
UL 94V-0
IDC: Brass plated with 100 micro
