Cadweld Plus Exothermic Weld Metal

Multiple Options Available

Availability: In stock

Quick Overview

Cadweld Plus Exothermic Weld Metal

Cadweld Plus Exothermic Weld Metal

Multiple Options Available

Availability: In stock

Quick Overview

Cadweld Plus Exothermic Weld Metal
FREE SHIPPING OVER $199!
$59.85

* Required Fields

Cadweld Plus- The ultimate welded connection that will never loosen, corrode or increase in resistance.

Continuing Erico's tradition of technical leadership, Cadweld Plus was developed as a simplified method of performing exothermically welded electrical connections.

This trusted system features a new Cadweld Plus cup design for the integrated welding material package which has streamlined the installation process by eliminating ignition materials. The tamper proof, integrated welding material package consists of a steel cup containing Cadweld patented welding material alloys and an ignition source. This newly shaped welding material  package is designed for use in all standard Cadweld molds, including Cadweld Multi. Once placed in the Cadweld mold, the welding material is electronically ignited using a simple battery-powered control unit with a six-foot lead.

The Cadweld Plus System:

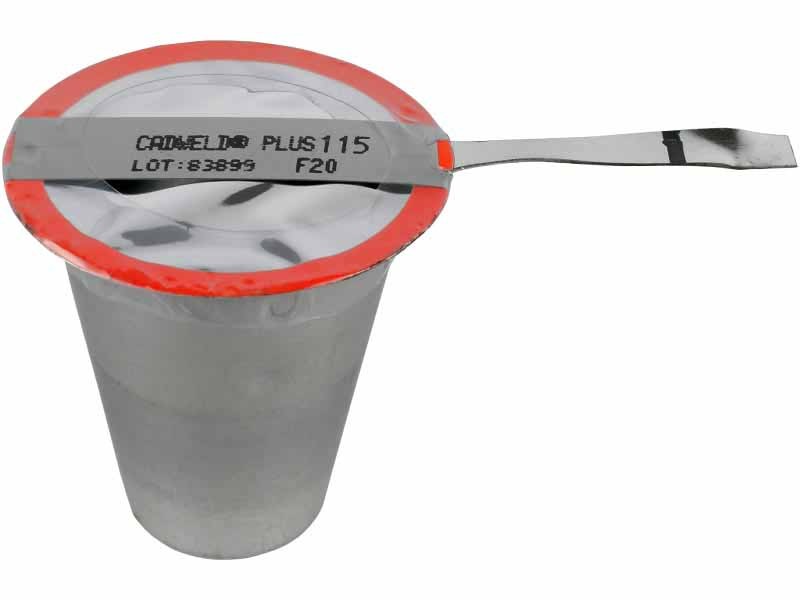

  • Consists of a tamper proof, disposable, moisture-resistant welding material cup. The welding material, disk and ignition source are incorporated into the self-contained package
  • Long shelf life
  • Completes welds at distances of up to 6 ft/1.8 meters (up to 15 ft/4.6 meters with optional lead)
  • Requires minimum components – no starting material, no disks, no flint igniters
  • Easy to handle, store and transport– by air, land or sea in unlimited quantities
  • Reduces installation time by 20%
  • Has color-coded welding material containers– by size and alloy type – for easy identification
  • Has electronic ignition with a CE/UL battery powered controller box that is designed for 600 connections with one set of 8 standard AA batteries (included) requiring no special batteries or chargers
  • Designed for use in standard Cadweld molds including Cadweld Multi

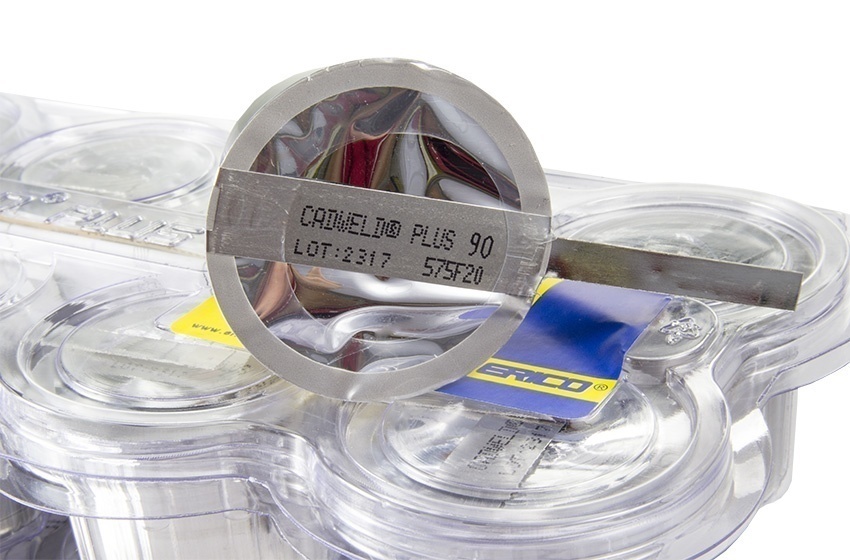

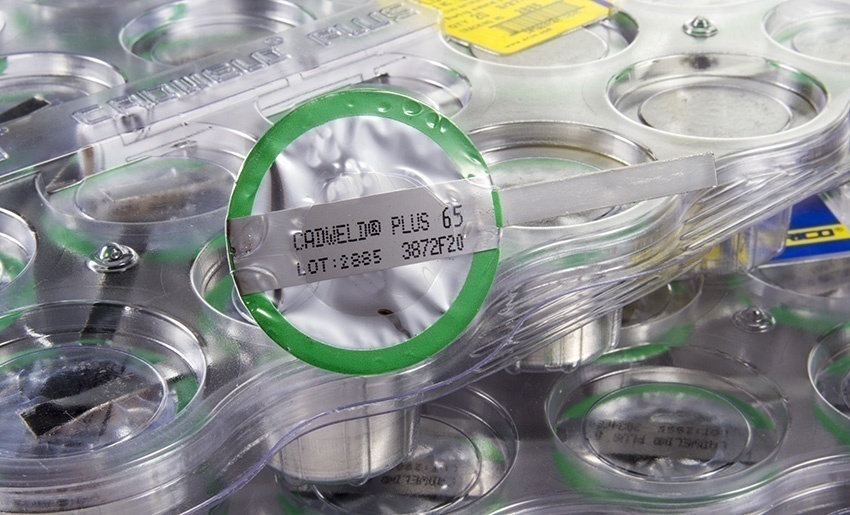

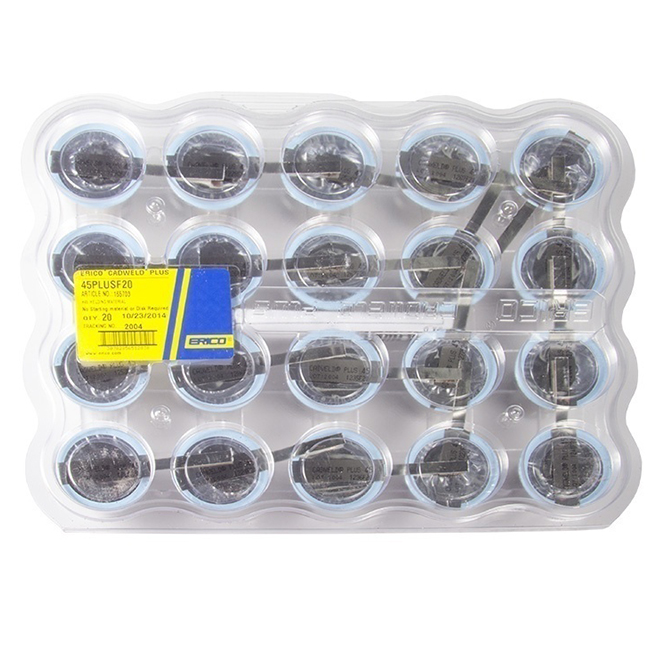

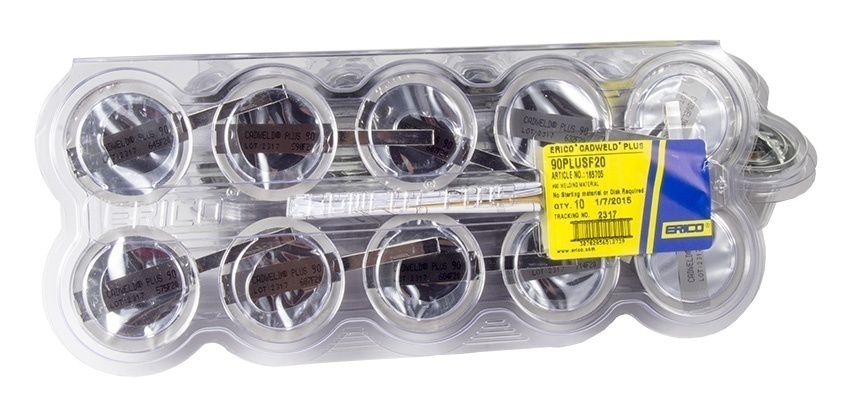

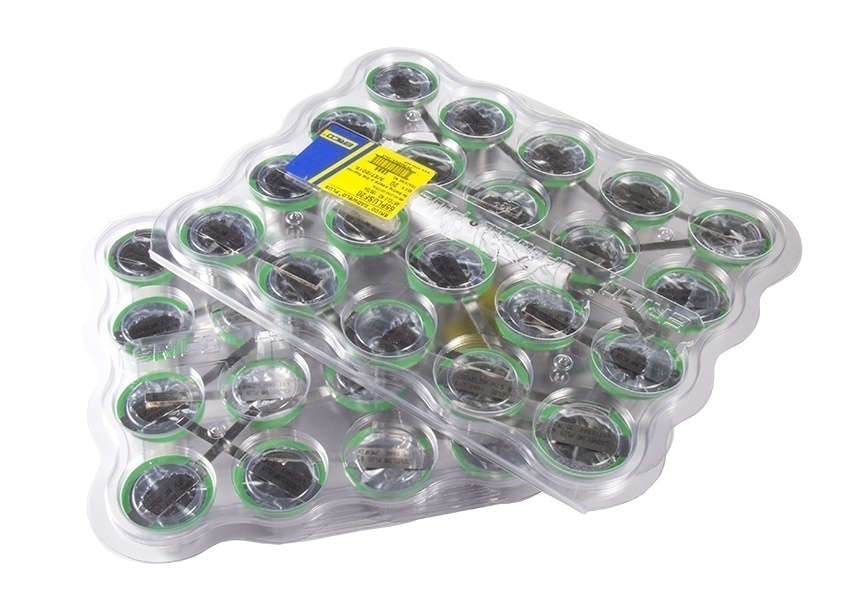

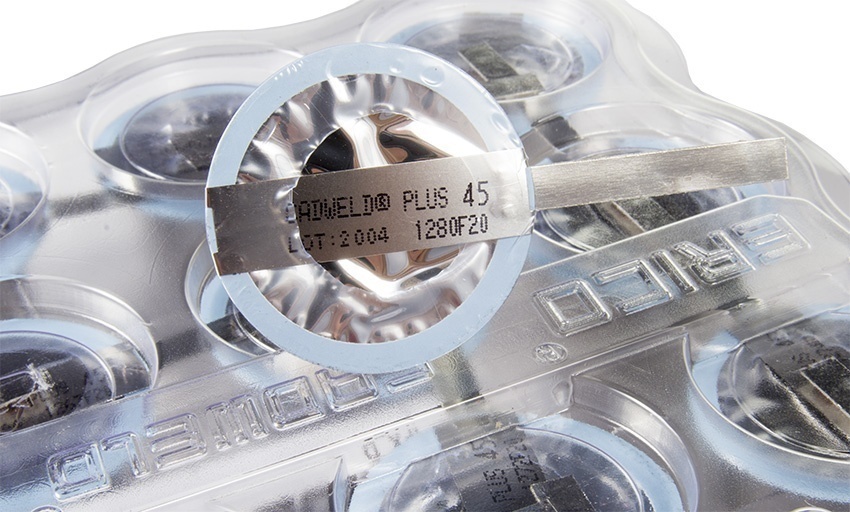

PART #WELD METAL
Ring ColorCASE QTY
#32PLUS-CASE#32White20
#45PLUS-CASE#45Light Blue20
#65PLUS-CASE#65Dark Green20
#90PLUS-CASE#90Gray10
#115PLUS-CASE#115Orange10
#150PLUS-CASE#150Dark Blue10
#200PLUS-CASE#200Yellow10
    Tell us what you think about this item!

    Product Description

    Cadweld Plus- The ultimate welded connection that will never loosen, corrode or increase in resistance.

    Continuing Erico's tradition of technical leadership, Cadweld Plus was developed as a simplified method of performing exothermically welded electrical connections.

    This trusted system features a new Cadweld Plus cup design for the integrated welding material package which has streamlined the installation process by eliminating ignition materials. The tamper proof, integrated welding material package consists of a steel cup containing Cadweld patented welding material alloys and an ignition source. This newly shaped welding material  package is designed for use in all standard Cadweld molds, including Cadweld Multi. Once placed in the Cadweld mold, the welding material is electronically ignited using a simple battery-powered control unit with a six-foot lead.

    The Cadweld Plus System:

    • Consists of a tamper proof, disposable, moisture-resistant welding material cup. The welding material, disk and ignition source are incorporated into the self-contained package
    • Long shelf life
    • Completes welds at distances of up to 6 ft/1.8 meters (up to 15 ft/4.6 meters with optional lead)
    • Requires minimum components – no starting material, no disks, no flint igniters
    • Easy to handle, store and transport– by air, land or sea in unlimited quantities
    • Reduces installation time by 20%
    • Has color-coded welding material containers– by size and alloy type – for easy identification
    • Has electronic ignition with a CE/UL battery powered controller box that is designed for 600 connections with one set of 8 standard AA batteries (included) requiring no special batteries or chargers
    • Designed for use in standard Cadweld molds including Cadweld Multi
    PART #WELD METAL
    Ring ColorCASE QTY
    #32PLUS-CASE#32White20
    #45PLUS-CASE#45Light Blue20
    #65PLUS-CASE#65Dark Green20
    #90PLUS-CASE#90Gray10
    #115PLUS-CASE#115Orange10
    #150PLUS-CASE#150Dark Blue10
    #200PLUS-CASE#200Yellow10
