Model#: 99552

Stock#: 262-99552



Brady Steel Lockout Padlocks

262-99552

$15.99

FREE SHIPPING OVER $75!
This item qualifies for Quick Ship. Quick ship items typically ship out the same day you order them as long as the order is placed before 6pm EST, Monday through Friday. Get it by Jun 26

  • Padlocks feature lightweight, nonconductive fiberglass-reinforced nylon bodies, hardened steel shackles, and tamper-resistant 6-pin cylinders
  • These lightweight padlocks comply with all OSHA requirements and offer superior temperature, chemical, and corrosion resistance
  • Non-conductive nylon padlocks are a safer alternative to metal locks for lockout applications

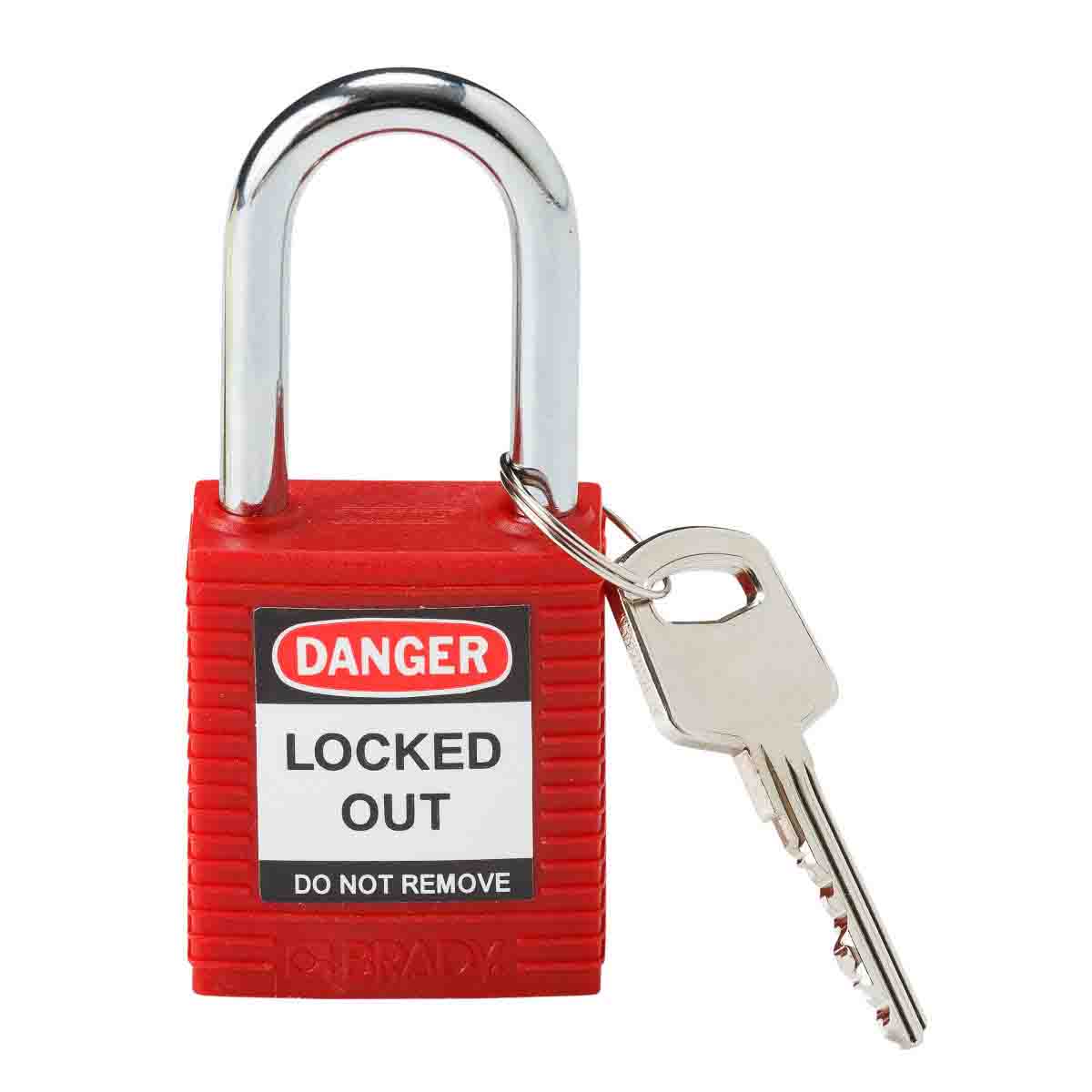

Brady Steel Lockout Padlocks

The Brady Steel Lockout Padlocks have nonconductive fiberglass-reinforced nylon bodies and unique key cylinders that prevent electricity from traveling from the shackle to the key.

Features:

  • Padlocks feature lightweight, nonconductive fiberglass-reinforced nylon bodies, hardened steel shackles, and tamper-resistant 6-pin cylinders
  • These lightweight padlocks comply with all OSHA requirements and offer superior temperature, chemical, and corrosion resistance
  • Non-conductive nylon padlocks are a safer alternative to metal locks for lockout applications
  • Reserved, paracentric keyway provides optimal security and the special design prevents the key from being released until the padlock shackle is closed

Specifications:

  • Applications: Electrical, Industrial Manufacturing, Lockout Tagout
  • UOM: Each
  • Country of Origin: China
  • HTS Code (Harmonized Tariff Schedule): 8301.10.6080
  • ECCN (Export Commodity Control Number): EAR99
  • Padlock Body Type: Standard
  • Depth: 0.8 in
  • Body Size: 1.75 in H x 1.5 in W x 0.82 in D
  • Shackle Diameter: 0.25 in
  • Material Properties: Anti-spark, Lightweight, Non-conductive
  • Padlock Body Material: Nylon/Steel
  • Color: Red
  • Service Temperature Range °F: 0 °F - 250 °F
  • Minimum Service Temperature °F: 0 °F
  • Minimum Service Temperature °F: 0 °F
  • Maximum Service Temperature °F: 250 °F
  • Shackle Coating/Finish: Triple-coated, Hardened
  • Conductivity: No
  • Application: Lockout Tagout
  • Key Mechanism: Standard Pin Tumbler
  • Key Option: Keyed Different
  • Key-Retaining: Yes
  • Maximum Number of Different Keycodes: 15000
  • Number of Pin Tumblers: 6
  • Shackle Horizontal Clearance: 0.8 in
  • Shackle Vertical Clearance: 1.5 in
  • For Use With: Equipment Lockout
  • Header: DANGER
  • Text Legend: DANGER LOCKED OUT DO NOT REMOVE
  • Text Language: English, French, Spanish
  • Includes: (1) English Labels, (1) French Labels, (1) Keys, (1) Padlocks, (1) Spanish Labels
  • Number of Keys Included: 1
  • Number of Labels Included: 3
  • UNSPSC: 46171501
  • California Prop 65 : Prop 65WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • RoHS Compliance Status: Not applicable to this product

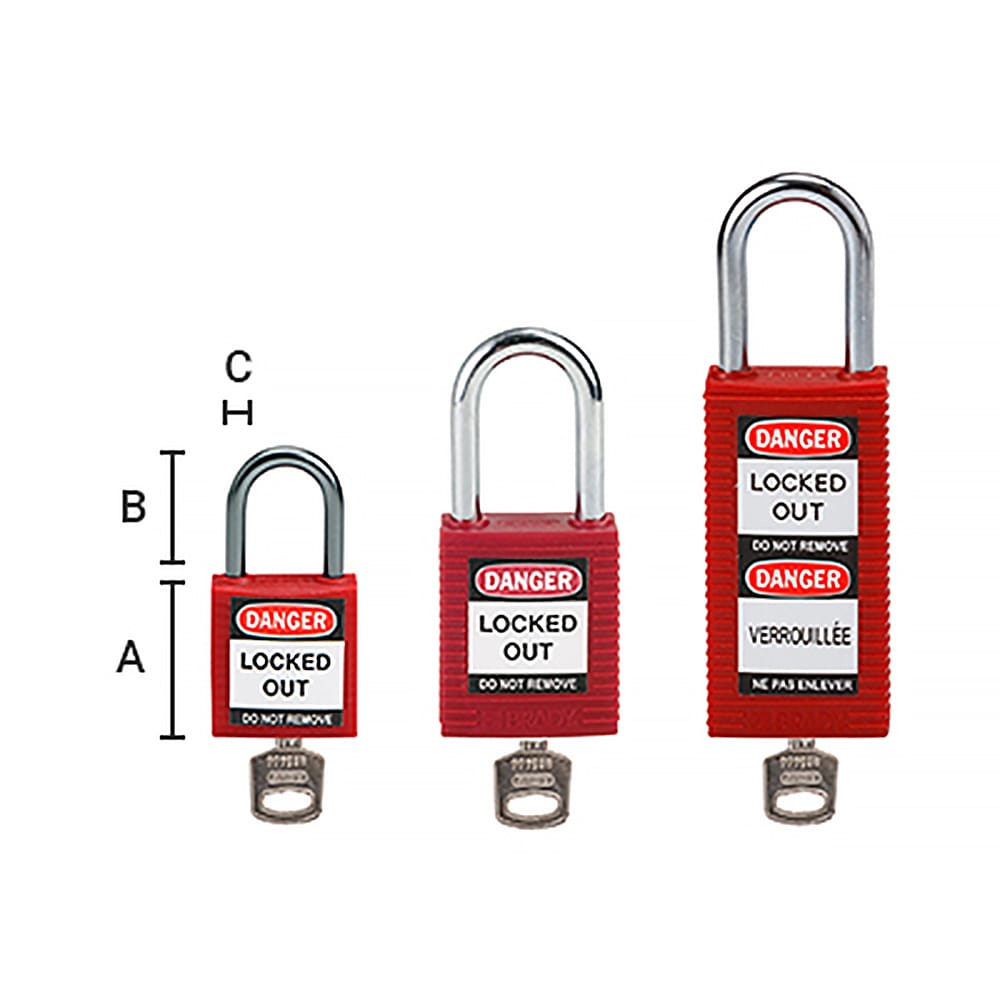

Padlock Size Comparison:

  Compact Padlocks Standard Padlocks Long Body Padlocks
A. Body (HxW)

1.4 x 1.2 in.

(35.6 x 30.5 mm)

1.75 x 1.50 in.

(44.5 x 38.1 mm)

3.0 x 1.50 in.

(76.2 x 38.1 mm)

B. Shackle Clearance 1.00 in. / 25.4 mm 1.50 in. / 38.1 mm 1.50 in. / 38.1 mm
C. Shackle Diameter 0.17 in. / 4.3 mm 0.25 in. / 6.4 mm 0.25 in. / 6.4 mm

262-99552
Color: Red
Components/Pieces: 1
Country of Manufacture: China
Dimensions: 1.75 in H x 1.5 in W x 0.82 in D
Manufacturer: Brady
Material: Steel
Temperature: 0 °F - 250 °F
Weight: 1.00
