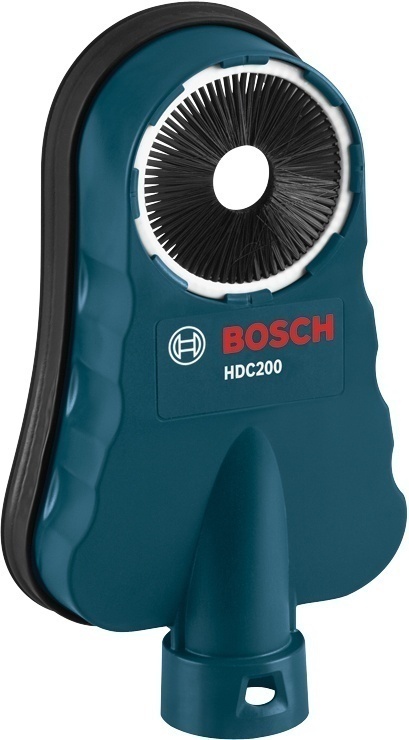

Bosch Universal Dust Collection Attachment

The Bosch Universal Dust Collection Attachment is a flexible dust collection attachment for SDS-plus and SDS-max hammers for drilling into concrete. This attachment is optimized for drilling diameters from 5/8 to 1-3/8 inches but can accommodate up to 2-1/2 inches if the brush ring is removed. The attachment features two unique air chambers: one allows the drilling bit to pass through when drilling into the work surface. The second air chamber is designed to maintain suction to the wall during the drilling application. The dust port is designed for Bosch 1-3/8 inch vacuum nozzles but can be used with either 1-1/4 or 2 inch vacuum nozzles when used with the an adapter. The system is universal and is designed to connect to a vacuum so that it can be used with any size hammer and can accommodate the full range of drill bit diameters and drilling depth.

Features:

Specifications:

• Height: 3 in.
• Length: 8 in.
• Material: Plastic
• Max Bit Diameter: 2-5/8 in.
• Max Hole Diameter: 2-5/8 in.
• Weight: 0.7 lbs.

Includes:

• (1) Chiseling Dust Collection Attachment
• (3) Adapter Pieces
• (1) Extension Tube
