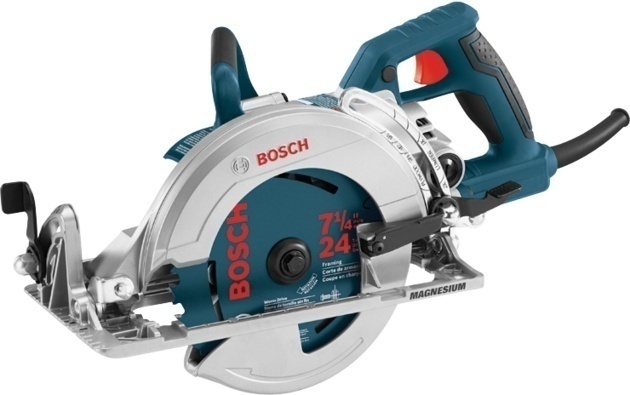

Bosch 7-1/4 Inch Worm Drive Saw
The Bosch 7-1/4 Inch Worm Drive Saw system features an enormous gearing ratio in a compact size for tremendous power in a manageable package. This saw model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. The Worm Drive Saw also has easily serviceable brushes, large adjustment levers, a spindle lock, and a built-in saw hook for easy storage between tasks. This saw also features a soft grip handle for your comfort, control, and accuracy.
Features:
- Lightweight magnesium motor housing and foot plate
- Built-in saw hook
- Featherboard multi-function wrench
- Accurate depth of cut system allows for quick accurate adjustment
- Left side blade design for unmatched clarity of cut line
- Anti-snag lower guard - provides smooth operation for small cut-off pieces
- Soft-grip handles for comfort and control
- Large adjustment levers for fast, accurate bevel and depth adjustments
- Easy access spindle lock for easy blade changes
Includes:
- CSW 41 7 1/4 Magnesium Worm Drive
- (1) Multi-Function Blade Wrench
- (1) Carbide Blade
- Built-in Saw Hook
Specifications
- 53° bevel capacity with positive detent stop at 45°
- 15 amp motor
- Arbor size: Diamond
- Blade Diameter: 7 inch
- Blade Size: 7 1/4 inch
- Cut Depth: 2 3/8 inch
- No case included
- Height: 9 inch
- Length: 20.75 inch
- Max Depth of Cut at 45 degrees: 1 15/16 inch
- Max Depth of Cut at 50 degrees: 1 13/16 inch
- Max Depth of Cut at 90 degrees: 2 3/8 inch
- Rating: 120 V
- Voltage 120 V
