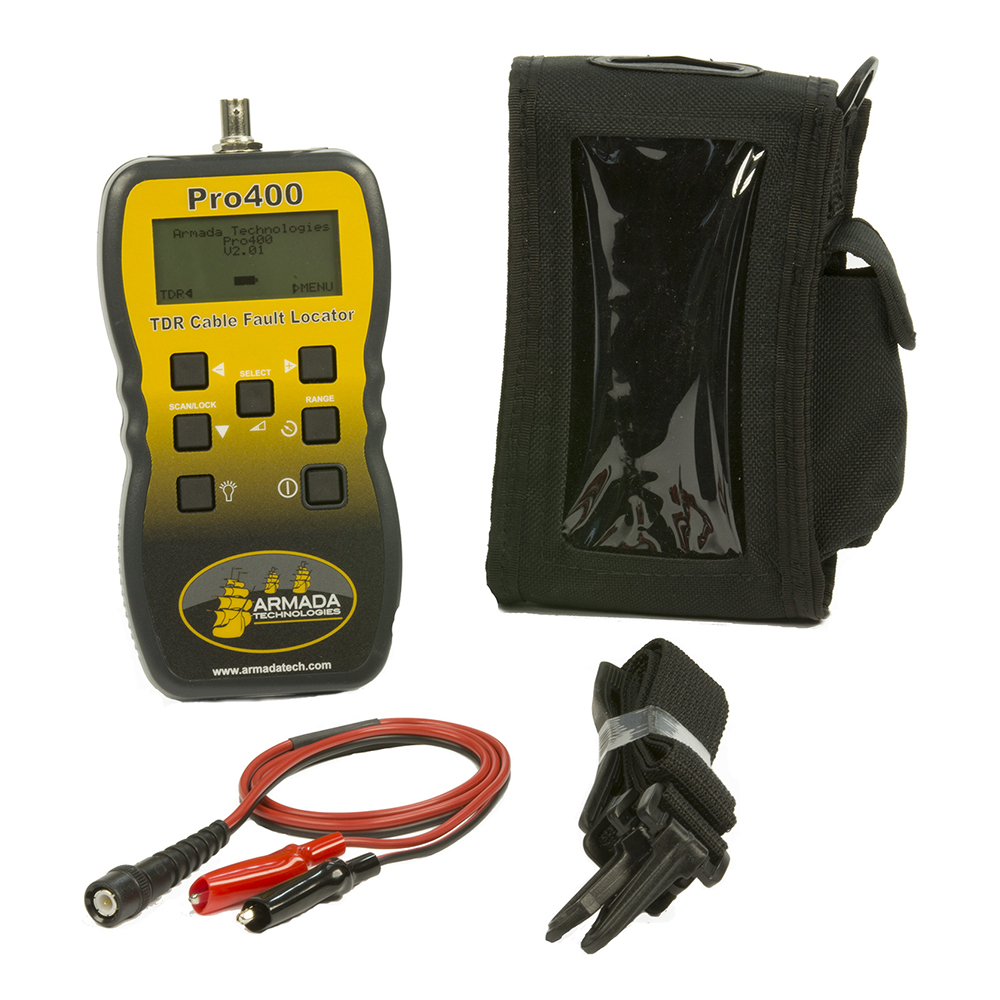

Armada Technologies Graphical TDR/Tone Cable and Fault Locator

• Identifies Cable Lengths and Faults up to 6,500 feet.
• Operates with 25, 50, 75, or 100 ohm Cables.
• Adjustable display range and gain.
• Transmits Tracing Tone.
•  Small (2 Foot) Dead Zone.
•  Compact and Lightweight (less than 1 pound).
•  Weather and Dust Tight to IP54 Standard.
•  Backlit LCD Display with 3-Minute Automatic Off.
•  Uses Four (4) ‘AA’ Batteries (included).
•  Complete with Leads and Carrying Case.



The Pro400 Graphical TDR is a great tool for locating faults in metallic cables with 2 or more conductors. Twisted pair, coax, LAN cabling, 2-wire irrigation control cable, etc. are simple to test for distances to shorts, opens, etc.

By connecting the leads to the cable to test a graphical display quickly and clearly shows faults and ‘events’ on that cable along with the distance. In addition, the Pro400 transmits a standard analog tracing tone for use with common tone probes to find the termination point of a cable.

Features of the Pro400 include backlit display, auto off, calibration of Vp from 20 to 99%, 3 cable impedance level options, an extremely small 2 foot dead zone, and water/dust protection.

The Pro400 is a big bang-for-the-buck product.
