Home > Anritsu PIM Master with Frequency Options

Model#: C-ASU-MW82119B

Stock#: C-ASU-MW82119B

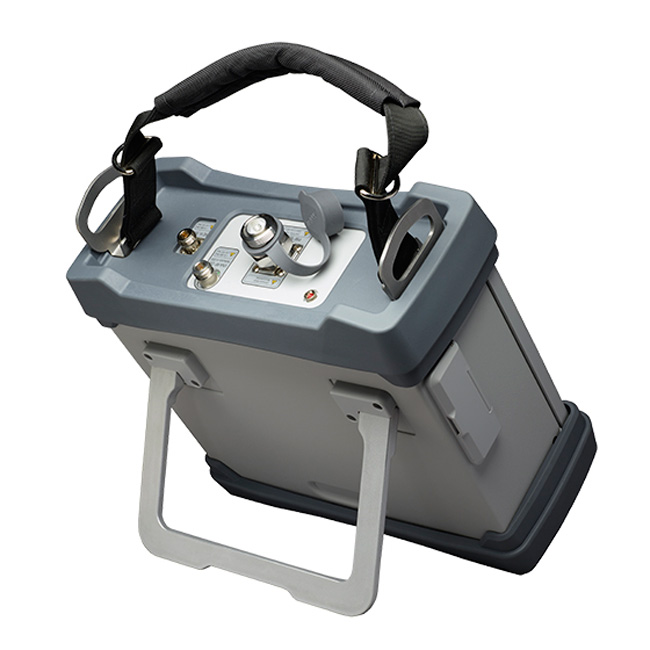

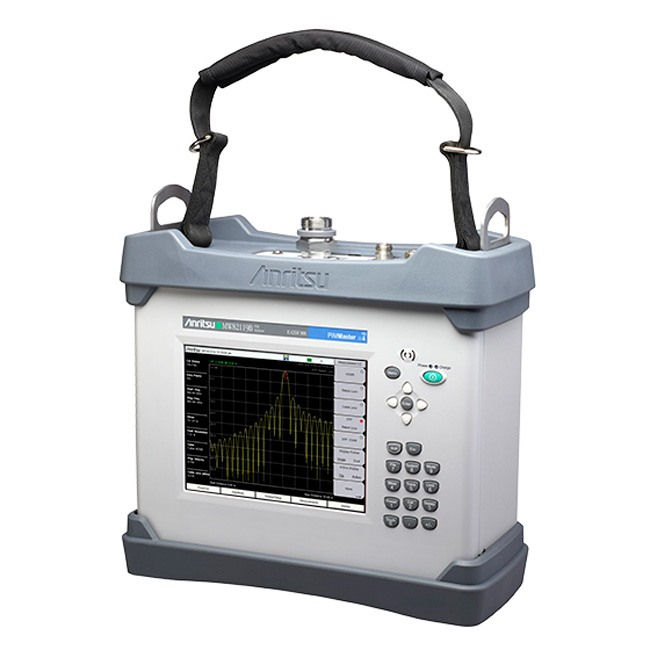

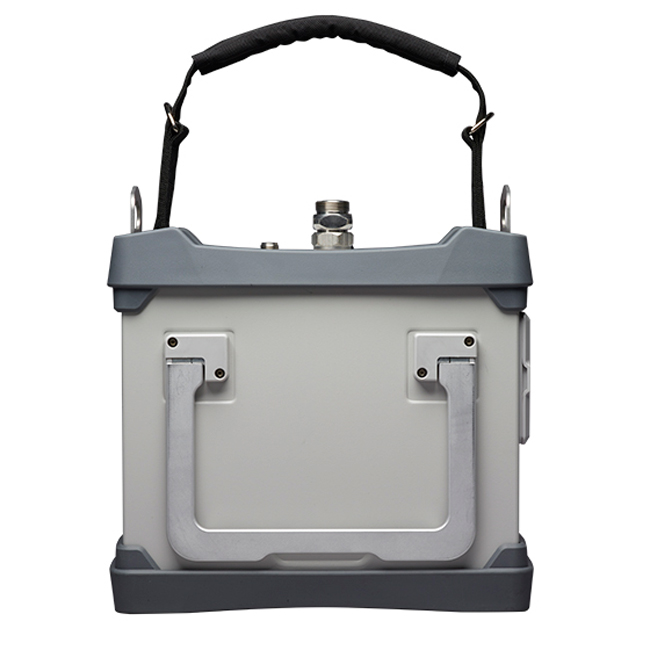

Anritsu PIM Master with Frequency Options

Multiple Options Available

$28,609.99 to $33,058.99

Please select an option below

Reading Type *

Anritsu PIM Master with Frequency Options


  • Passive Intermodulation (PIM) Analyzer
  • PIM vs. Time, Swept PIM, Distance-to-PIM, Noise Floor
  • Battery-Operated: approximately 3 hour
  • 20 dBm (0.1 Watt) to 46 dBm (40 Watt)
  • Field-proven design: Rugged, compact, daylight viewable display
  • Compatible with SweepMasters SkyBridge Tools cloud-based trace management tool
  • Standard three-year warranty (battery one-year warranty)

PIM Analyzer Measurements:

  • PIM vs. Time
  • Swept PIM
  • Distance-to-PIM (DTP)
  • Noise Floor

Available Options:

  • MW82119B
    • The base includes PIM Master Passive Intermodulation Analyzer (included with a choice of an option)
  • MW82119B-0194
    • PCS/AWS 1900/2100 MHz
  • MW82119B-0700
    • LTE 700 MHz (North America, Upper, and Lower)
  • MW82119B-0800
    • LTE 800 MHz
  • MW82119B-0850
    • Cellular 850 MHz

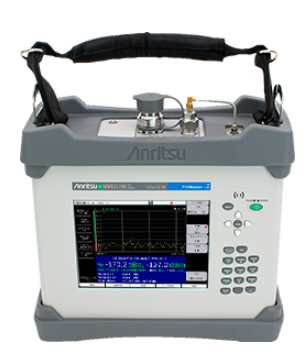

  • MW82119B-0703
    • 2 Port 700 MHZ
    • Includes Port PIM Loop Cable assembly
    • With the MW82119B-0703, you can conduct highly accurate PIM measurements and troubleshoot in the FirstNet Band 14 and Band 17 spectrum for co-located sites. By offering separate RF outputs for each of the two CW tones, the two-port PIM Master is fully compliant with the Method of Procedure (MoP) used for testing the FirstNet network.

Need assistance with choosing the option that is right for you or don't see the option you need reach out to our gear experts!

PIM Master B-series is a 40 Watt, battery-operated PIM analyzer featuring Site Master line sweep capability. With the Site Master option included, the PIM Master is able to fully certify cable and antenna system performance, measuring PIM, Distance-to-PIM, Return Loss, VSWR, Cable Loss and Distance-to-Fault with a single test instrument.

PIM Master includes a large, outdoor viewable display and intuitive user interface that is optimized for field conditions. PIM Master’s rugged design and enhanced portability enable both PIM and line sweep testing at the “top-of-the-tower,” helping operators to achieve maximize RF performance from their LTE Remote Radio Head (RRH) installations.

Cable and antenna systems are a critical link in any wireless communications network. The quality of the components deployed and the care in which they are installed has a significant impact on network performance, site reliability and ultimately, customer satisfaction. To operate at maximum potential, the cable and antenna system must pass RF signals between mobile subscribers and the BTS as efficiently as possible (minimum loss, minimum reflections), and without generating unwanted noise (Passive Intermodulation).

Manufacturer: Anritsu
