Home > Anritsu Calibration Kit with Case, Type 4.3-10, DC to 6 GHz, Male

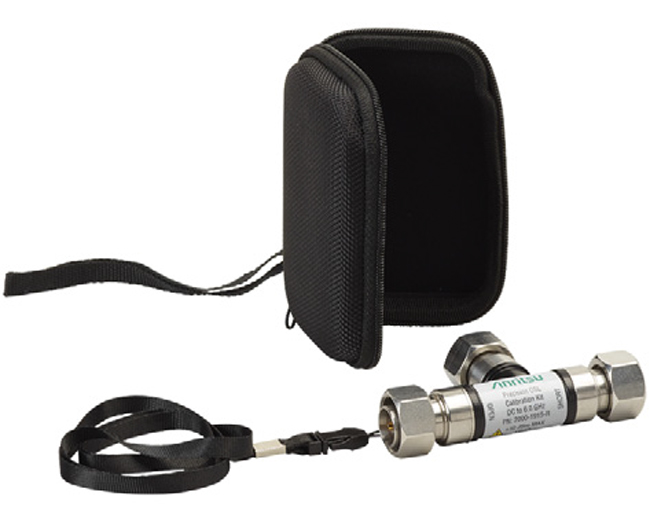

Anritsu Calibration Kit with Case, Type 4.3-10, DC to 6 GHz, Male

ASU-2000-1915-R
Direct Ship Ships in: 1+ month
FREE SHIPPING OVER $75!

$1,605.00


Anritsu Calibration Kit with Case, Type 4.3-10, DC to 6 GHz, Male

Specifications:

OPEN

Specification

Length

24.23 mm

C0 (1E-15) F

10.0

C1 (1E-27) F/Hz

7.0

C2 (1E-36) F/Hz²

540.0

C3 (1E-45) F/Hz³

75.0

Phase (DC to 6 GHz)

≤ ± 2.0°



Short

Specification

Length

24.23 mm

L0 (1E-12) H

35.0

L1 (1E-24) H/Hz

7100.0

L2 (1E-33) H/Hz²

5800.0

L3 (1E-42) H/Hz³

740.0

Phase (DC to 6 GHz)

≤ ± 2.0°



Load

Specification

DC Resistance

50 Ω± 0.5 Ω

Return Loss (DC to 2.5 GHz)

≥ 40 dB

≥ 2.5 GHz to 6 GHz

≥ 38 dB

Max Power

1.0 W



The Anritsu 2000-1915-R Calibration Kit comes in a male connection and measures specifications from DC to 6 GHz. The calibration device is manufactured to Anritsu's extremely high standard which makes your life easier to confirm the job is done right. This high precision component when handled with proper care gives you the most accurate readings. With a wide operating temperature, this device is ready to test your work when you are.



ASU-2000-1915-R
Length: Open: 24.23 mm
Short: 24.23 mm
Manufacturer: Anritsu
Type: 4.3-10 | Male
