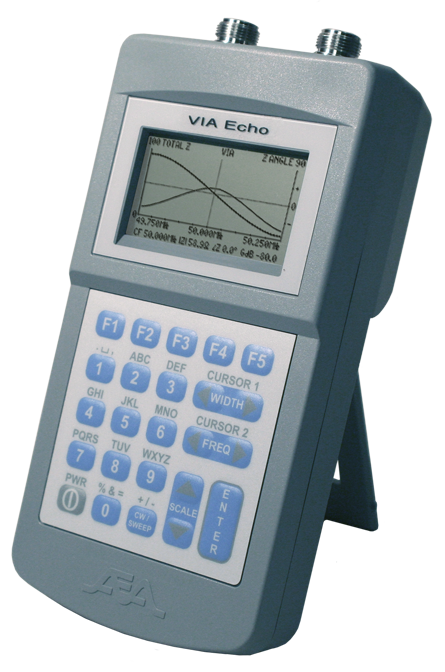

AEA Technology VIA Echo Vector Network Analyzer

The AEA Technology VIA Echo Vector Network Analyzer provides digital measurements and graphical sweep displays of impedance, RF power gain, or cable quality. The Echo Analyzer is a handheld vector impedance analyzer, spectrum analyzer, frequency domain reflectometer, and power meter for measuring antennas, networks, and cables. The Echo PC Vision software application, included with the VIA Echo, provides the user with the capability of remotely operating the VIA Echo through a USB port and view near realtime results or Echo’s stored tests on a PC. PC Vision provides color Cartesian and Smith Charts of vector plot data. The PC Vision software makes the capture, storage, and printing of documentation and reports easy.

VIA Echo 1000 Features:

• 4MHz-to-1.0GHz Vector Network Analyzer
• Testing Includes: SWR, Resistance, Return Loss, Gamma Magnitude, Vectored Impedance, Gamma Angle, Phase Angle, Linear Gain or Loss, Reactance, Log Gain or Loss
• Included items: Belt Case, Operation Manual, Quick Start Guide, 8 NiMH AA batteries, AC Adapter, USB Cable, Echo PC Vision Software, N Male Termination Kit (short/50Ω load) and Soft Equipment Case.

VIA Echo 1000SF Features:

• 4MHz-to-1.0GHz Vector Network Analyzer, Sprectrum Analyzer, Power Meter, and Frequency Domain Reflectomer (FDR) in one instrument.
• Testing Includes: SWR, Linear Gain or Loss, Return Loss, Log Gain or Loss, Vectored Impedance (Z), Spectrum Analyzer with Phase Angle, Power Meter-analog and digital, Reactance. Frequency Domain Reflectometer (FDR), Resistance, Gamma Magnitude, Gamma Angle
• Included items: Belt Case, Operation Manual, Quick Start Guide, 8 NiMH AA batteries, AC Adapter, USB Cable, Echo PC Vision Software, N Male Termination Kit (short/50Ω load) and Soft Equipment Case.

VIA Echo 2500 Features:

• 4MHz-to-2.5GHz Vector Network Analyzer, Sprectrum Analyzer, Power Meter, and Frequency Domain Reflectomer (FDR) in one instrument.
• Testing Includes: SWR, Linear Gain or Loss, Return Loss, Log Gain or Loss, Vectored Impedance (Z), Spectrum Analyzer with Phase Angle, Power, Meter-analog and digital, Reactance, Frequency Domain Reflectometer (FDR), Resistance, Gamma Magnitude, Gamma Angle
• Included items: Belt Case, Operation Manual, Quick Start Guide, 8 NiMH AA batteries, AC Adapter, USB Cable, Echo PC Vision Software, N Male Termination Set (open/short/50Ω) and Soft Equipment Case.

Available Options:

• VIA Echo 1000 (6025-5100)
• VIA Echo 1000SF (6025-5150)
• VIA Echo 2500 (6025-5250)
