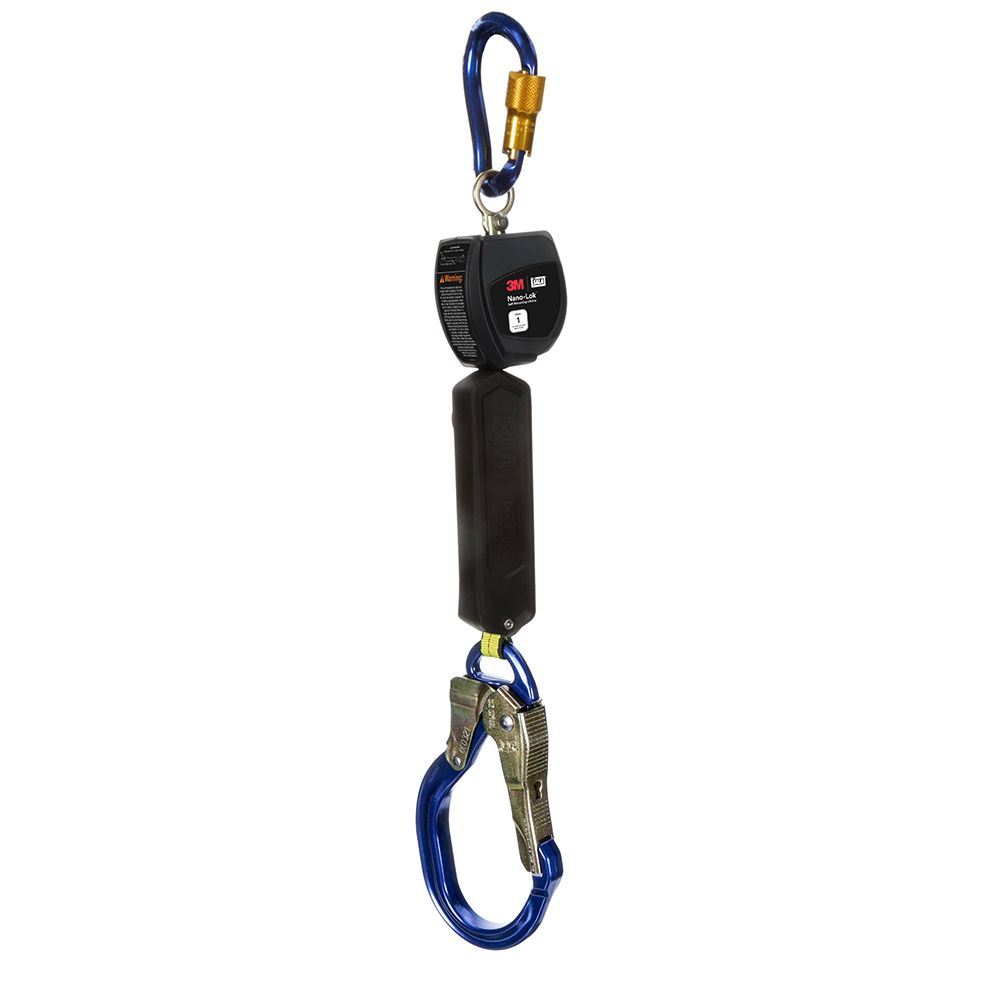

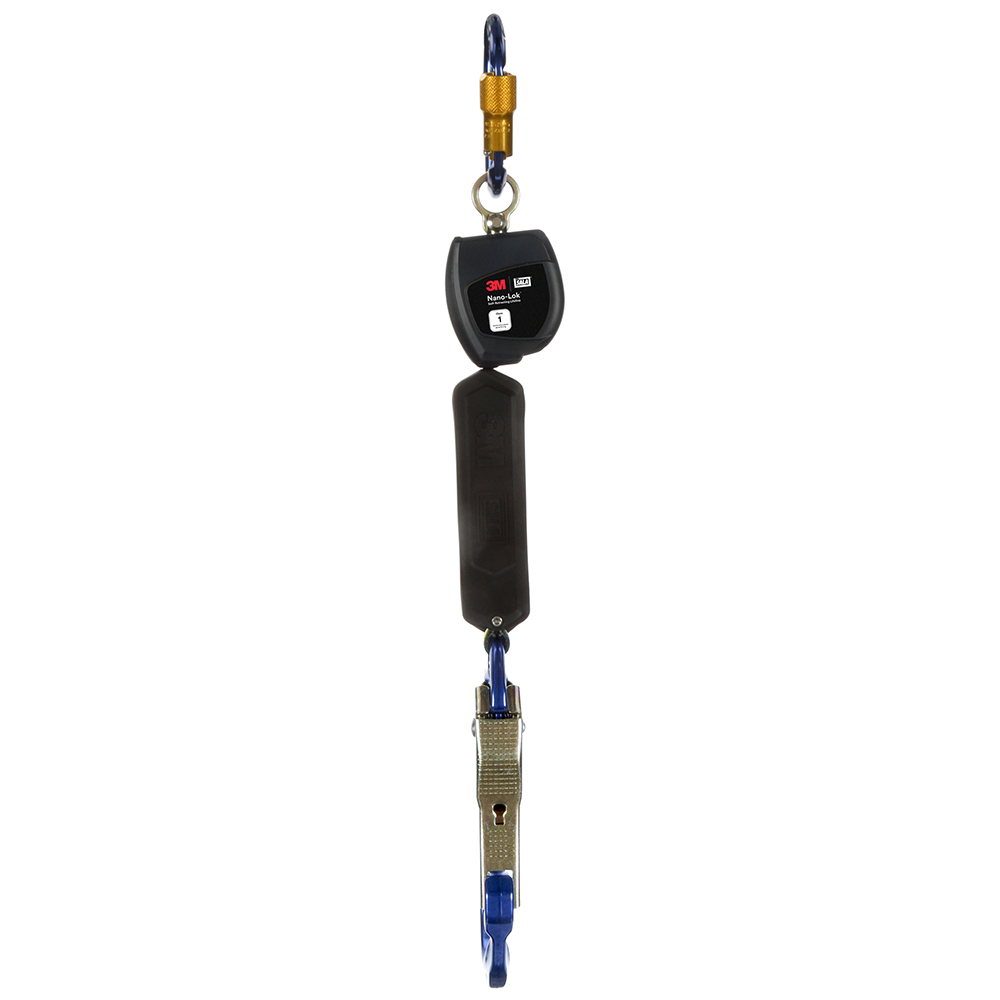

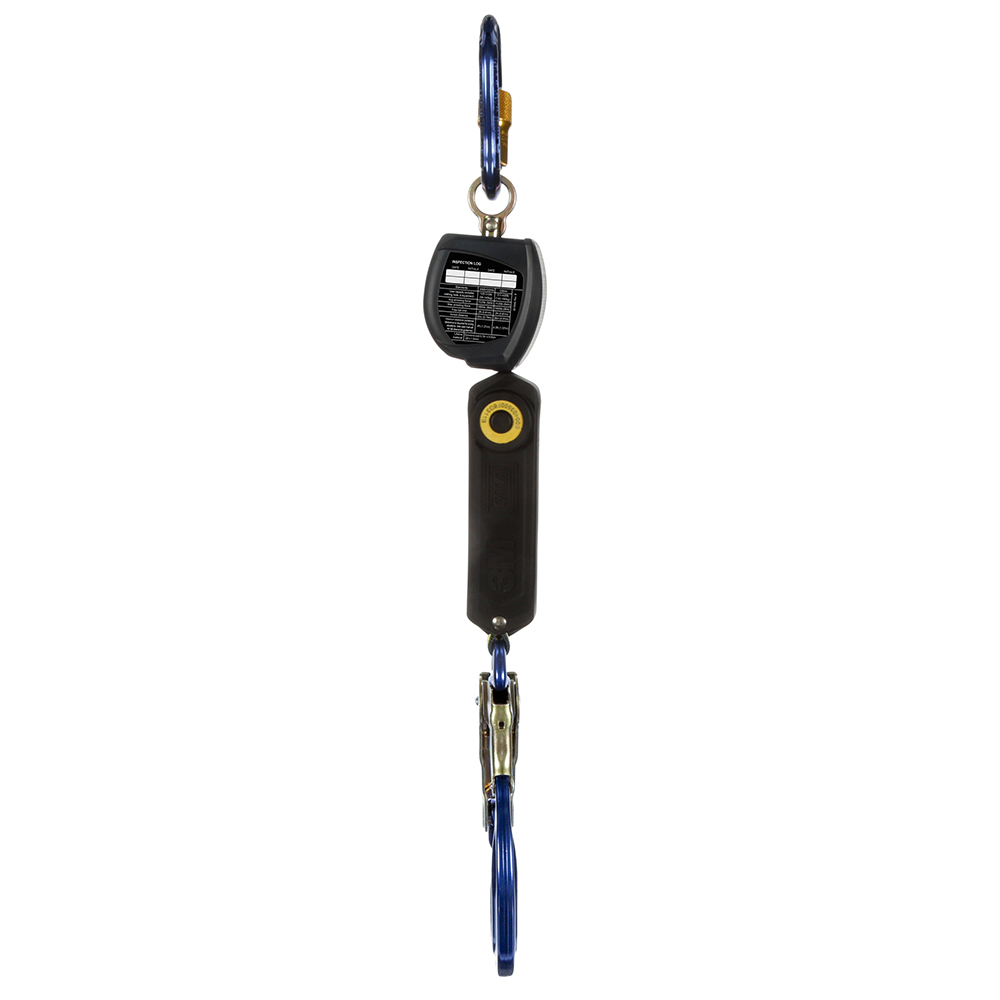

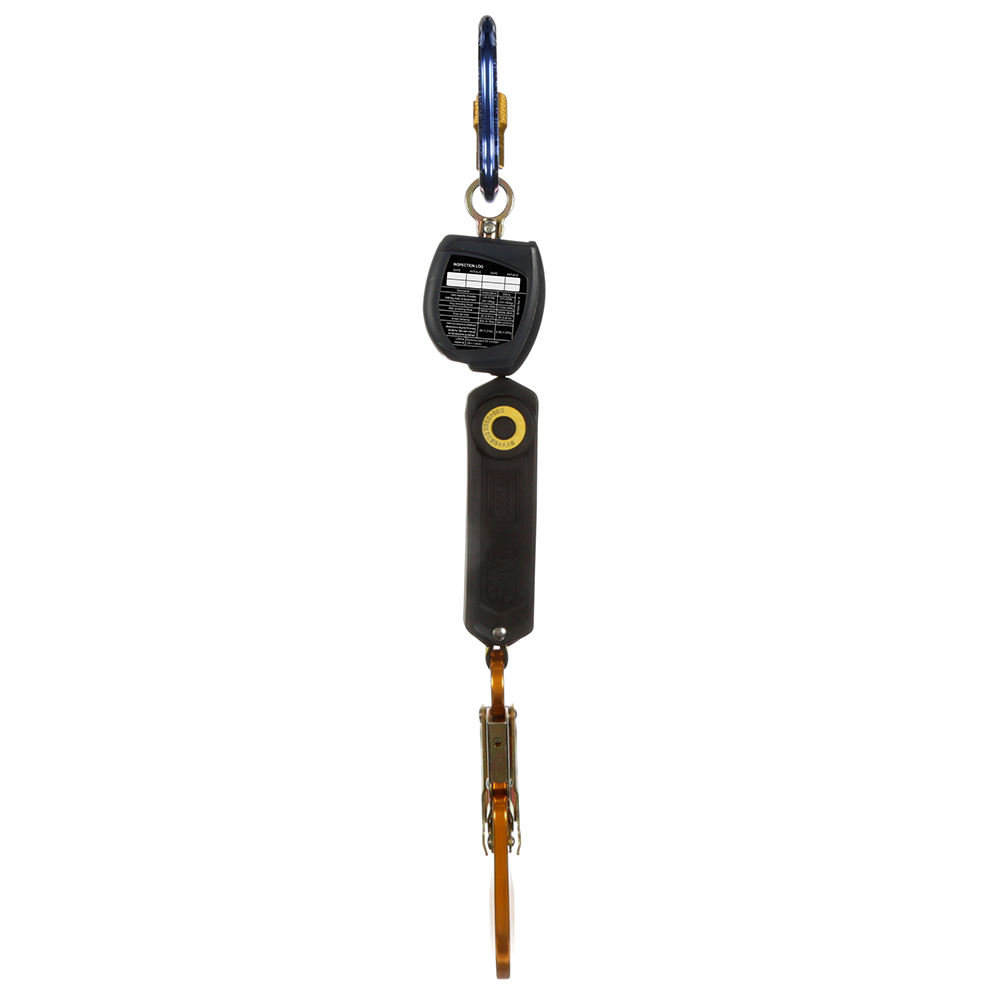

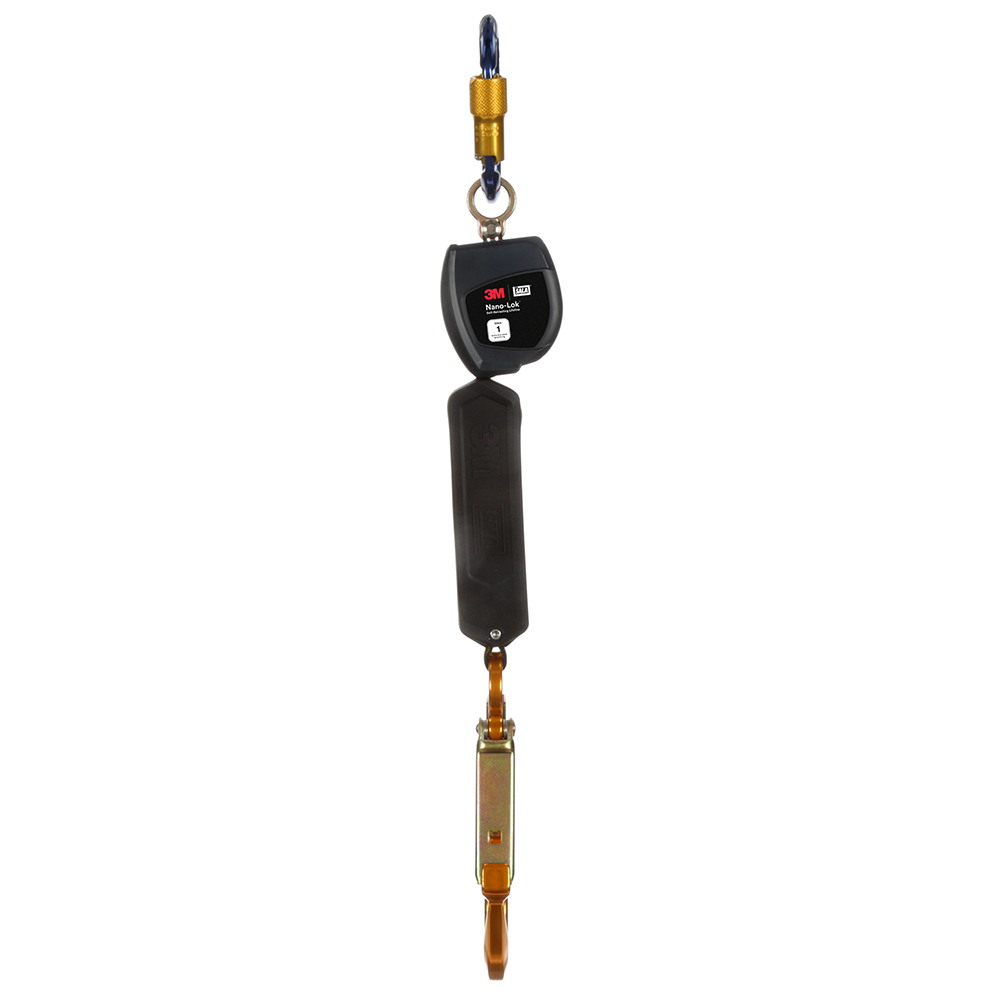

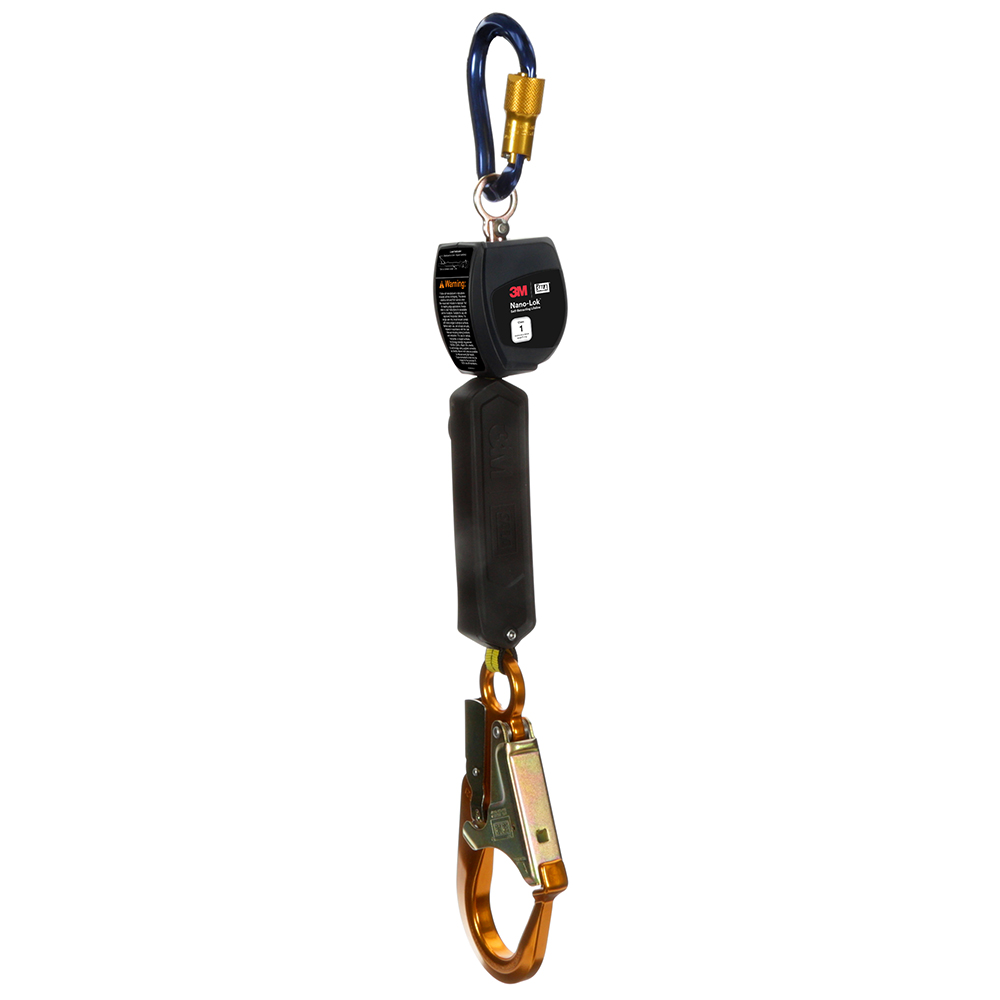

3M DBI-SALA Class 1 Overhead Mount with Anchor Hook Nano-Lok Personal Self-Retracting Lifeline with Aluminum Rebar Hook
3M DBI-SALA Nano-Lok Self-Retracting Lifeline (SRL) with Anchor Hook is designed for ease of use and is ideal for direct connection to most harnesses. Focusing on strengthening the worker's comfort and safety as the highest priorities, the 3M DBI-SALA Nano-Lok Personal Self-Retracting Lifeline with Anchor Hook combines lightweight design with industrial-strength durability and function.
Whether the application requires single or twin-leg configurations, mounting to an overhead anchor, or connection directly to a harness, there are numerous fall protection models to choose from to suit almost any application. 3M DBI-SALA Nano-Lok Self-Retracting Lifeline (SRL) with Anchor Hook's smart activating brake system achieves fall clearance as low as 4 feet while stopping a fall within inches and providing more protection at low heights. In addition, tension is always kept on the lifeline helping to reduce dragging, snapping, and trip falls. These features are key safety improvements and provide the user with the comfort and support required to get the job done right.
Features:
- Swiveling anchorage loop with carabiner
- Quick activating speed sensing brake system
- Self-locking snap hook on lifeline
- Compact & lightweight design
- Durable thermoplastic housing
- High-capacity external energy absorber and impact indicator
- RFID equipped and compatible with the inventory management system
- Available in multiple styles and configurations
Specifications:
- ANSI Class Level: Class 1

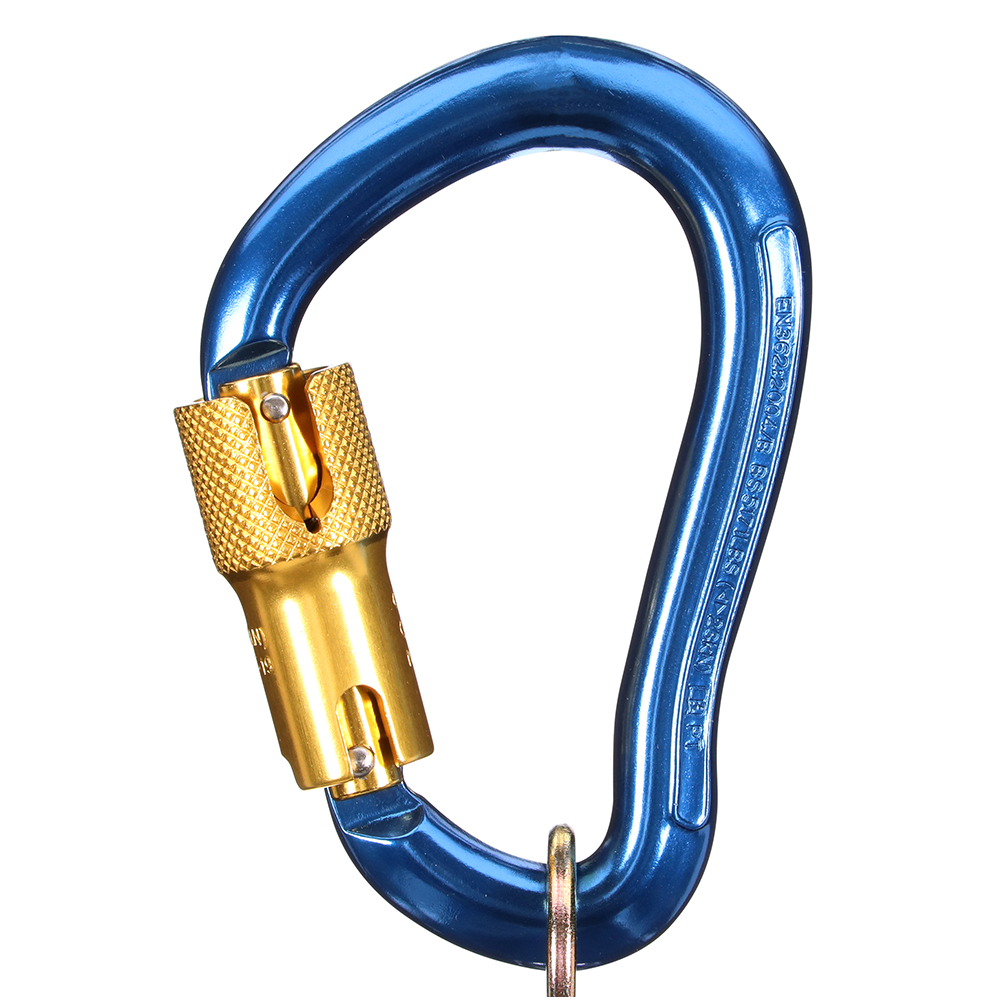

- Anchor Connection Type: Carabiner
- Anchor Hook Material: Aluminum
- Anchor Hook Material: Aluminum
- Average Arrest Force (Imperial): 1125 lbf (ANSI), 1125 lbf (OSHA 130 lb - 310 lb)
- Average Arrest Force (Metric): 5 kN (ANSI), 5 kN (OSHA 130 lb - 310 lb)
- Connected Safety ID Equipped: Yes
- Housing Material: Nylon Thermoplastic
- Housing Type: Thermoplastic
- Install Type: Portable & Removable
- Leg Count: Single-Leg

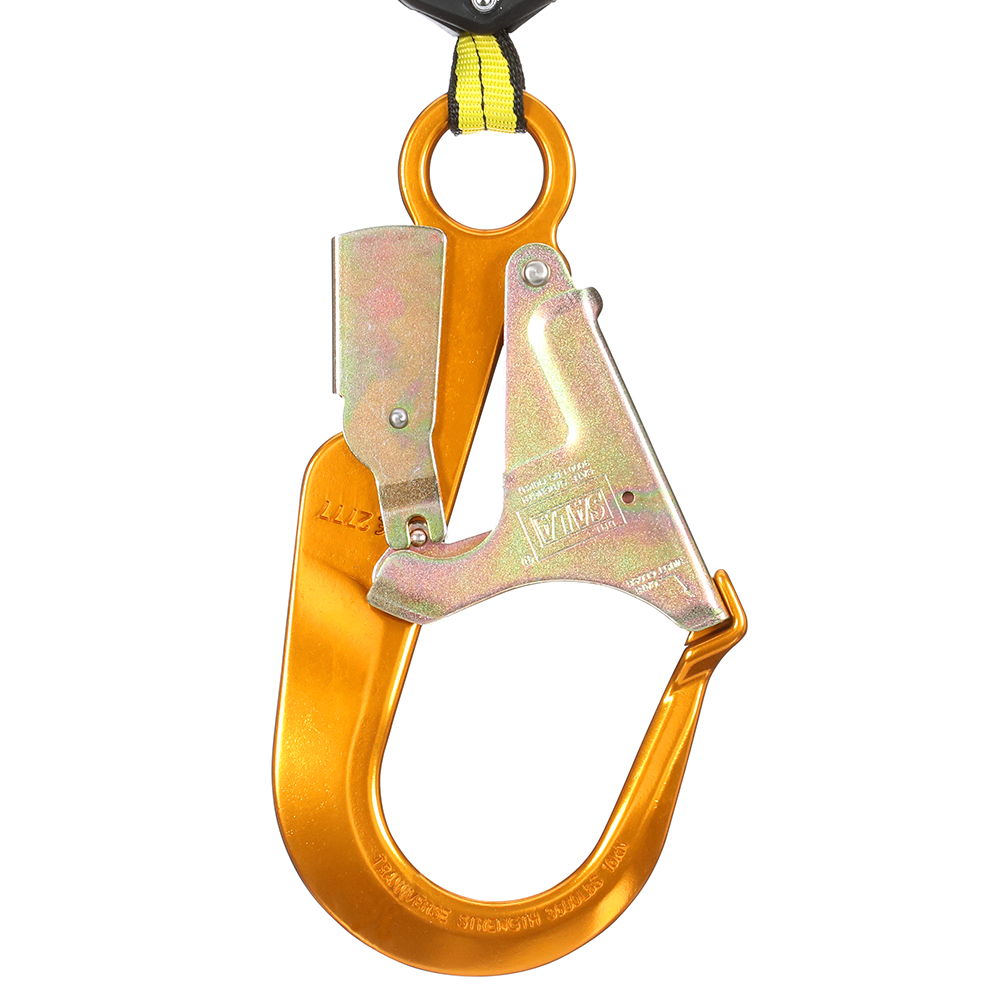

- Lifeline Connection Type: Rebar Snap Hook
- Lifeline Hook Material: Aluminum
- Lifeline Length (Imperial): 6 ft
- Lifeline Length (Metric): 1.8 m
- Lifeline Material: Web
- Maximum Arrest Force (Imperial): 1800 lbf (ANSI), 1800 lbf (OSHA 130 lb - 310 lb)
- Maximum Arrest Force (Metric): 8 kN (ANSI), 8 kN (OSHA 130 lb - 310 lb)
- Maximum Number of Users: One
- Mounting Type: Overhead Anchor Point
- Overall Length (Imperial): 6 ft
- Overall Length (Metric): 1.83 m
- Product Color: Blue
- Product Series: Nano-Lok
- Product Type: Self-Retracting Lifeline with Anchor Hook - Web
- Recommended Industries: Construction, Metal Fabrication, Manufacturing, Mining, Oil & Gas, Industrial, Utility, Transportation, Renewable, Wind Energy, General Industrial, Utilities, Automotive, Warehousing, Pharmaceutical, General Manufacturing, Maintenance, Military Maintenance, Repair & Operation (MRO), General Industry, Metal Production & Fabrication
- Specifications Met: 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, ANSI/ASSP Z359.14-2021
- Weight (Imperial): 2.403 lb.
- Weight (Metric): 1.089 kg
- Weight Capacity (Imperial): 420 lb.
- Weight Capacity (Metric): 190 kg
