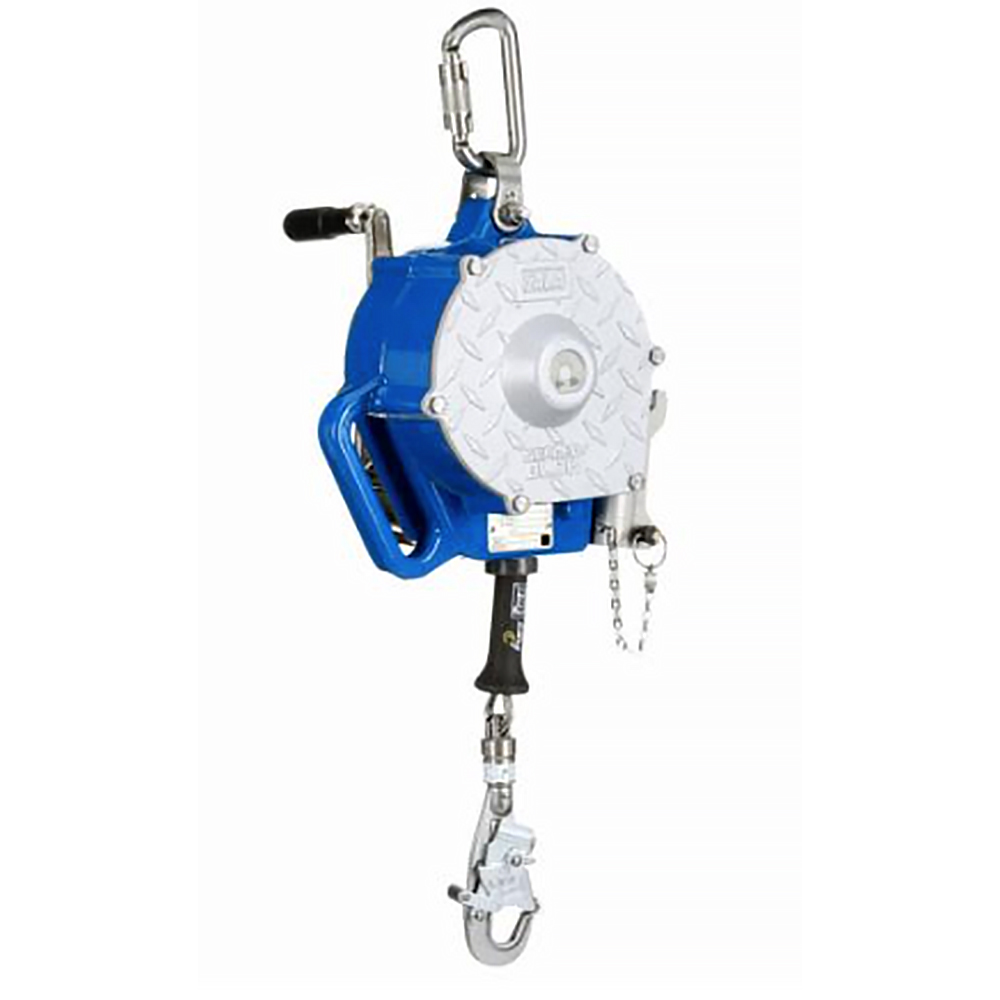

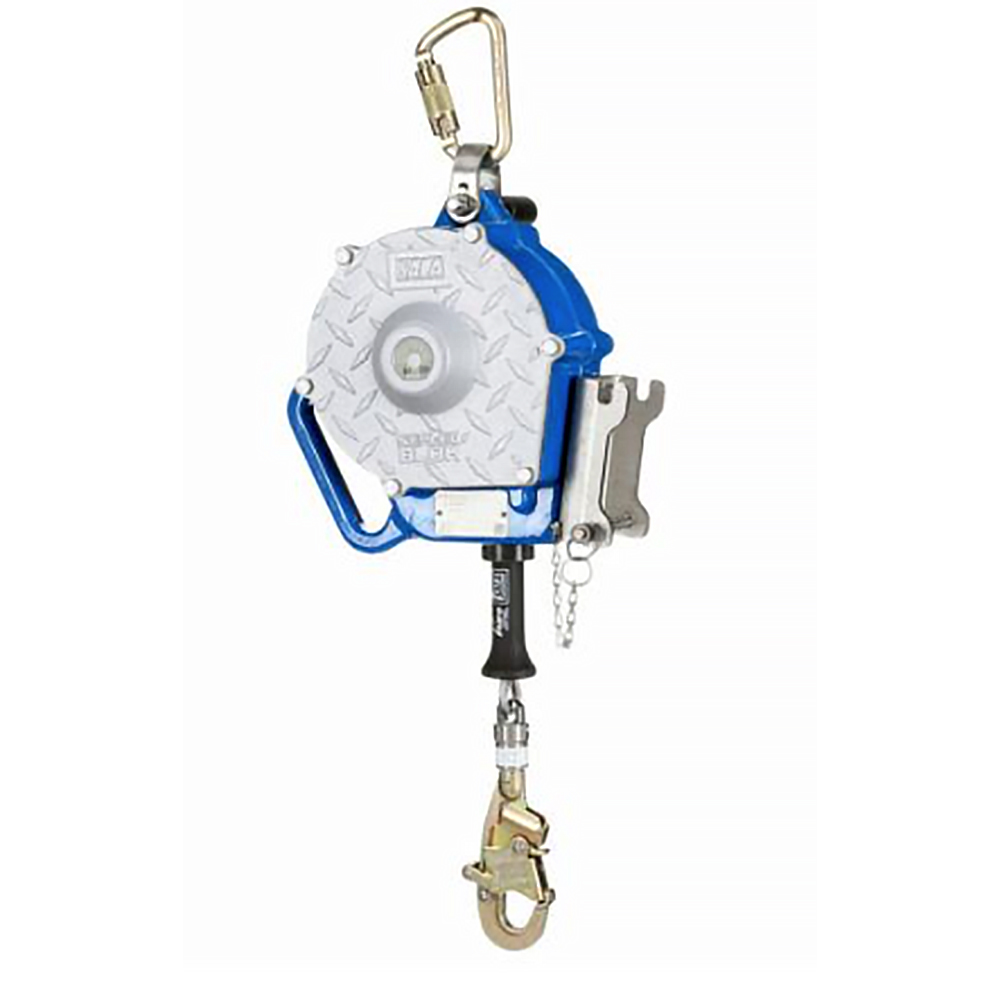

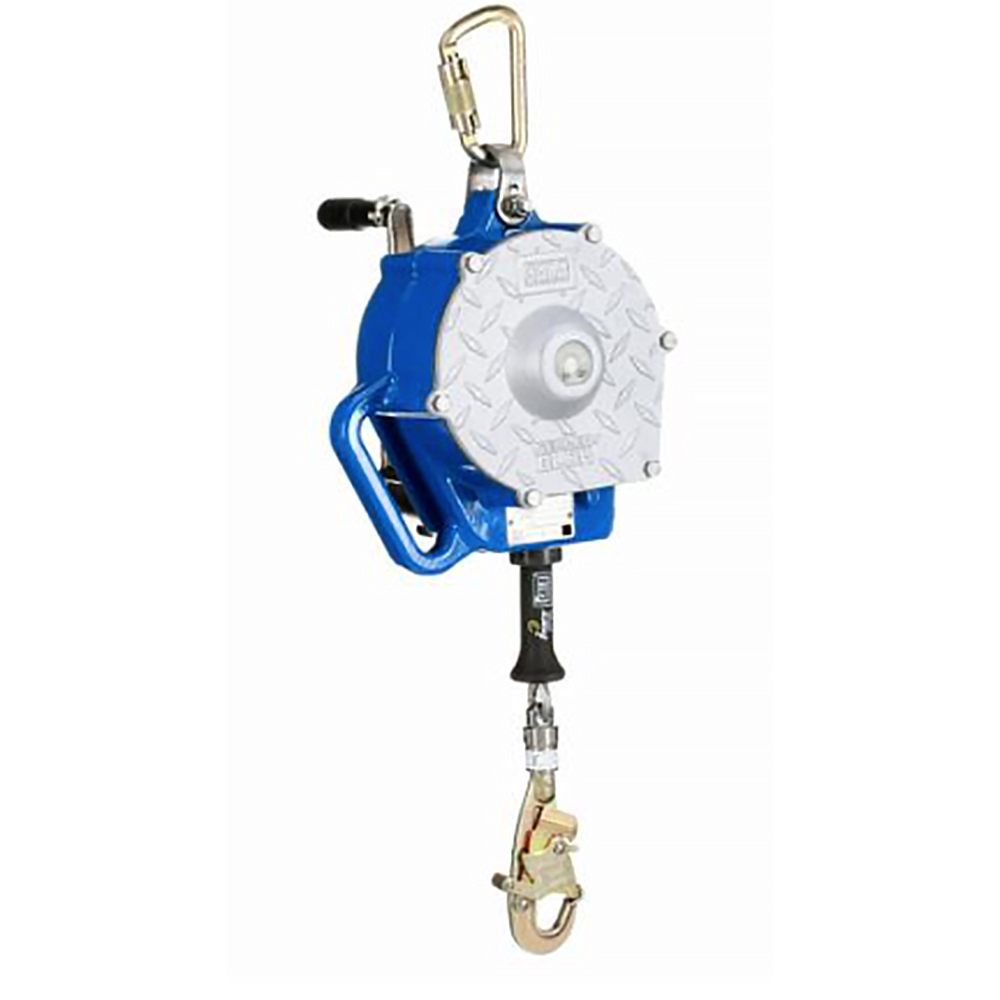

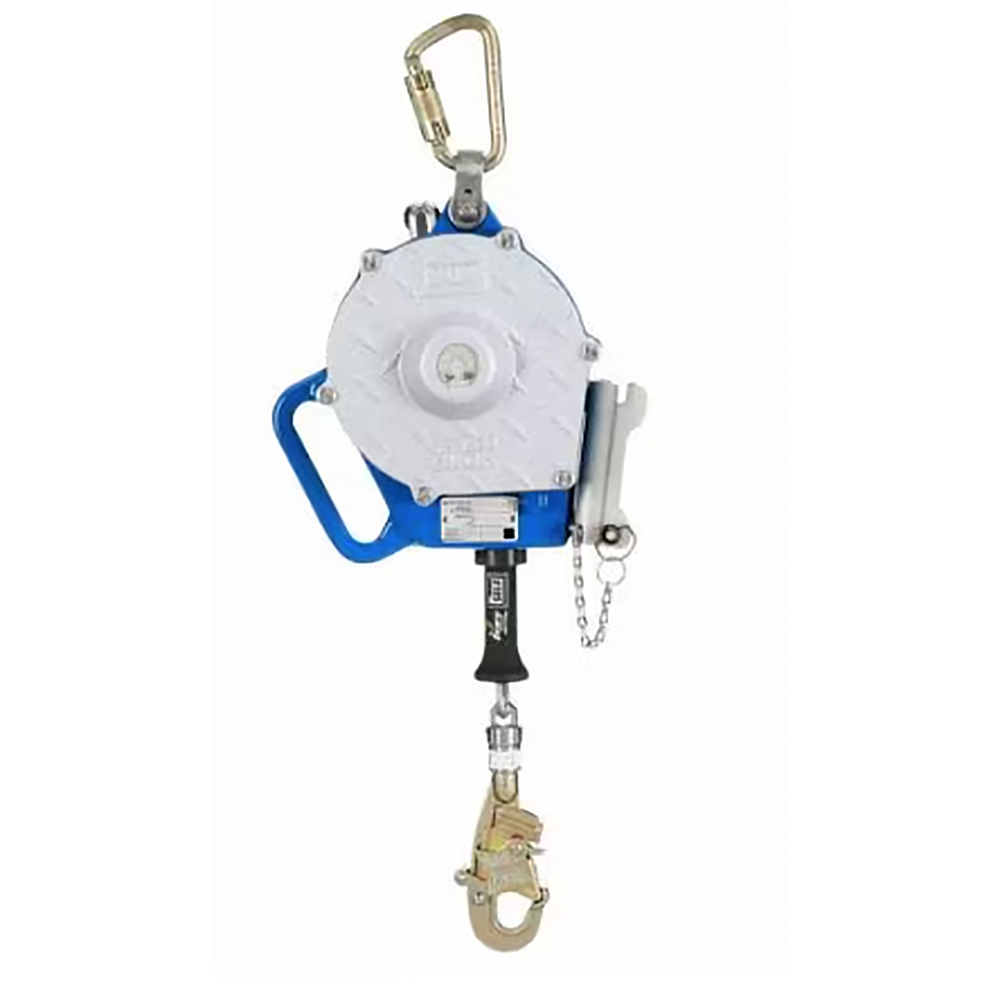

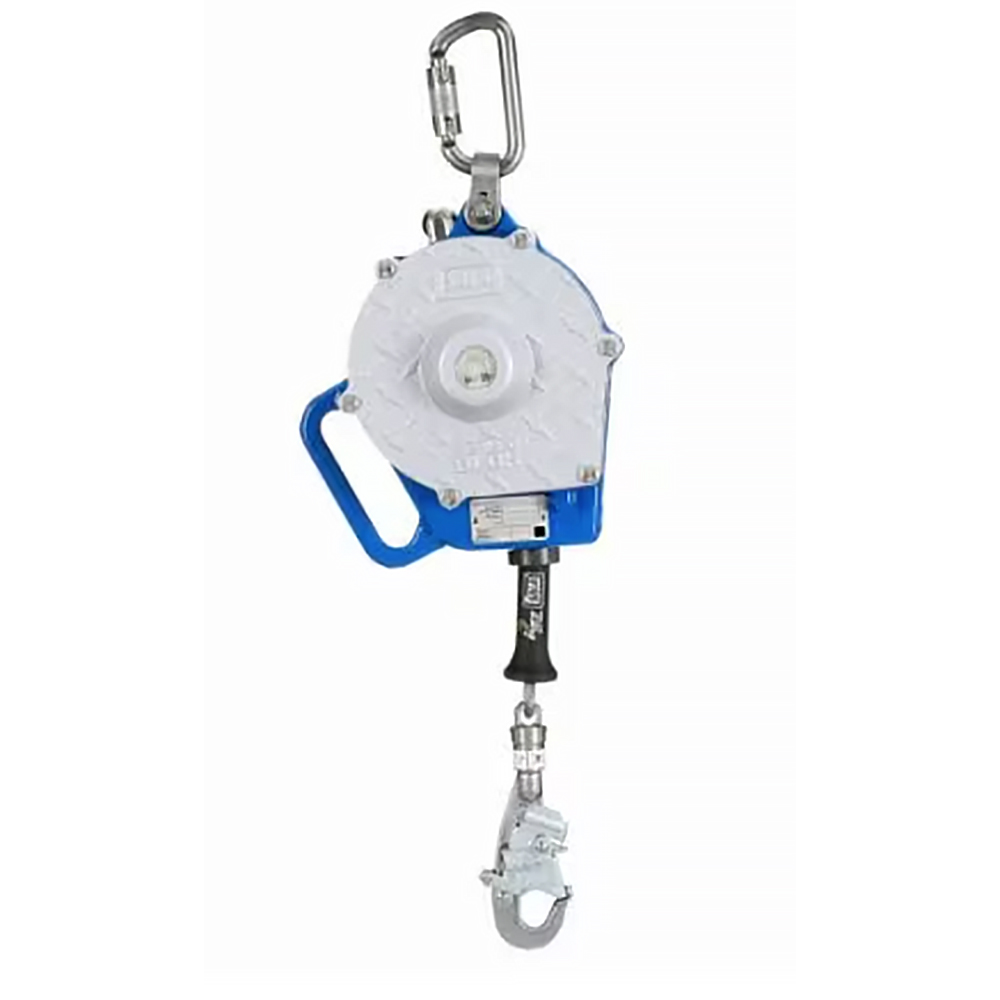

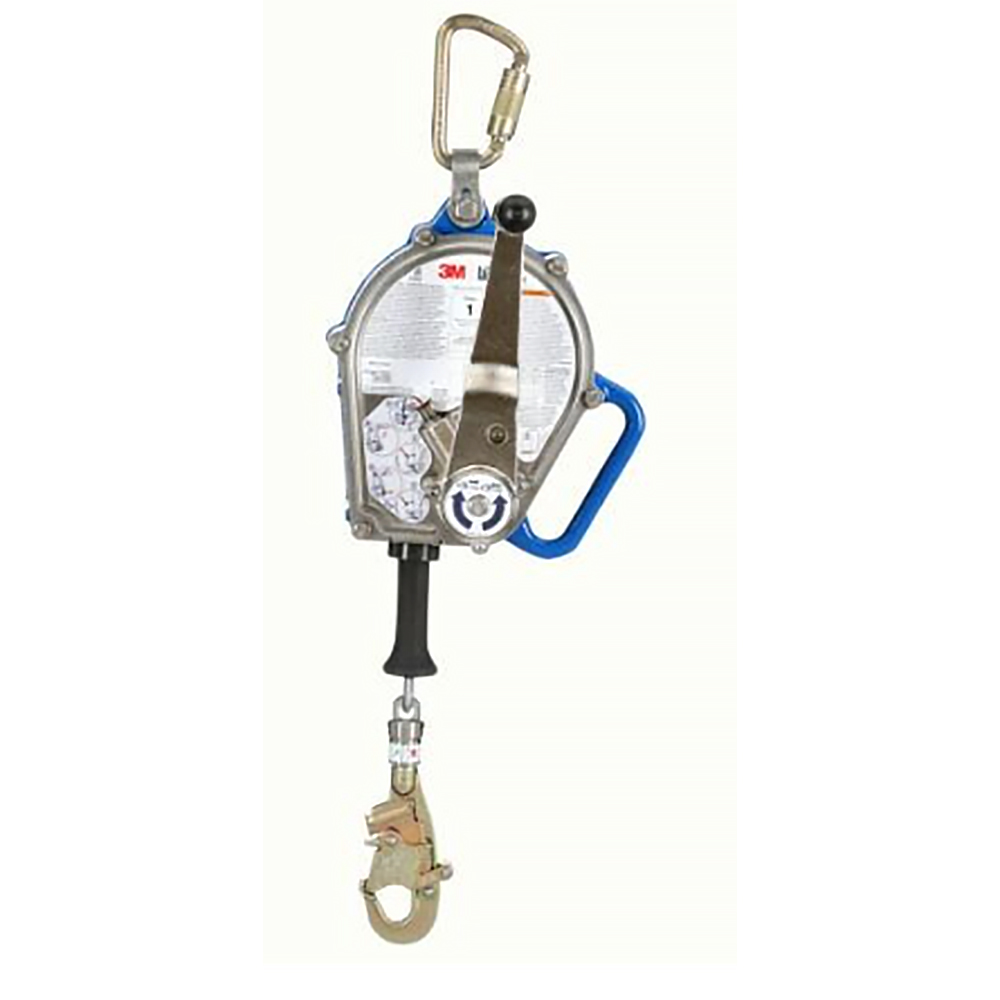

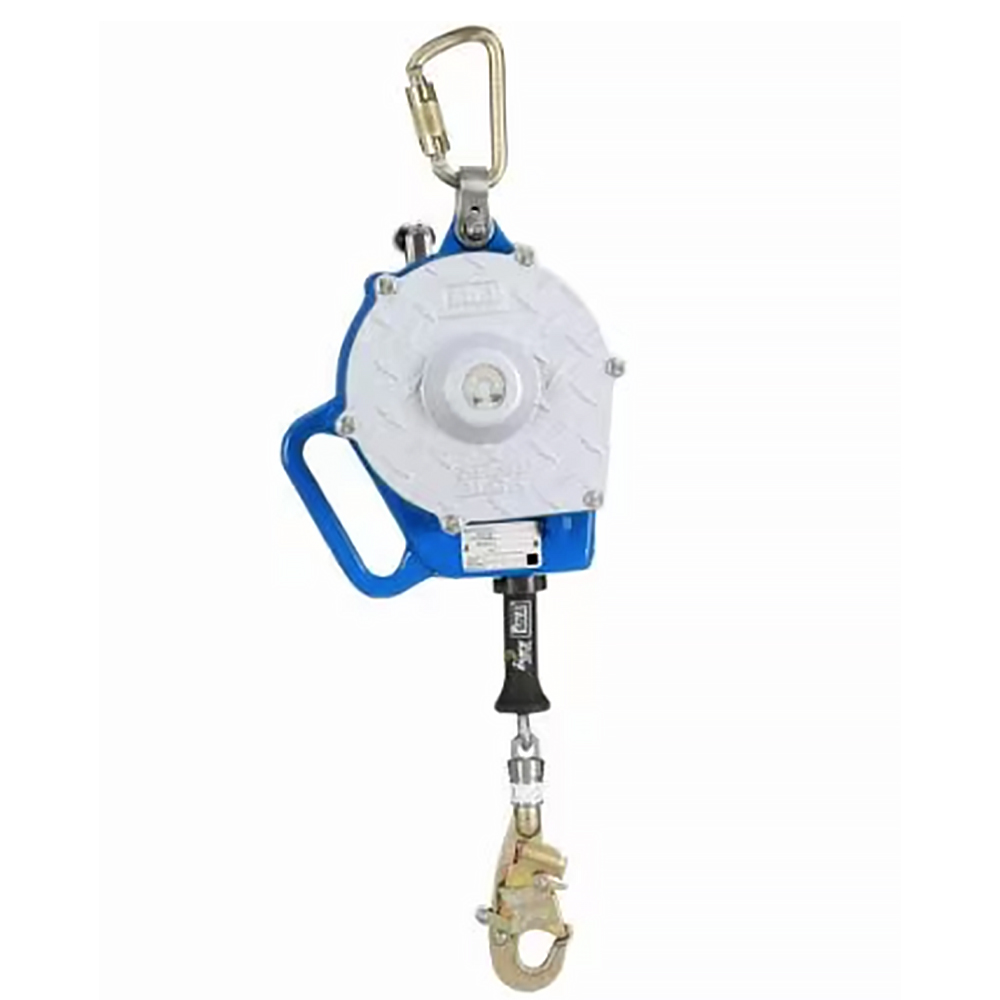

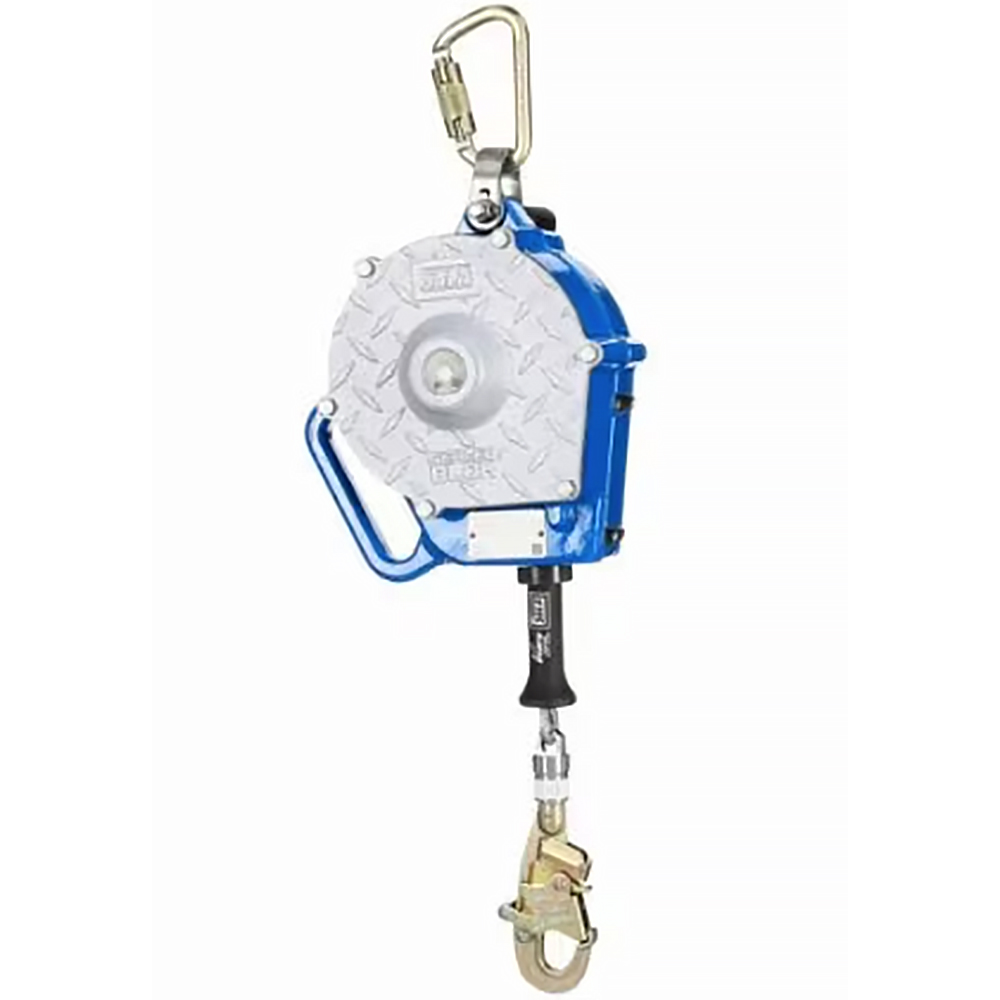

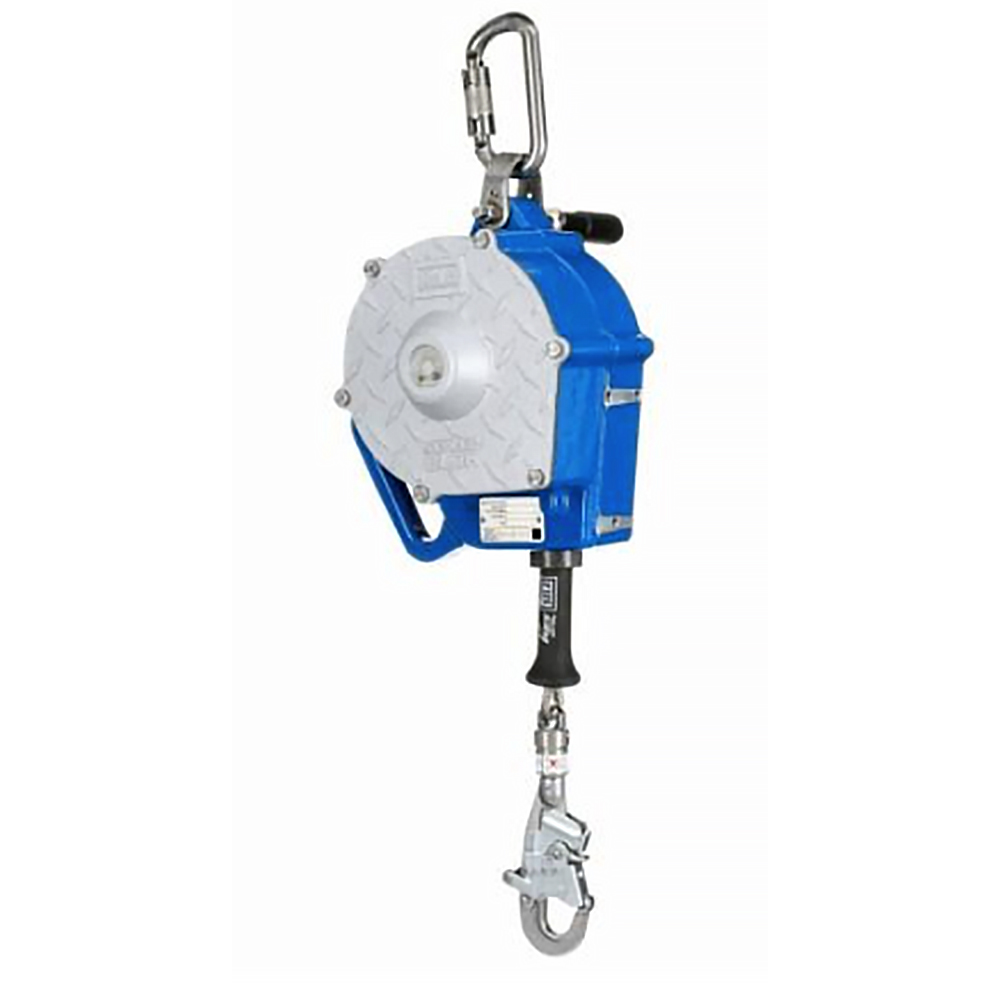

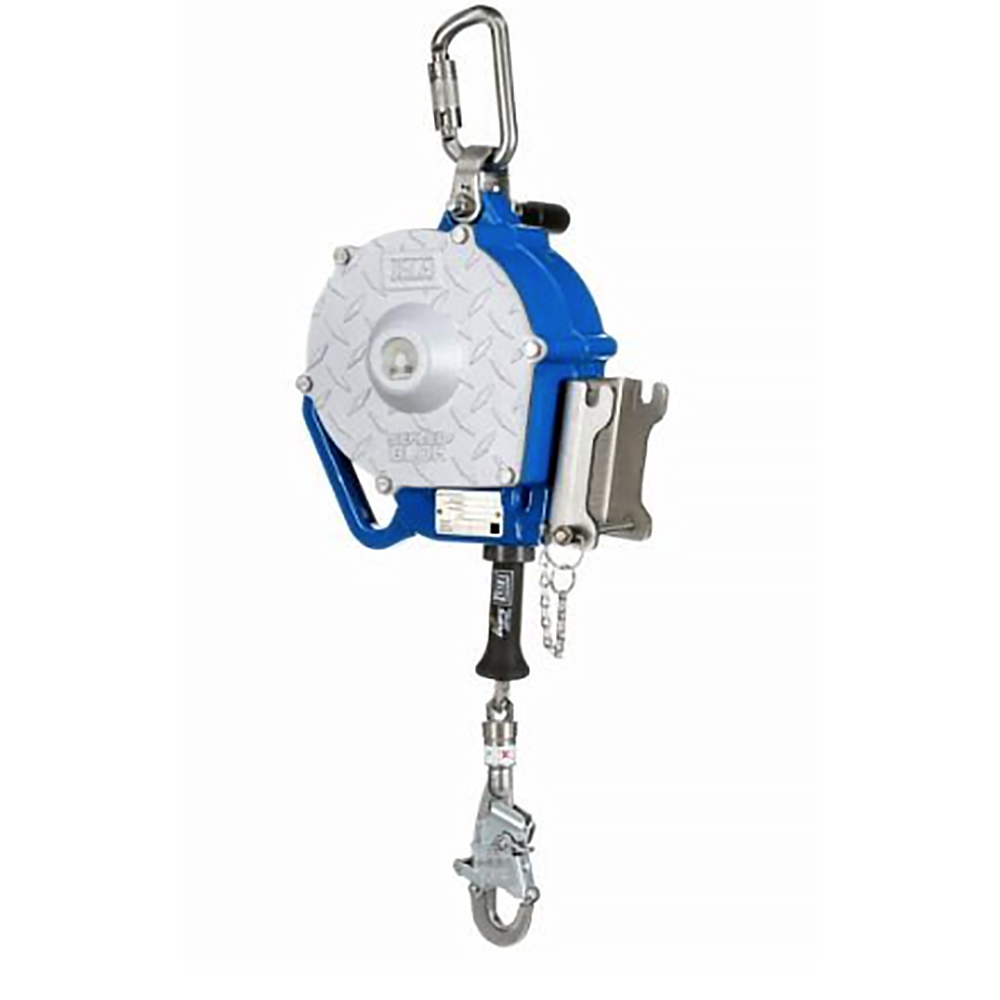

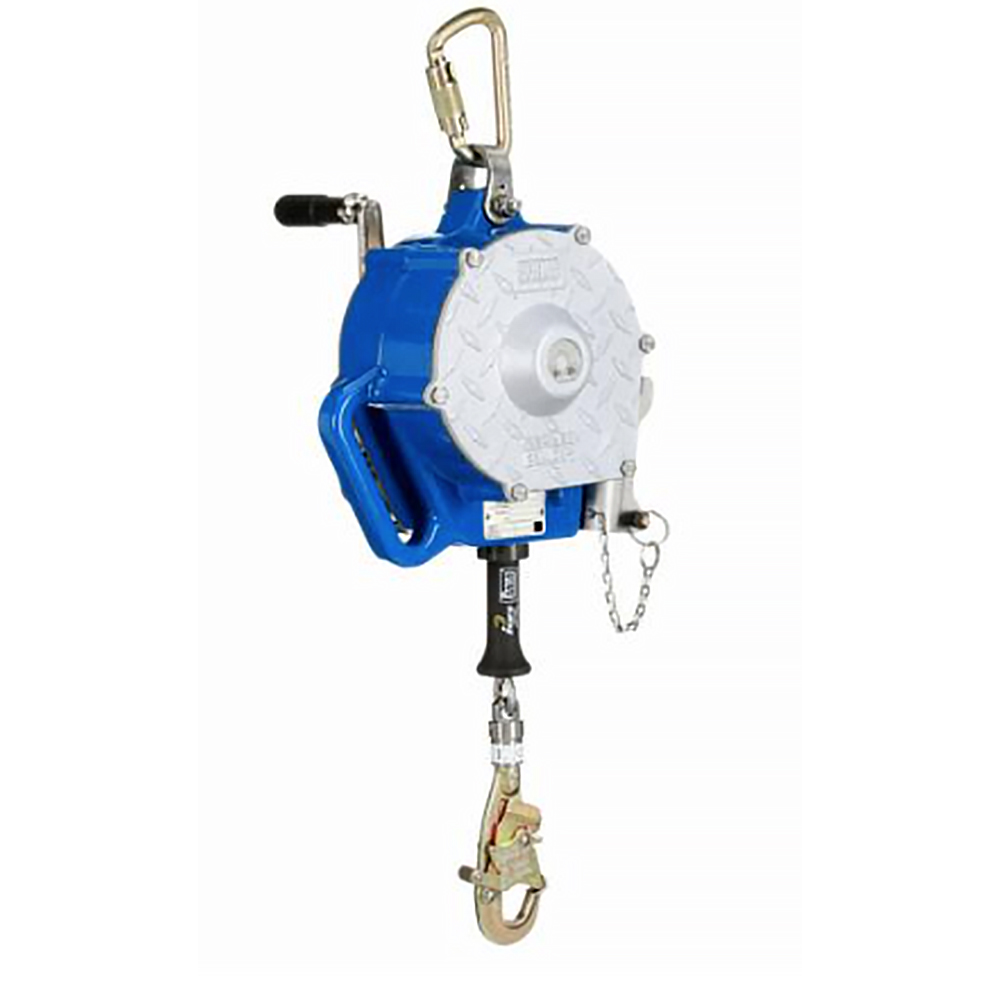

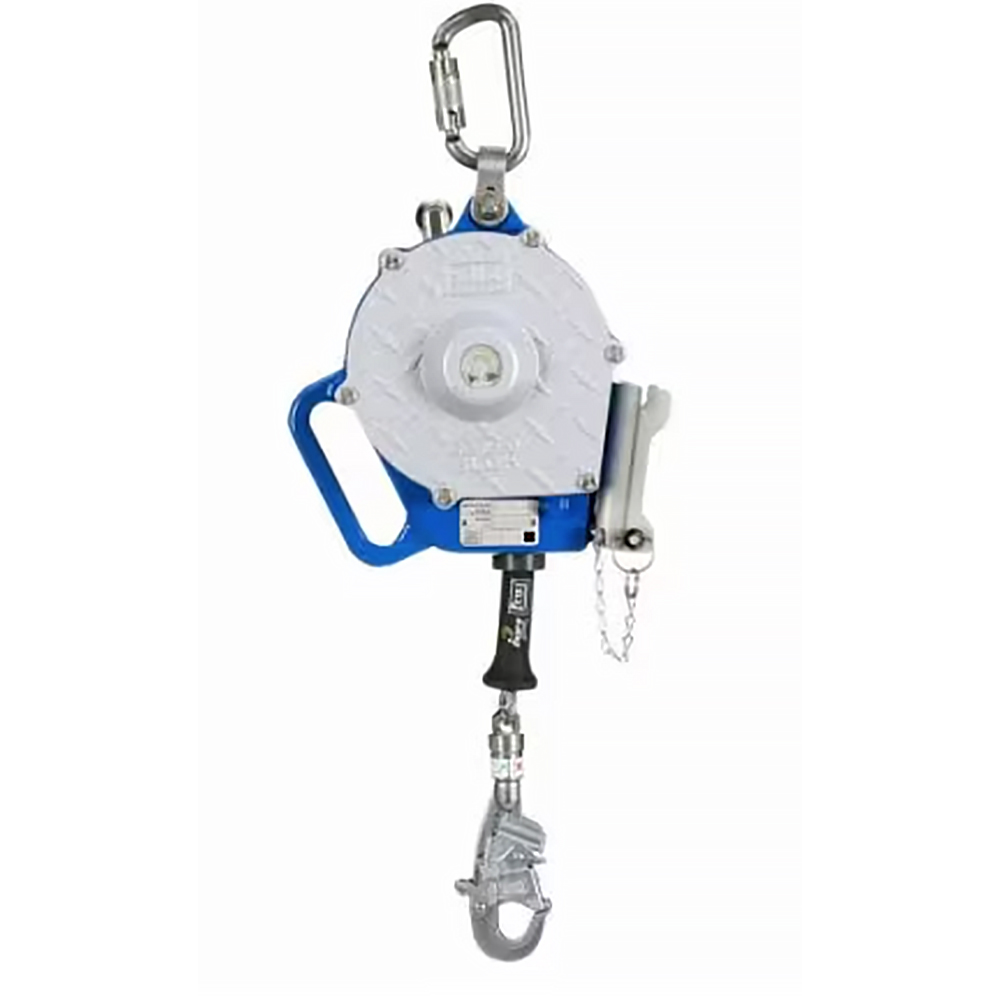

3M DBI-SALA Class 1 Overhead Mount Sealed-Blok Self-Retracting Lifeline Retrieval
The 3M DBI-SALA Sealed-Blok Self-Retracting Lifeline (SRL) incorporates a patented concept that helps separate components, such as the motor spring and brake, from foreign elements such as grease, moisture, and dirt. The 3M DBI-SALA Sealed-Blok Self-Retracting Lifeline is IP-69K rated to provide protection against ingress of dust, high temperatures, and high-pressure water, for use in extreme environmental conditions. These lifelines are available in Overhead, Retrieval, and RSQ / Rescue SRL configurations.
When it comes to confined space and entry rescue, the 3M DBI-SALA Sealed-Blok Self-Retracting Lifeline (SRL) is essential; it operates quickly and efficiently in the toughest environments. The 3M DBI-SALA Sealed-Blok Self-Retracting Lifeline is one of the most critical parts of a rescue system as it provides the means to retrieve an incapacitated worker to safety. The SRL’s lifeline is designed to extend as the user moves away and retracts automatically, enabling the user to move around within a recommended working area at normal speeds. Should a fall occur, the SRL’s internal centrifugal energy absorption system will activate, stopping the fall and reducing the forces imposed on the user to safe levels.
Features:

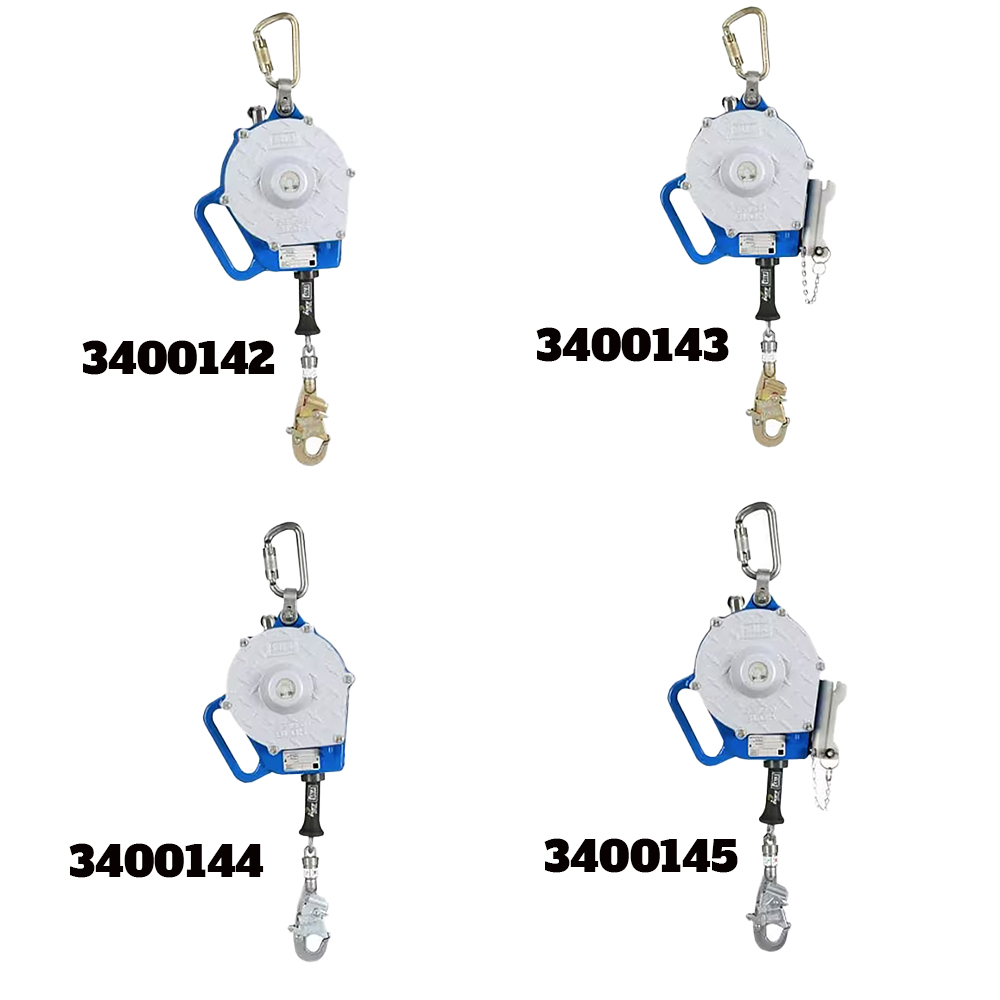

- Available in multiple configurations, lifeline lengths, and material types
- Integrated fall arrest energy dissipation system

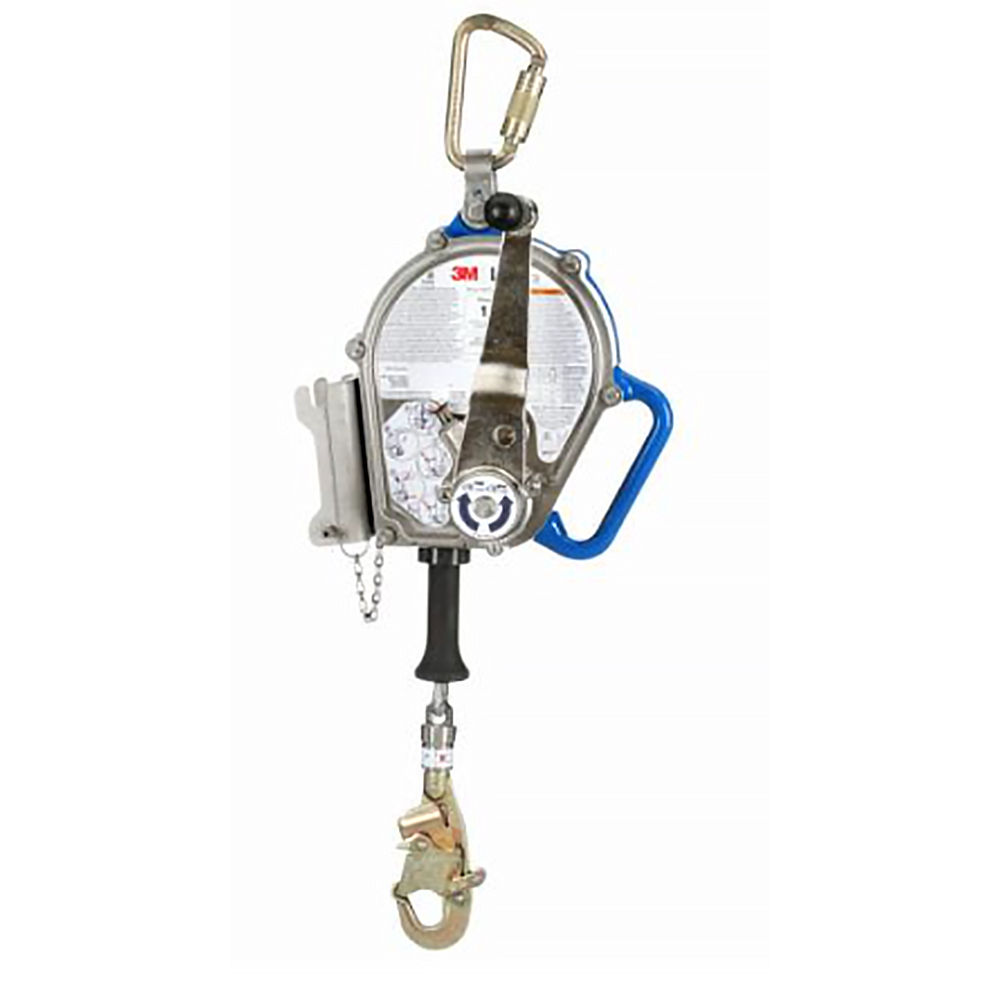

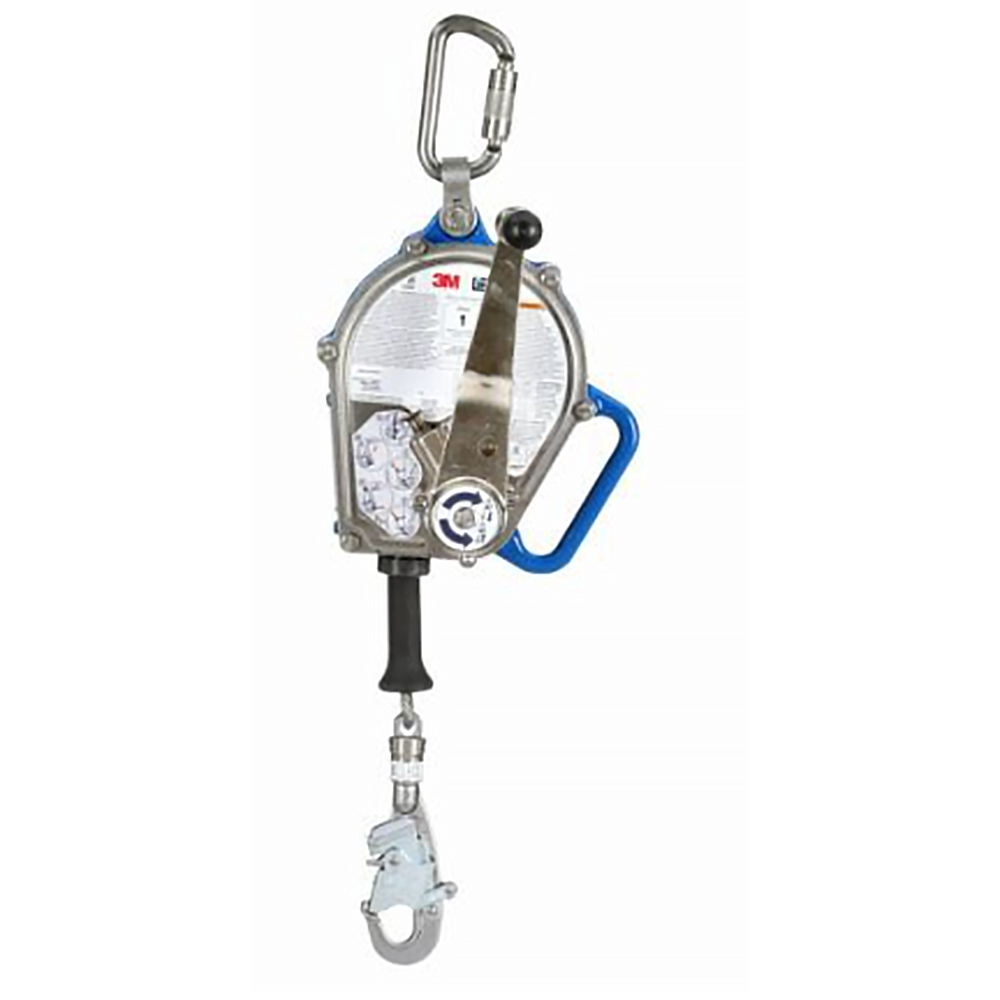

- Emergency retrieval system available on some models
- RFID tag is embedded in polyurethane bumper
- Critical SRL components sealed from environmental exposure
- Swiveling self-locking snap hook with impact indicator
- Pivoting anchorage connector loop
- Durable Construction
- Galvanized & stainless steel cable options
- Quick activating speed-sensing locking system
- Equipped with an integrated carrying handle to assist in transporting the SRL to job sites
- IP 69K ingress protection rating
Specifications:
- ANSI Class Level: Class 1
- Anchor Connection Type: Swivel Snap Hook
- Anchor Hook Material: Zinc Plated Steel
- Anchor Hook Material: Stainless Steel
- Average Arrest Force (Imperial): 1125 lbf (ANSI), 1125 lbf (OSHA 130 lb - 310 lb)
- Average Arrest Force (Metric): 5 kN (OSHA 130 lb - 310 lb), 5 kN (ANSI)
- Carabiner/Hook Material: Zinc Plated Steel
- Case Quantity: 1.0 per Case
- Connected Safety ID Equipped: Yes
- Harness Connection Type: Carabiner
- Housing Material: Aluminum & Stainless Steel
- Install Type: Portable
- Lifeline Connection Type: Snap Hook
- Lifeline Hook Material: Zinc Plated Steel
- Lifeline Length (Imperial): 15 ft
- Lifeline Length (Metric): 4.5 m
- Maximum Arrest Force (Imperial): 1800 lbf (OSHA up to 420 lb), 1350 lbf (OSHA 130 lb - 310 lb), 1350 lbf (ANSI)
- Maximum Arrest Force (Metric): 6 kN (OSHA 130 lb - 310 lb), 8 kN (OSHA up to 420 lb), 6 kN (ANSI)
- Maximum Number of Users: One
- Mounting Type: Overhead Anchor Point
- Product Color: Blue
- Product Series: Sealed-Blok
- Product Type: Self-Retracting Lifeline
- Recommended Application: Climbing, Inspection, Maintenance, Welding, Cleaning, Blasting
- Recommended Industries: Manufacturing, Mining, Oil & Gas, Industrial, General Manufacturing, Wind Energy, Military Maintenance, Repair & Operation (MRO), General Industry, Construction
- Specifications Met: ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1926.502, 29 CFR OSHA 1910.140
- Weight Capacity (Imperial): 420 lb.
- Weight Capacity (Metric): 190 kg
Available Options:
- Lifeline Material:
- Galvanized Cable
- Stainless Steel
- Mounting:
