3M DBI-SALA Class 1 Overhead Mount Nano-Lok Personal Self-Retracting Lifeline
3M DBI-SALA Nano-Lok Self-Retracting Lifeline is lightweight with a compact design and industrial-strength durability. 3M DBI-SALA Nano-Lok Self-Retracting Lifeline offers versatility for many different industrial applications.
3M DBI-SALA Nano-Lok Self-Retracting Lifeline is ideal for direct connection to most harnesses. Whether the application requires single or twin-leg configurations, mounting to an overhead anchor, or connection directly to a harness, there are numerous models to choose from that suit almost any application. 3M DBI-SALA Nano-Lok Self-Retracting Lifeline locks quickly stop a fall within inches - providing more protection at low heights. These features are key safety improvements and provide the user with additional security on the job.
Features:
- Compact & lightweight design
- Quick activating speed sensing brake system
- Durable thermoplastic housing
- Swiveling anchorage loop
- Built-in connector for direct attachment to harness
- High-capacity external energy absorber and impact indicator
- RFID equipped and compatible with the inventory management system
- Available in multiple styles and configurations
Specifications:
- ANSI Class Level: Class 1
- Average Arrest Force (Imperial): 1125 lbf (ANSI), 1125 lbf (OSHA 130 lb - 310 lb)
- Average Arrest Force (Metric): 5 kN (ANSI), 5 kN (OSHA 130 lb - 310 lb)
- Connected Safety ID Equipped: Yes
- Housing Material: Nylon Thermoplastic
- Housing Type: Thermoplastic
- Install Type: Portable & Removable
- Leg Count: Single-Leg
- Lifeline Length (Imperial): 6 ft
- Lifeline Length (Metric): 1.8 m
- Lifeline Material: Web
- Maximum Arrest Force (Imperial): 1800 lbf (ANSI), 1800 lbf (OSHA 130 lb - 310 lb)
- Maximum Arrest Force (Metric): 8 kN (ANSI), 8 kN (OSHA 130 lb - 310 lb)
- Maximum Number of Users: One
- Mounting Type: Overhead Anchor Point
- Overall Length (Imperial): 6 ft
- Overall Length (Metric): 1.83 m
- Product Color: Blue
- Product Series: Nano-Lok
- Product Type: Quick Connect Self-retracting Lifeline (Web)
- Recommended Industries: Utility, Transportation, Renewable, Wind Energy, Industrial, Utilities, Automotive, Warehousing, Pharmaceutical, General Industrial, General Manufacturing, Maintenance, Military Maintenance, Repair & Operation (MRO), General Industry, Metal Production & Fabrication, Metal Fabrication, Manufacturing, Mining, Oil & Gas, Construction
- Specifications Met: ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502
- Weight (Imperial): 2.038 lb.
- Weight (Metric): 0.924 kg
- Weight Capacity (Imperial): 420 lb.
- Weight Capacity (Metric): 190 kg
Available Options:
- Lifeline Connection Type:

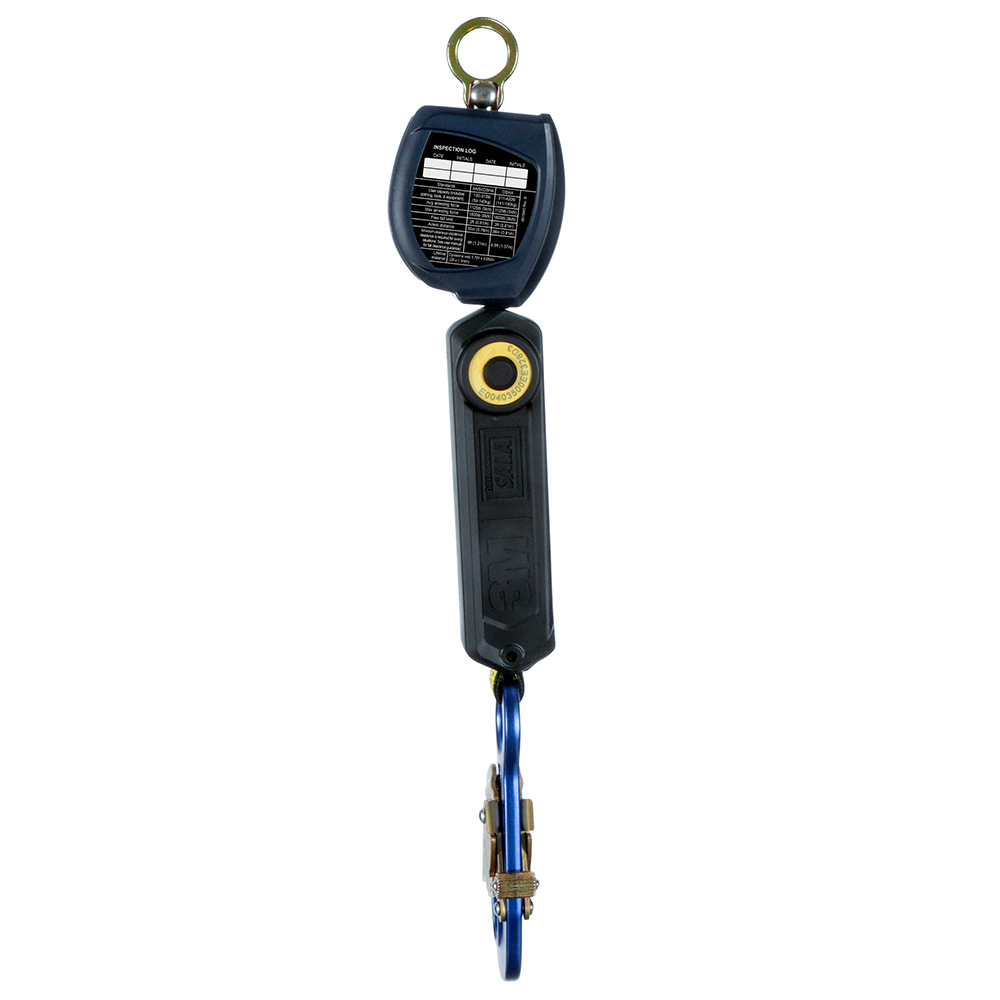

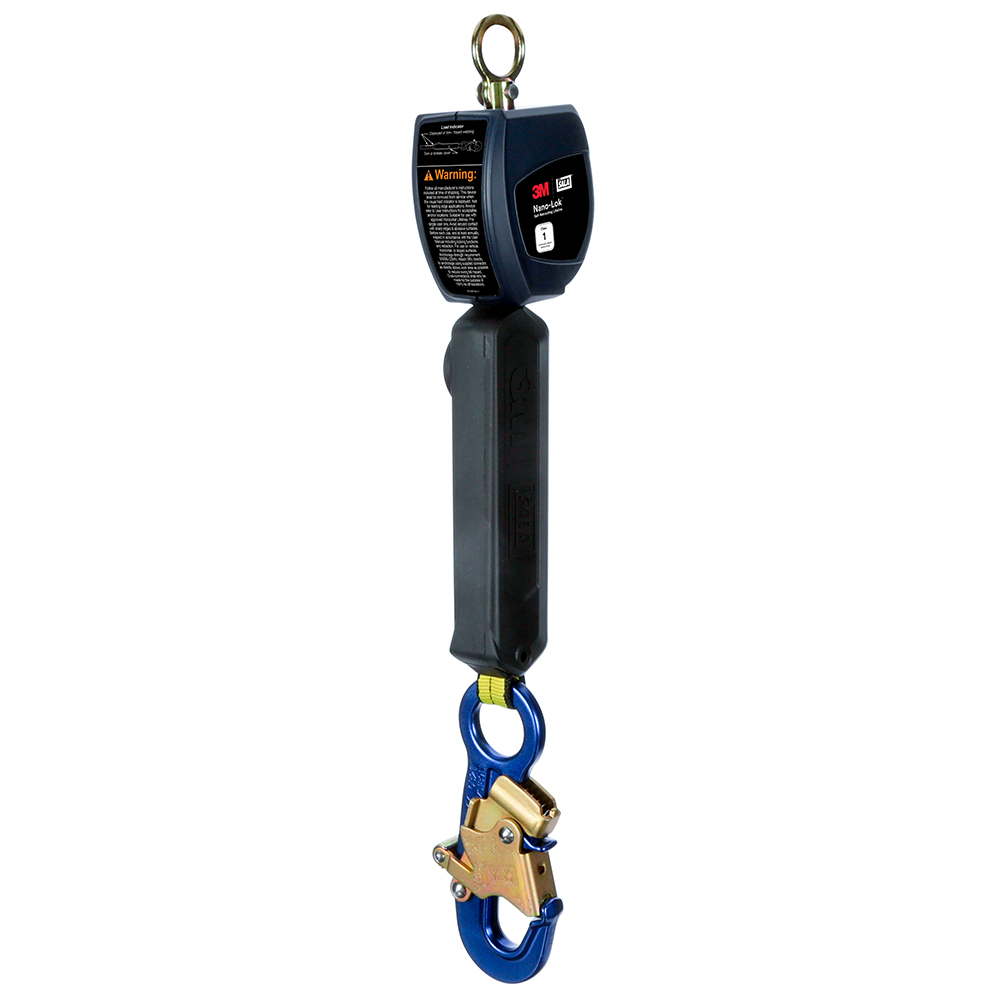

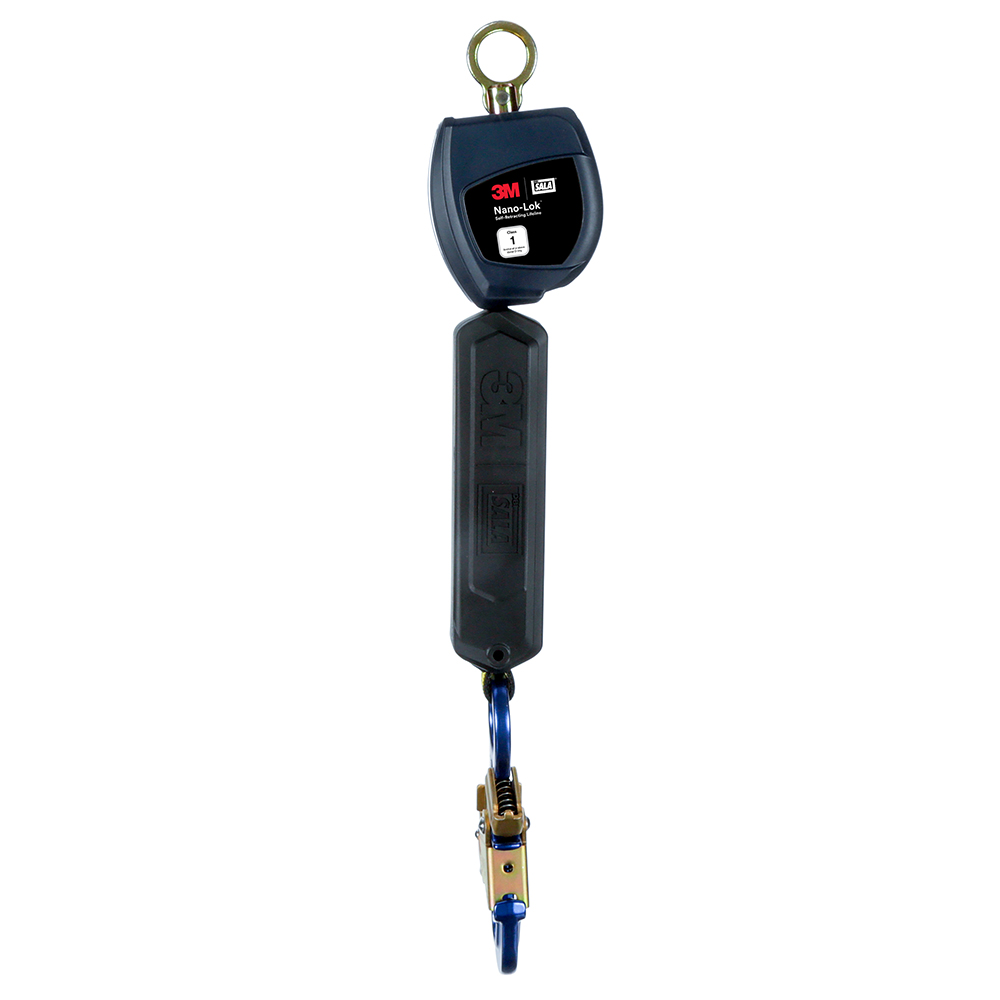

- Aluminum Snap Hook (3100517)

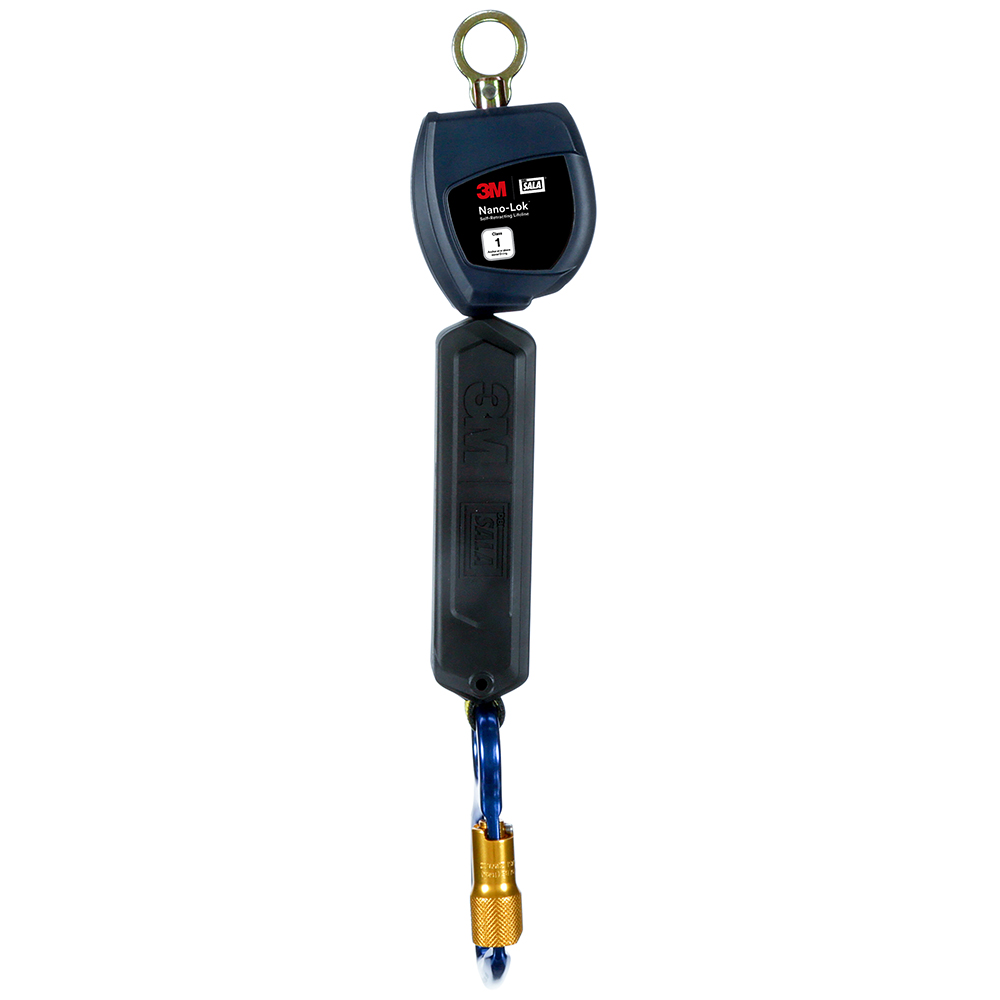

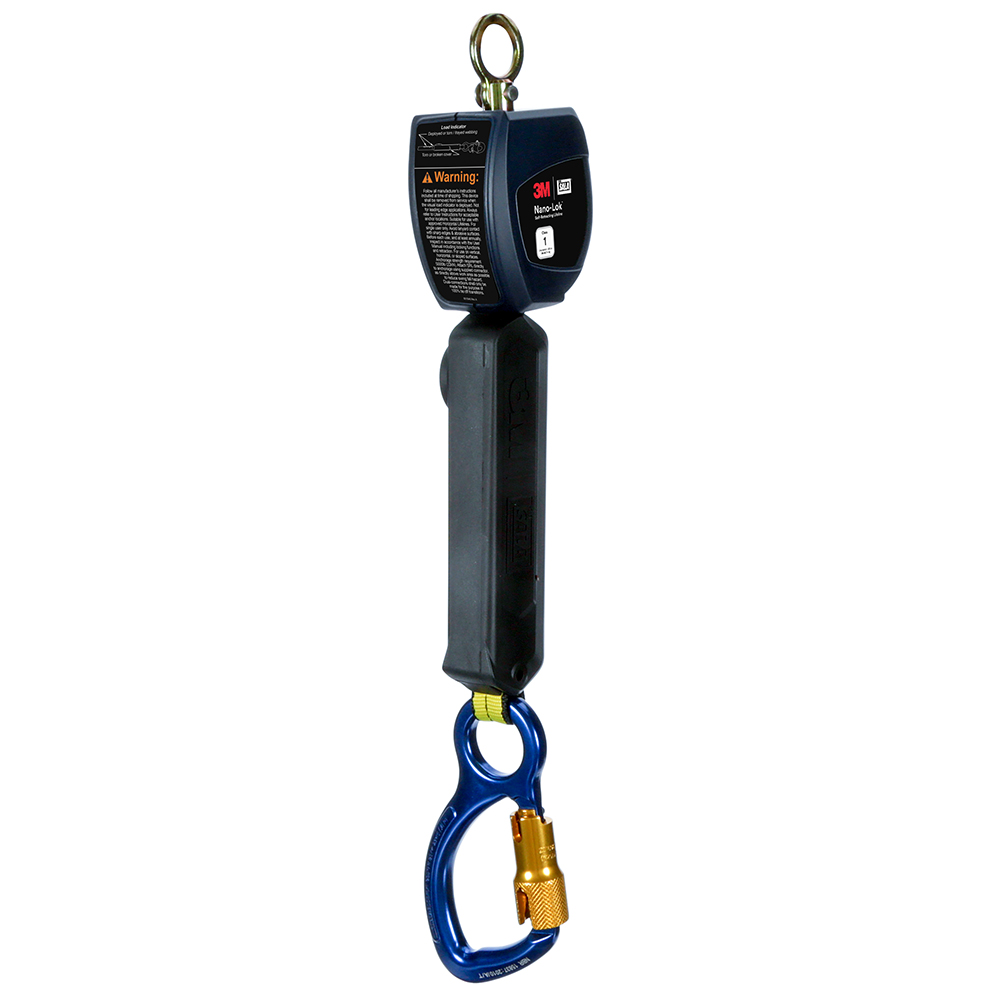

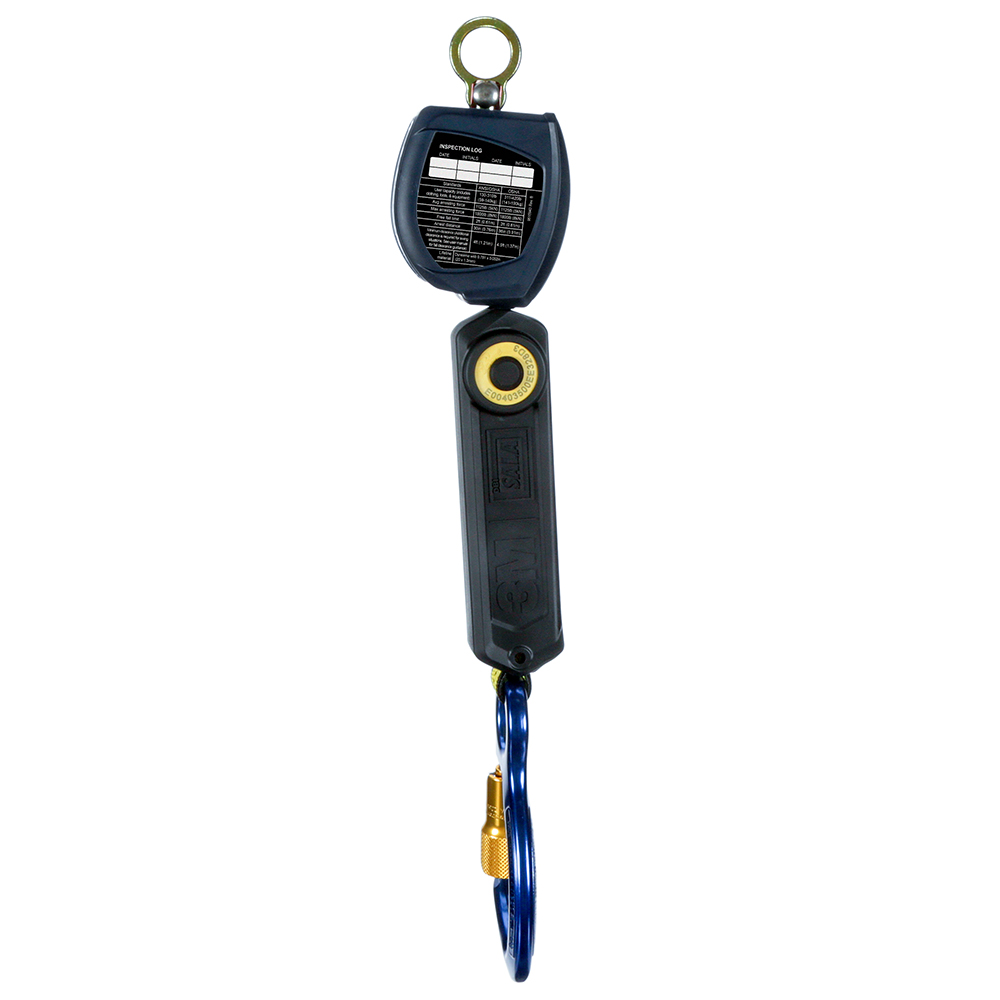

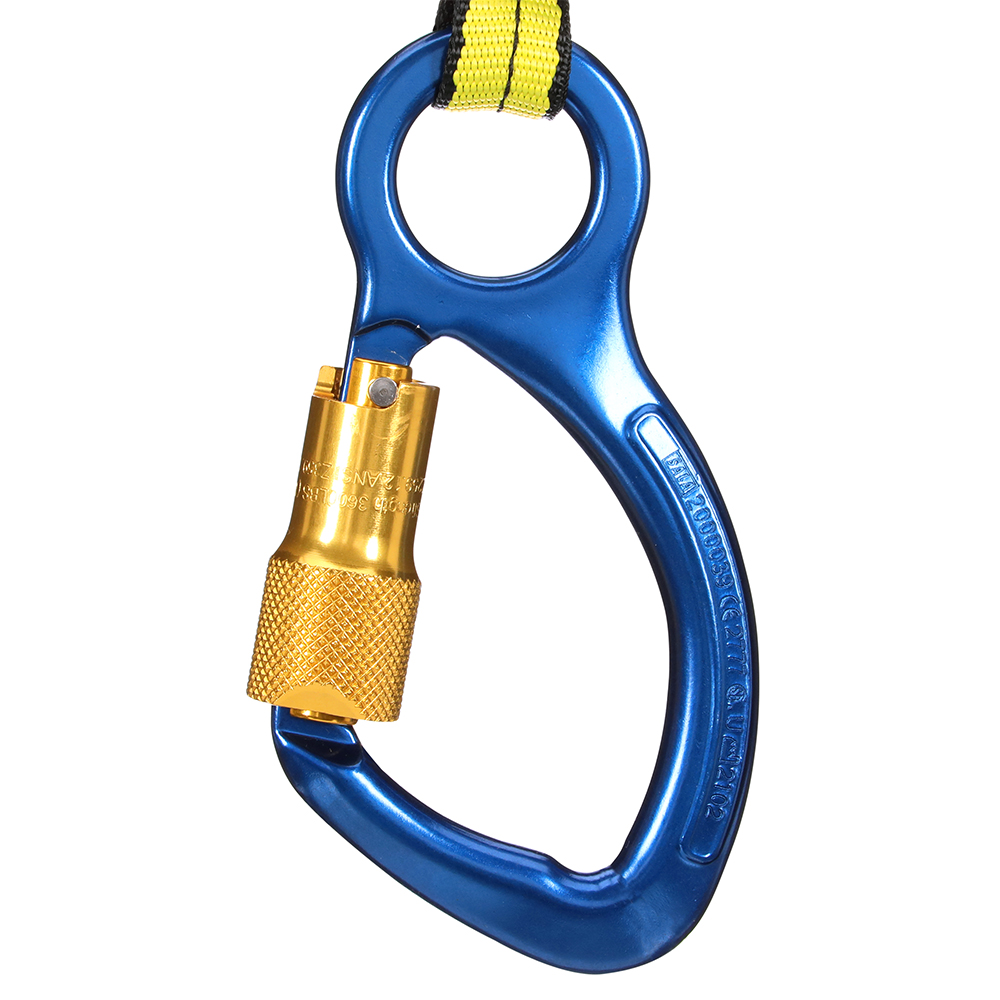

- Aluminum Carabiner (3100518)

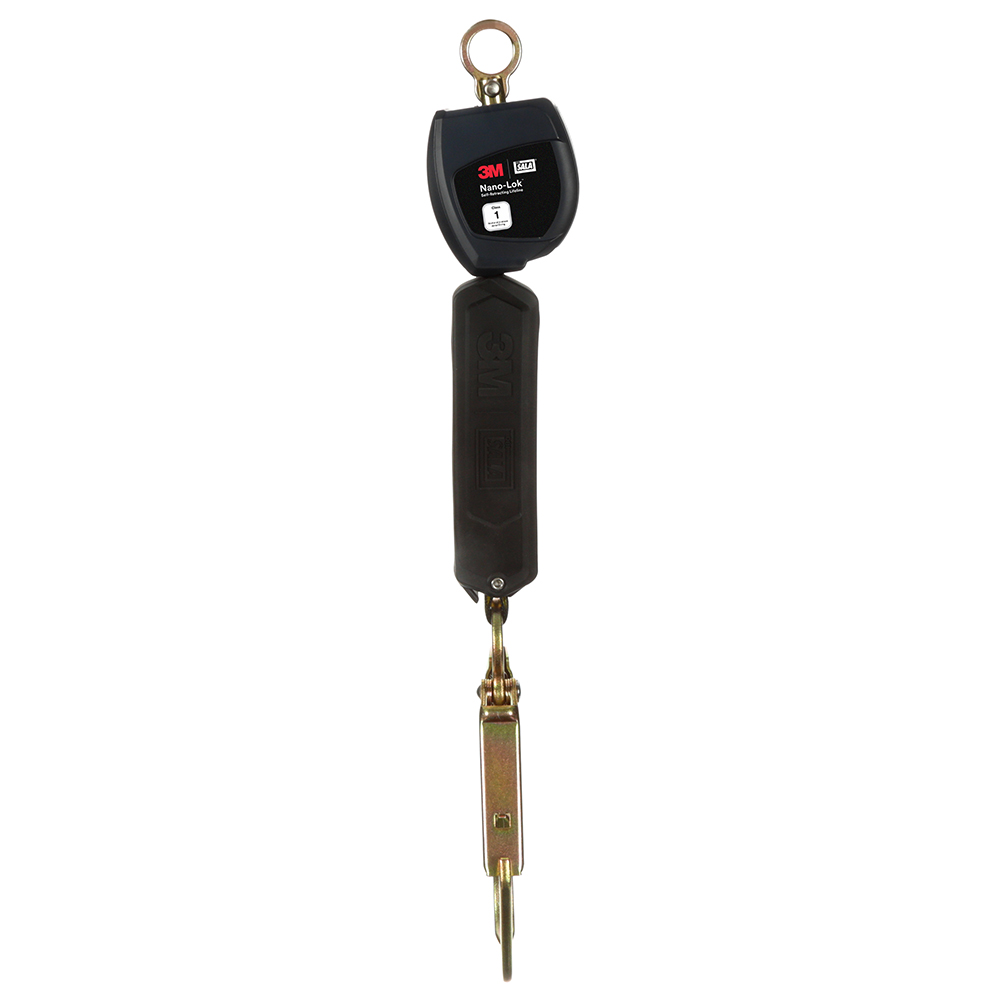

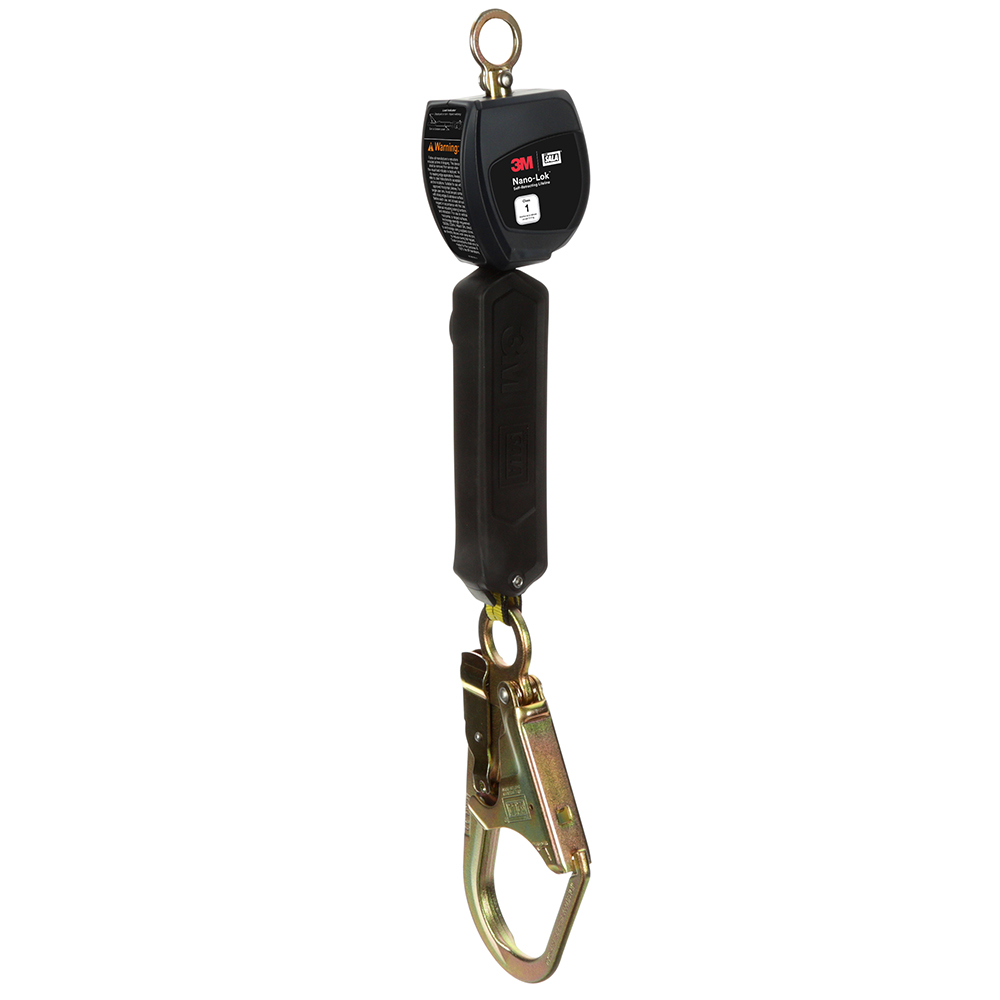

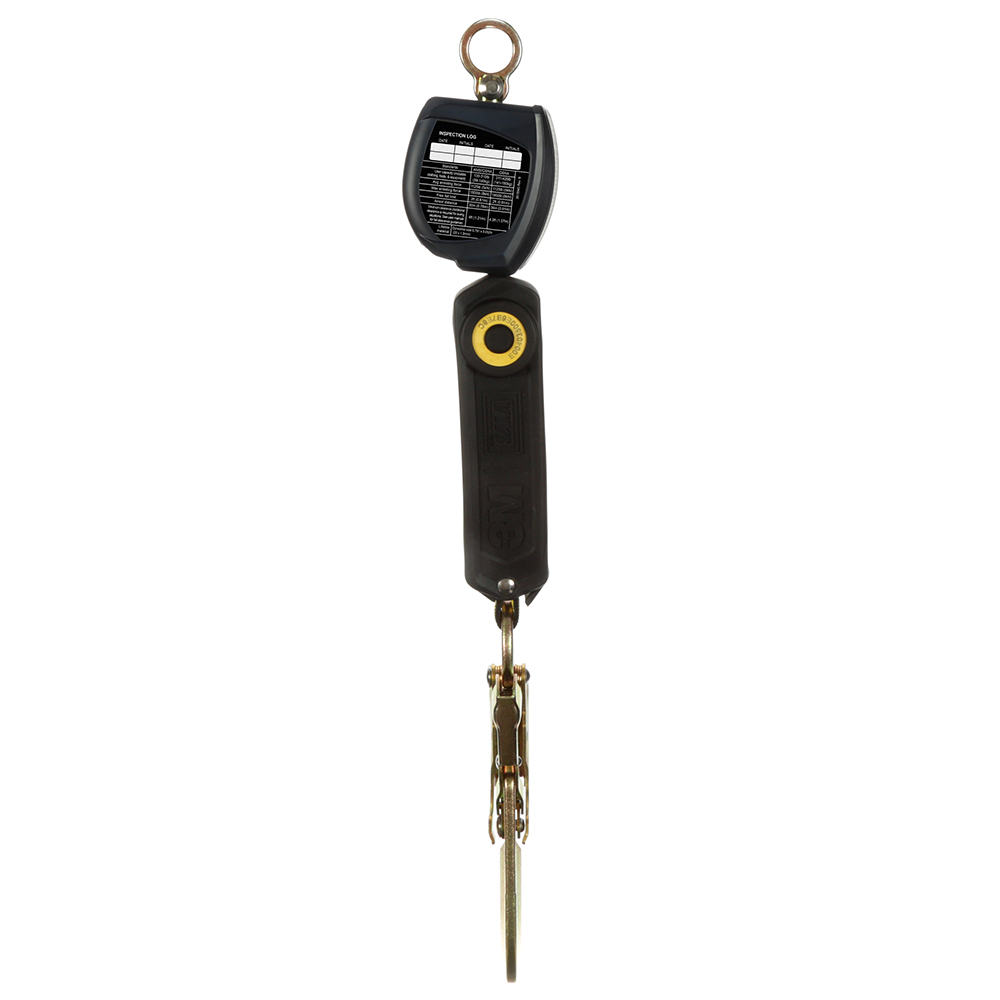

- Steel Rebar Hook (3100532)

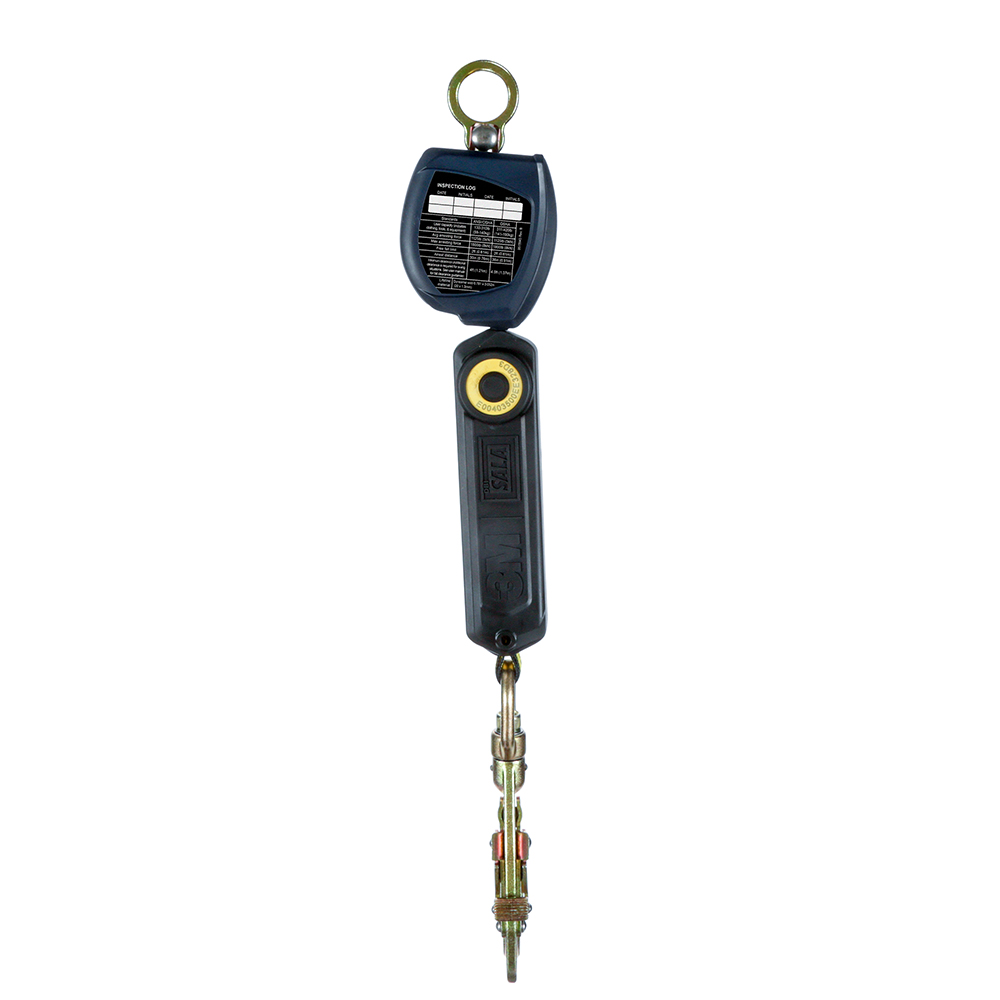

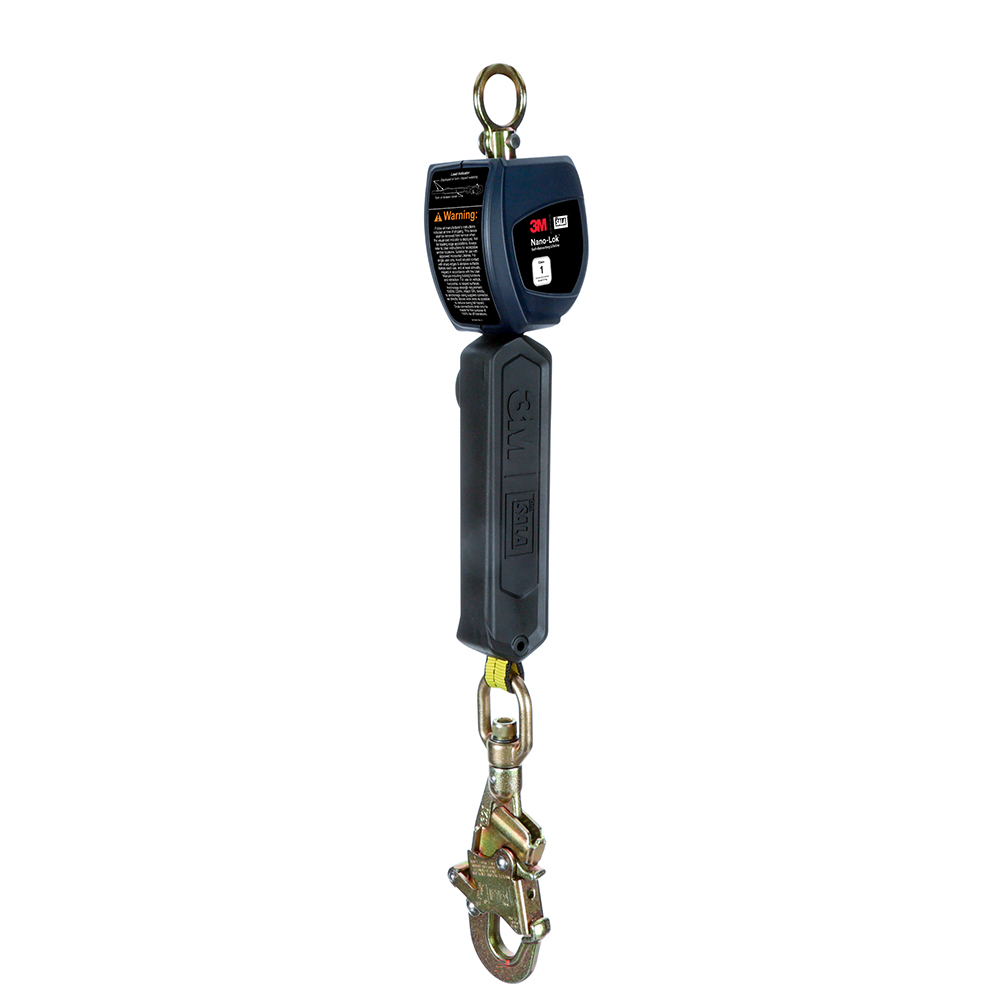

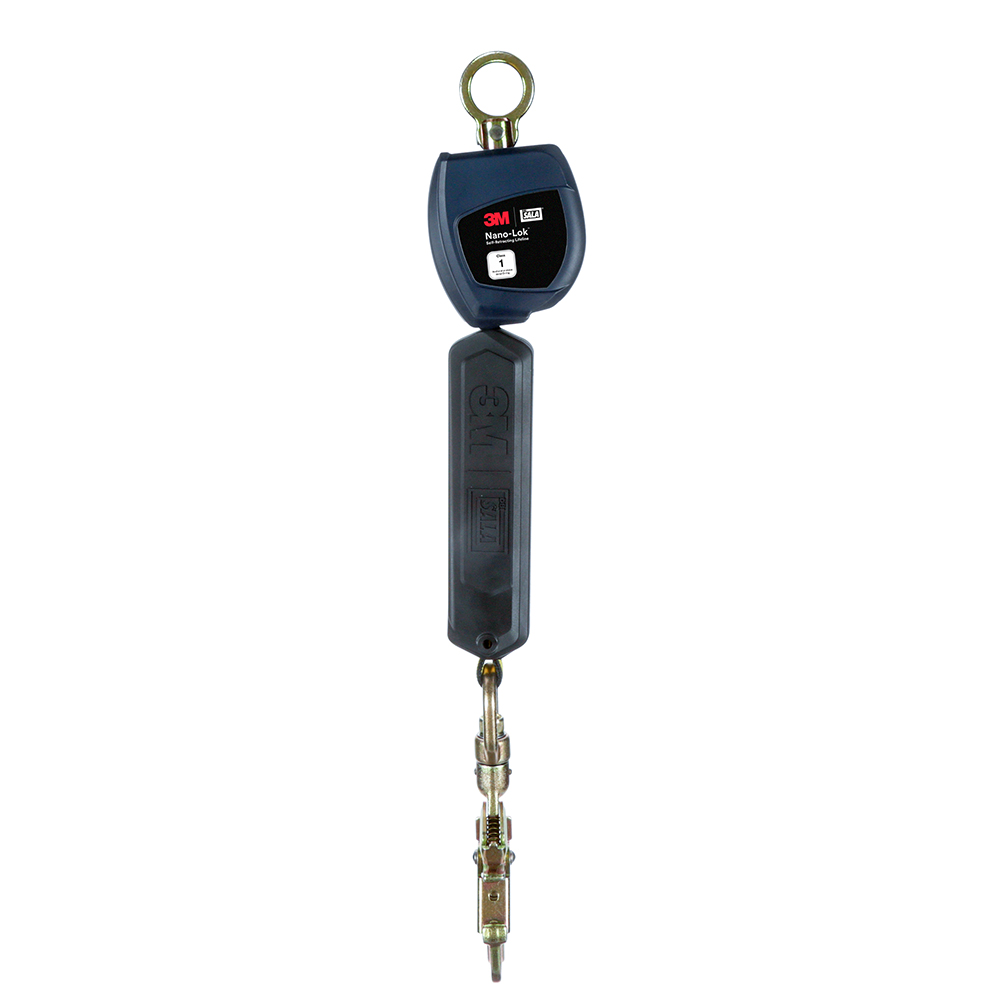

- Steel Snap Hook (3100533)

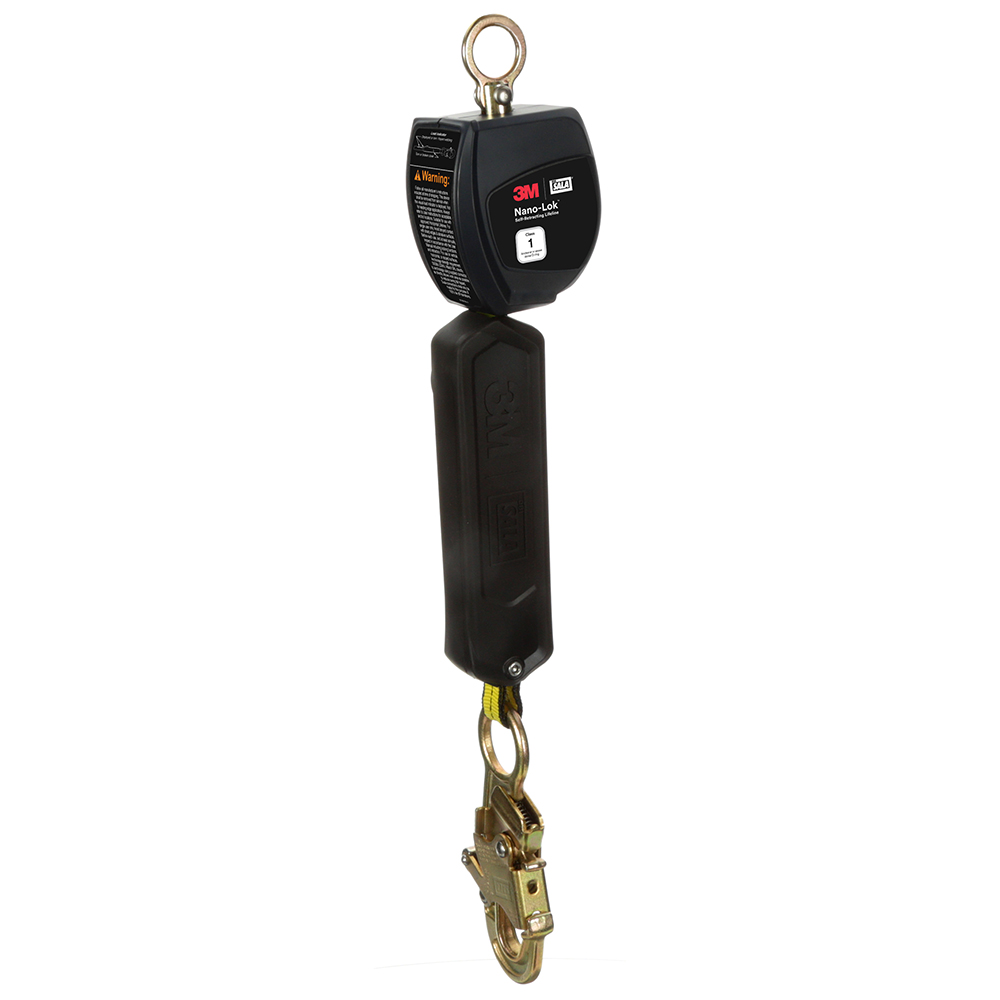

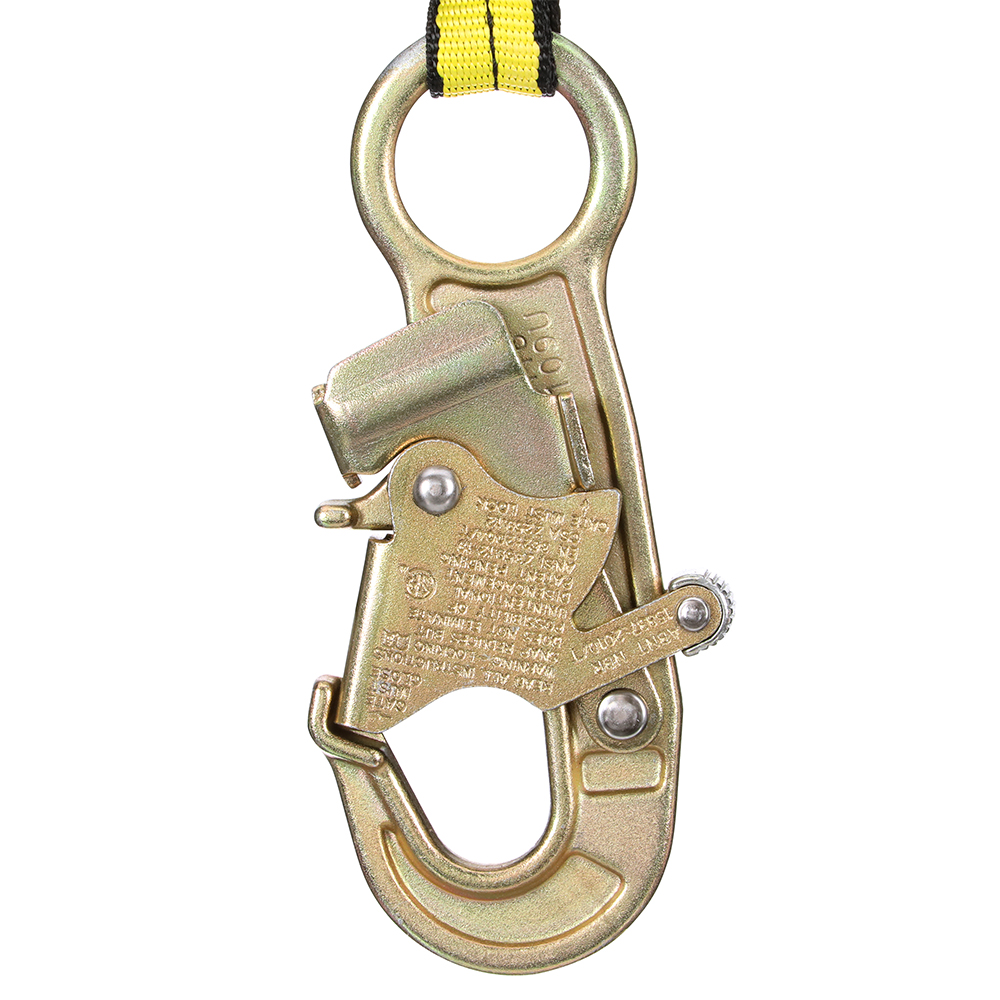

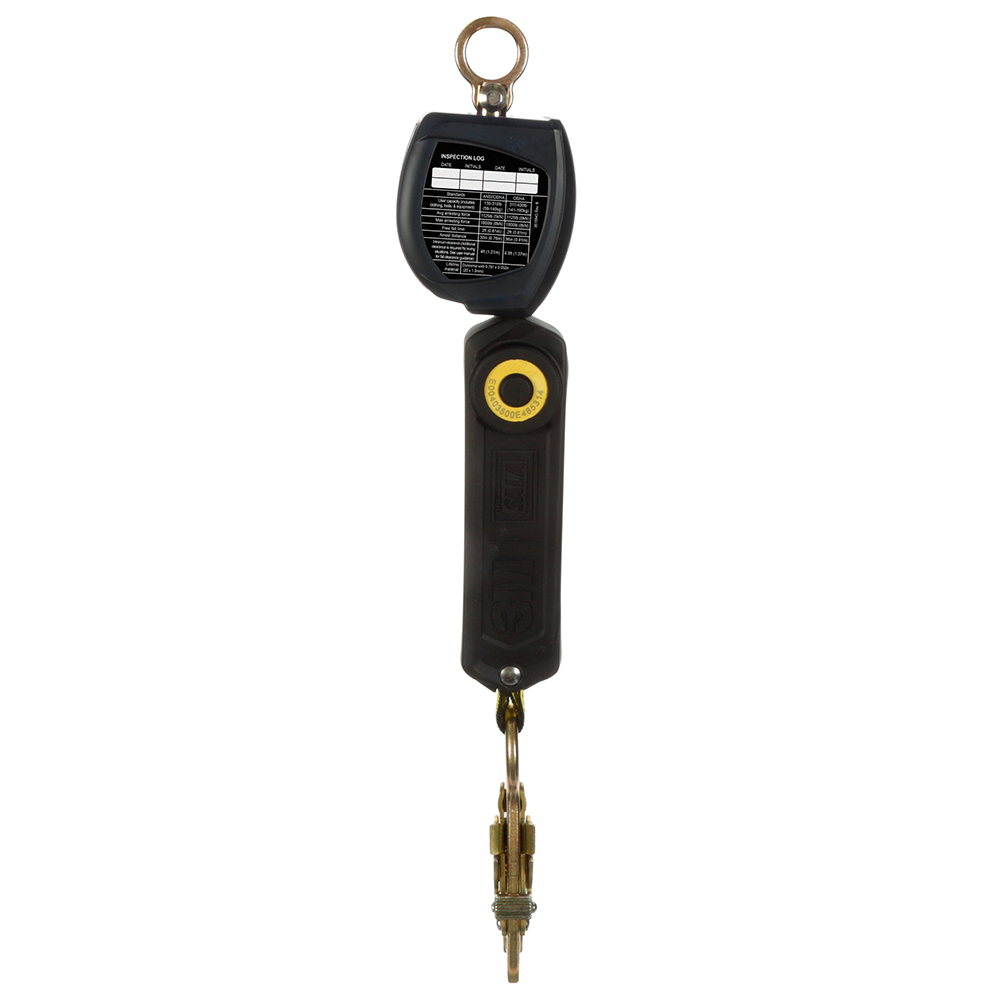

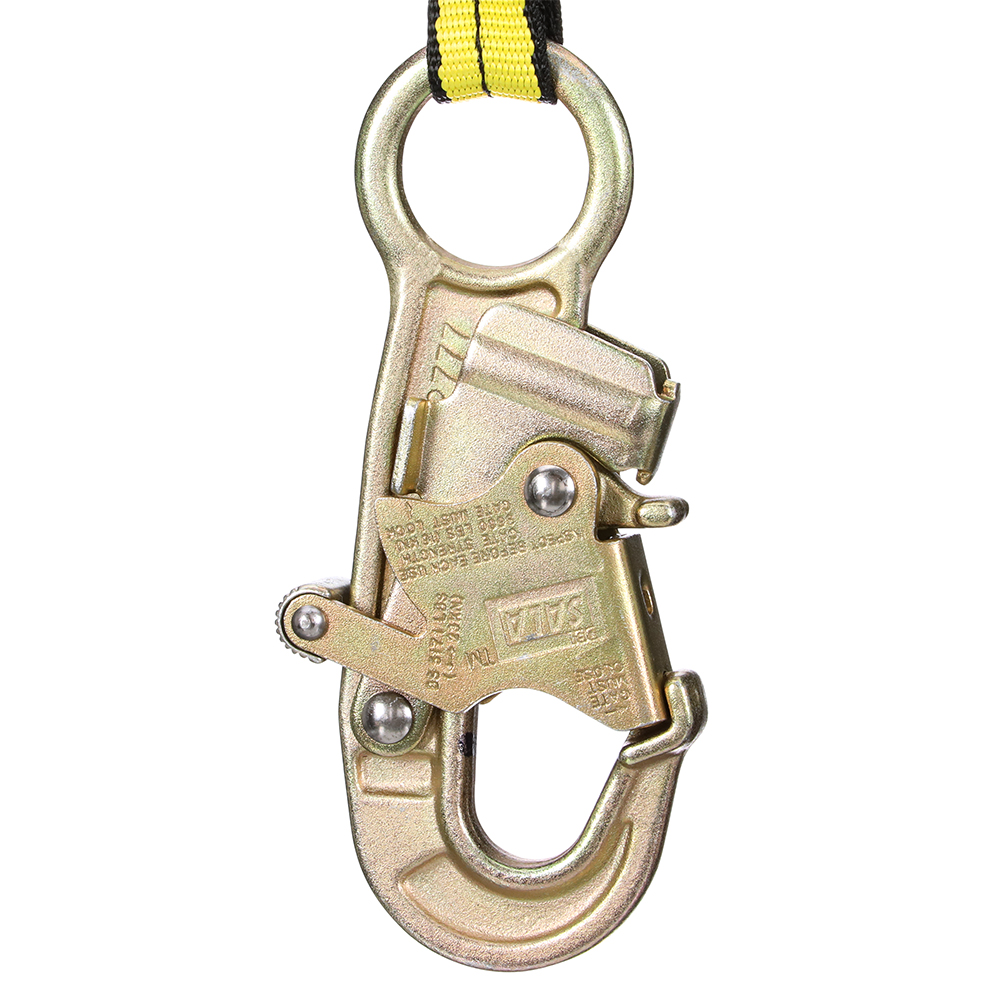

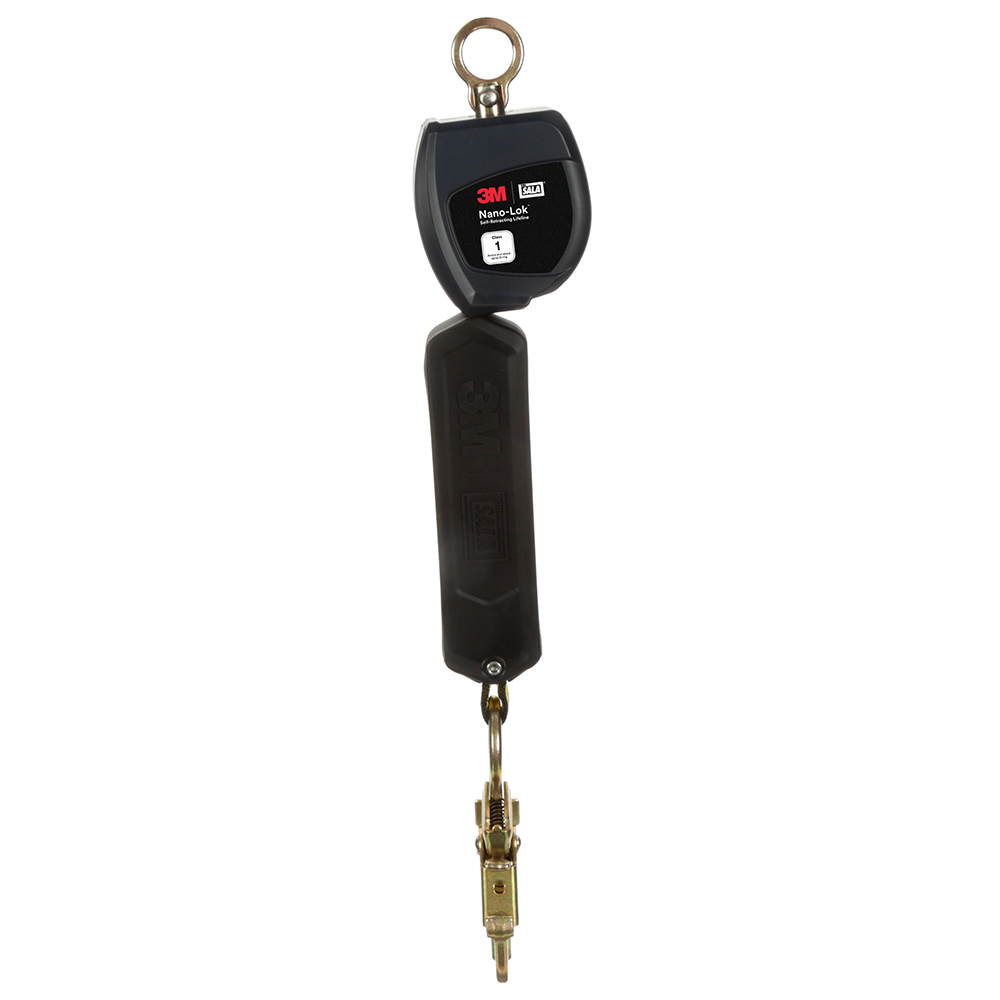

- Steel Swivel Snap Hook (3100534)

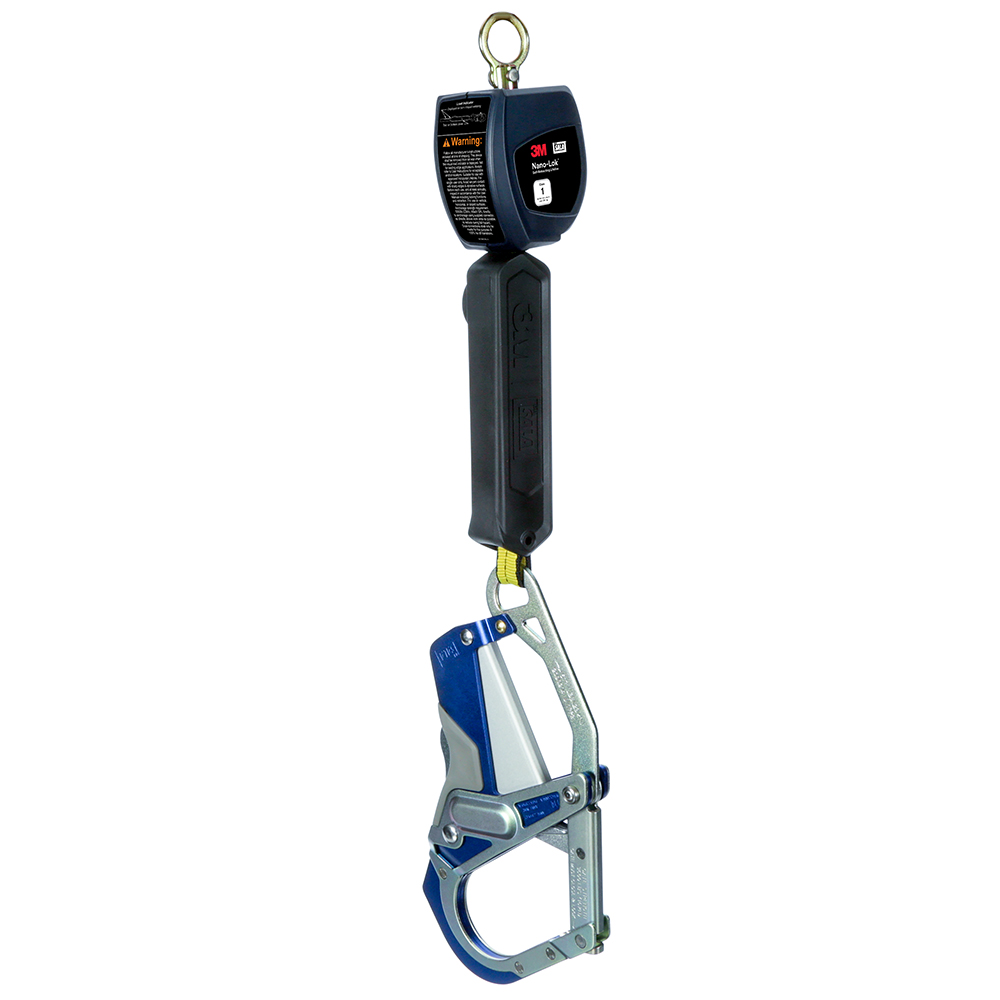

- Comfort Grip Hook (3100542)
