Home > 3M DBI-SALA Class 1 Direct Mount Nano-Lok Personal Twin-Leg Self-Retracting Lifeline

Model#: C-DS-3100546

Stock#: C-DS-3100546



3M DBI-SALA Class 1 Direct Mount Nano-Lok Personal Twin-Leg Self-Retracting Lifeline

Multiple Options Available

$369.99 to $684.99 Sale price: $369.99 to $684.99

THIS ITEM SHIPS FOR FREE!
Please select an option below

  • Compact & lightweight design
  • Quick activating speed sensing brake system
  • Durable thermoplastic housing

Lifeline Connector *

3M DBI-SALA Class 1 Direct Mount Nano-Lok Personal Twin-Leg Self-Retracting Lifeline

3M DBI-SALA Nano-Lok Self-Retracting Lifeline is lightweight with a compact design and industrial-strength durability. 3M DBI-SALA Nano-Lok Self-Retracting Lifeline offers versatility for many different industrial applications.

3M DBI-SALA Nano-Lok Self-Retracting Lifeline is ideal for direct connection to most harnesses. Whether the application requires single or twin-leg configurations, mounting to an overhead anchor, or connection directly to a harness, there are numerous models to choose from that suit almost any application. 3M DBI-SALA Nano-Lok Self-Retracting Lifeline locks quickly stop a fall within inches - providing more protection at low heights. These features are key safety improvements and provide the user with additional security on the job.

Features:

  • Compact & lightweight design
  • Quick activating speed sensing brake system
  • Durable thermoplastic housing
  • Swiveling anchorage loop
  • Built-in connector for direct attachment to harness
  • High-capacity external energy absorber and impact indicator
  • RFID equipped and compatible with the inventory management system
  • Available in multiple styles and configurations

Specifications:

  • ANSI Class Level: Class 1
  • Average Arrest Force (Imperial): 1125 lbf (ANSI), 1125 lbf (OSHA 130 lb - 310 lb)
  • Average Arrest Force (Metric): 5 kN (ANSI), 5 kN (OSHA 130 lb - 310 lb)
  • Brands: DBI-SALA
  • Connected Safety ID Equipped: Yes
  • Harness Connection Hook Material: Zinc Plated Steel
  • Harness Connection Type: Single Pin Connector
  • Housing Material: Nylon Thermoplastic
  • Housing Type: Thermoplastic
  • Install Type: Portable & Removable
  • Leg Count: Twin-Leg
  • Lifeline Connection Type: Carabiner
  • Lifeline Hook Material: Aluminum
  • Lifeline Length (Imperial): 6 ft
  • Lifeline Length (Metric): 1.8 m
  • Lifeline Material: Web
  • Maximum Arrest Force (Imperial): 1800 lbf (ANSI), 1800 lbf (OSHA 130 lb - 310 lb)
  • Maximum Arrest Force (Metric): 8 kN (ANSI), 8 kN (OSHA 130 lb - 310 lb)
  • Maximum Number of Users: One
  • Mounting Type: Direct to Harness Back
  • Overall Length (Imperial): 6 ft
  • Overall Length (Metric): 1.83 m
  • Product Color: Blue
  • Product Series: Nano-Lok
  • Product Type: Twin-Leg Quick Connect Self-Retracting Lifeline - Web
  • Recommended Industries: Construction, Metal Fabrication, Manufacturing, Mining, Oil & Gas, Industrial, Utility, Transportation, Renewable, Wind Energy, General Industrial, Utilities, Automotive, Warehousing, Pharmaceutical, General Manufacturing, Maintenance, Military Maintenance, Repair & Operation (MRO), General Industry, Metal Production & Fabrication
  • Specifications Met: 29 CFR OSHA 1926.502, ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1910.140
  • Weight (Imperial): 4.007 lb.
  • Weight (Metric): 1.818 kg
  • Weight Capacity (Imperial): 420 lb.
  • Weight Capacity (Metric): 190 kg

Available Options:

  • Lifeline Connector:

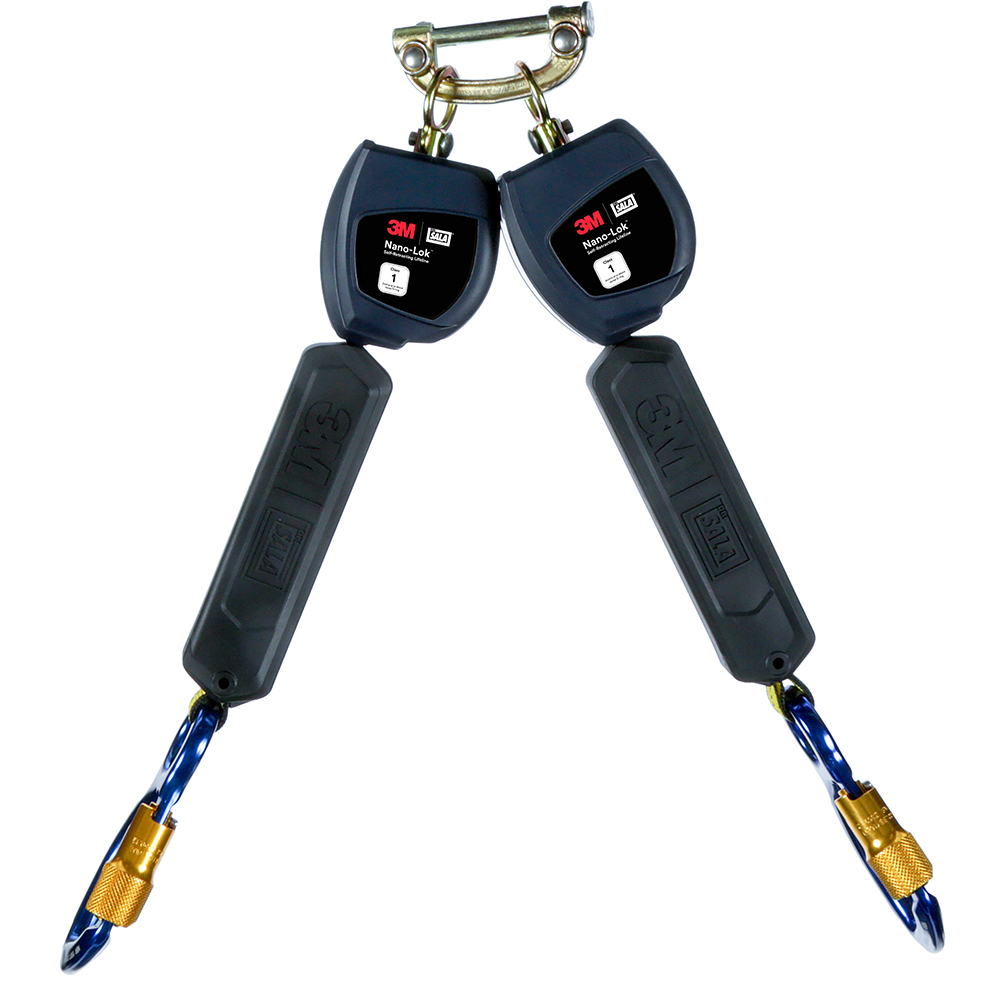

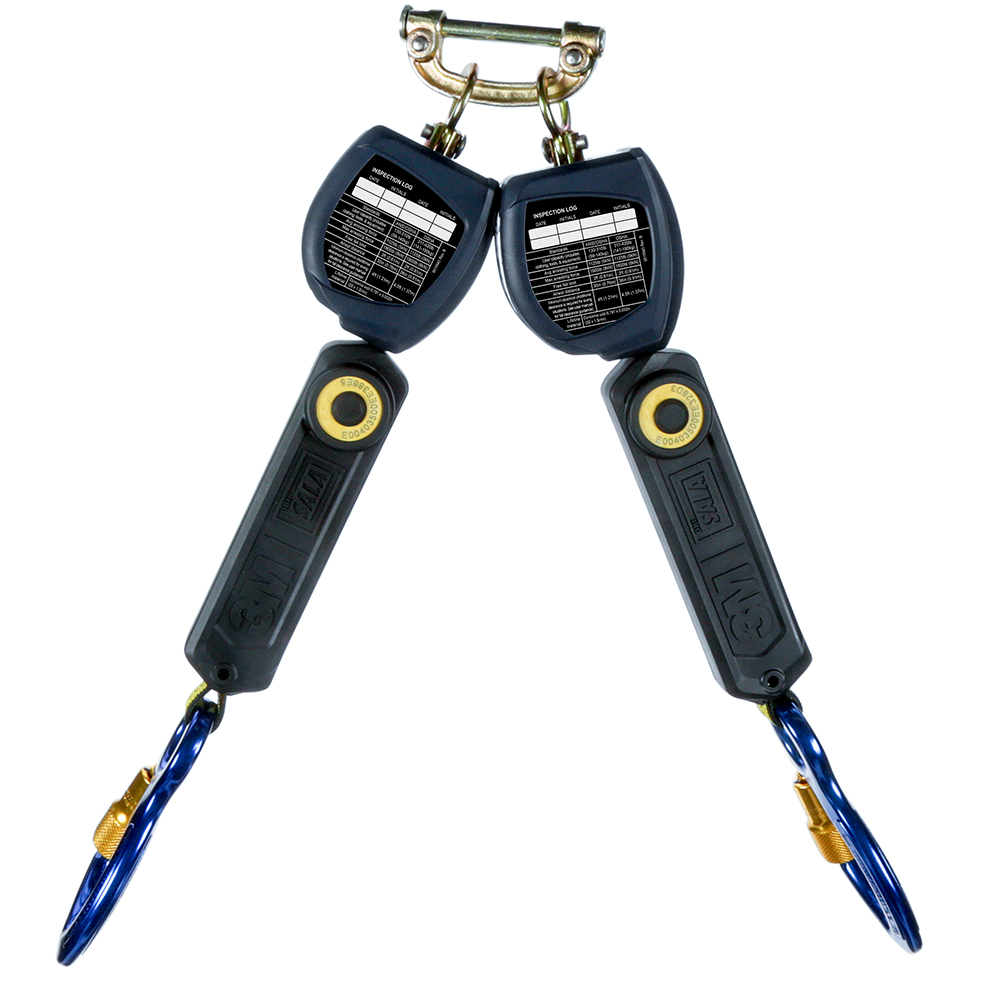

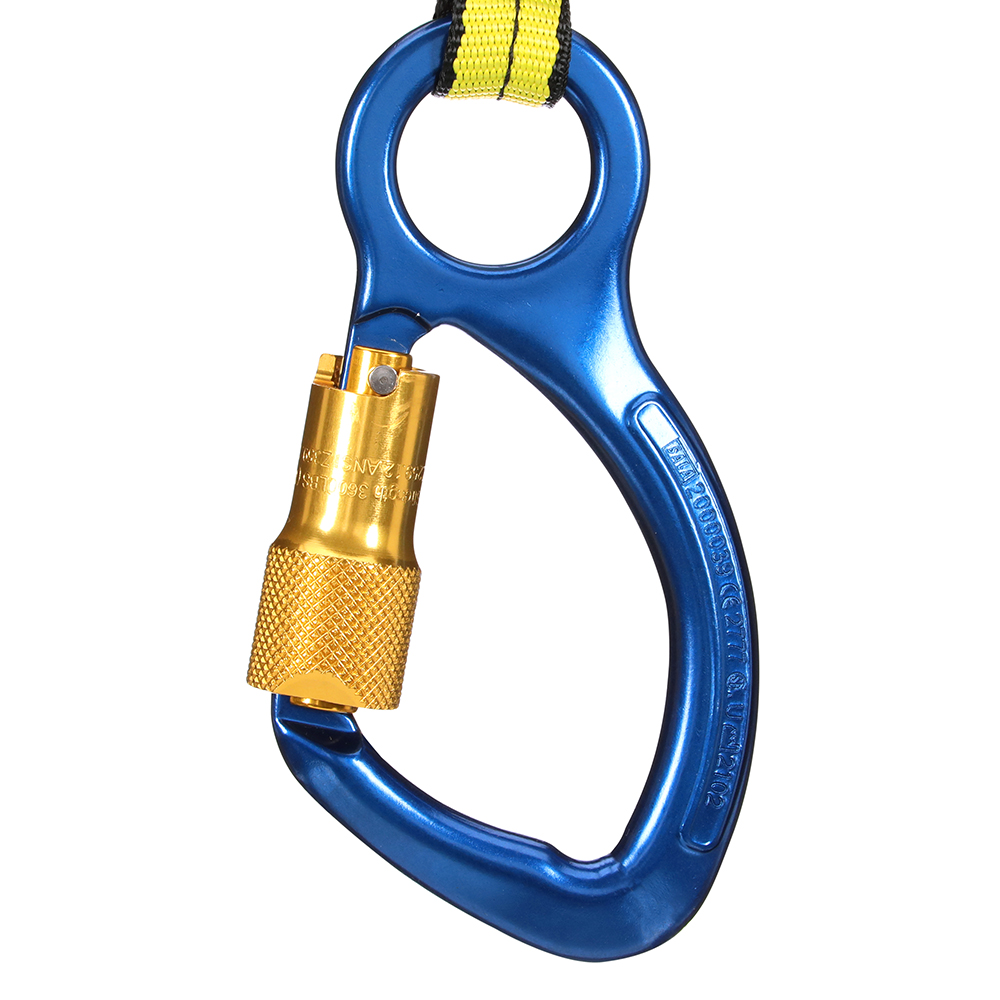

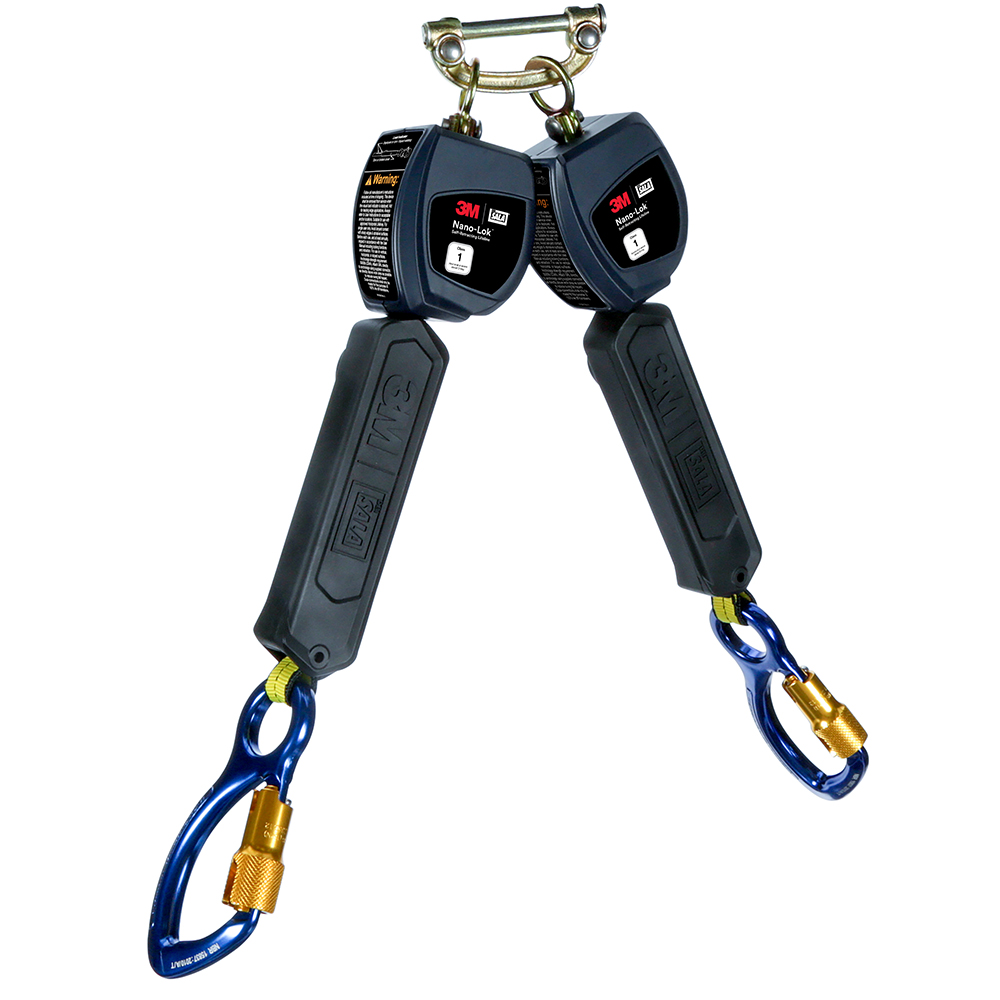

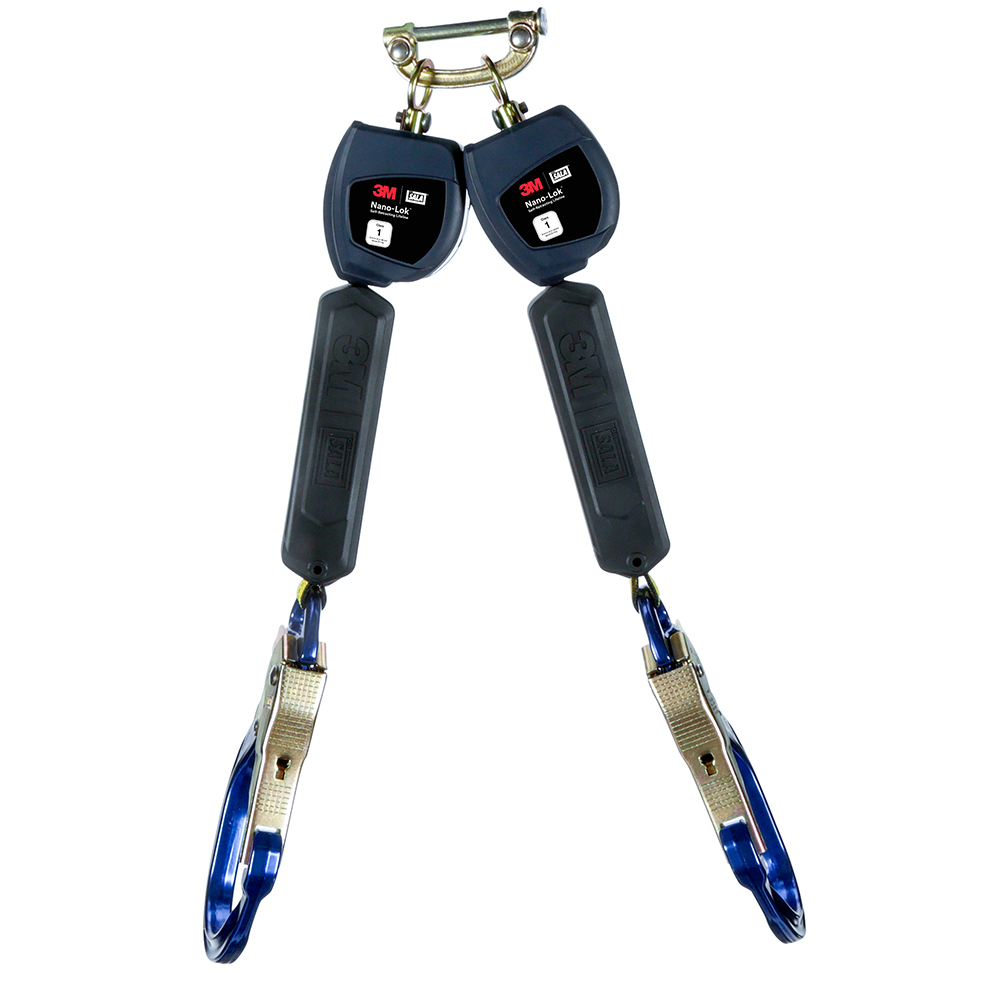

    • Aluminum Carabiner (3100546)

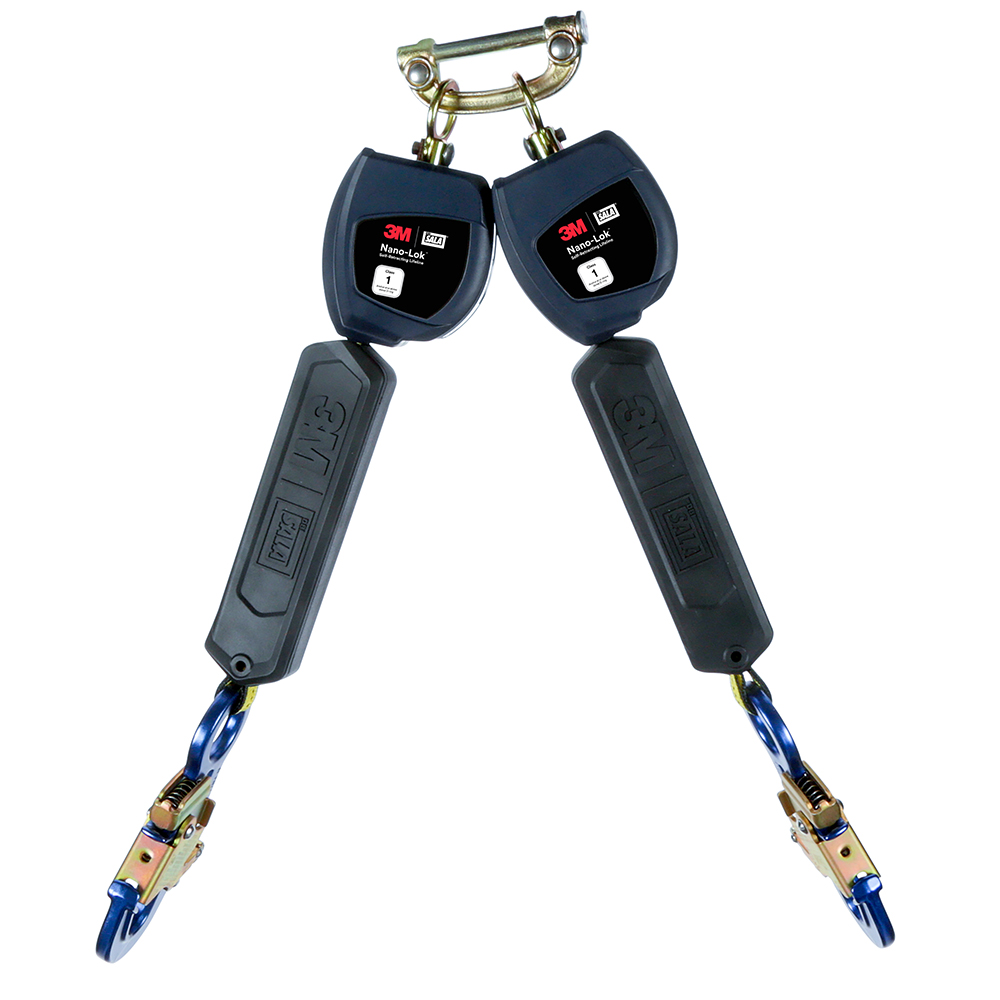

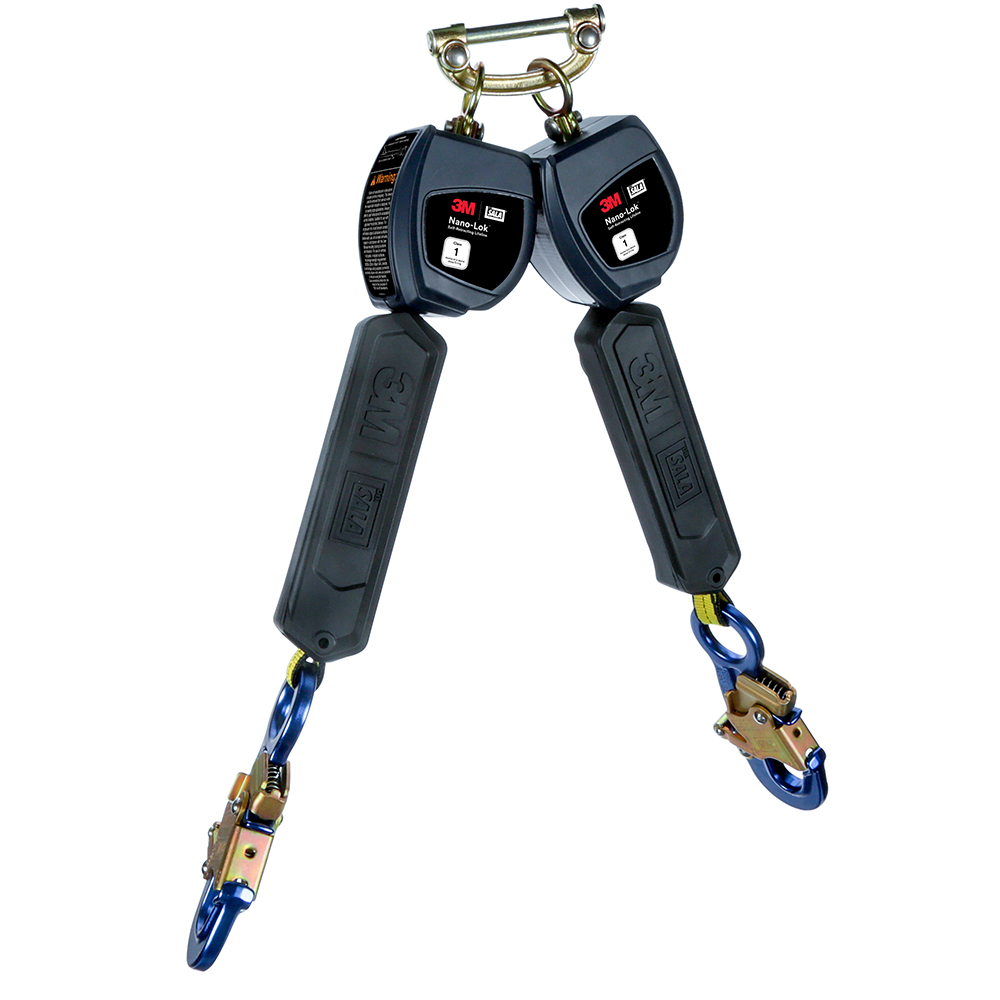

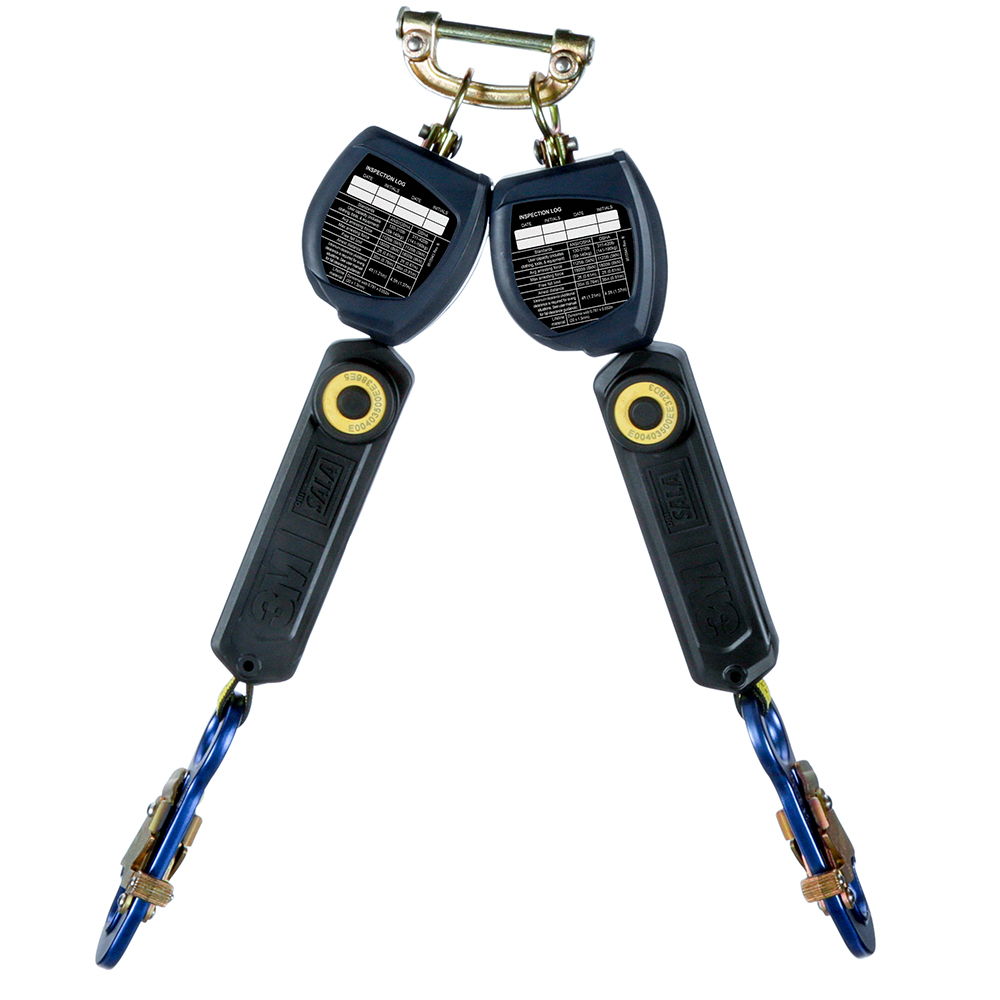

    • Aluminum Swivel Snap Hook (3100547)

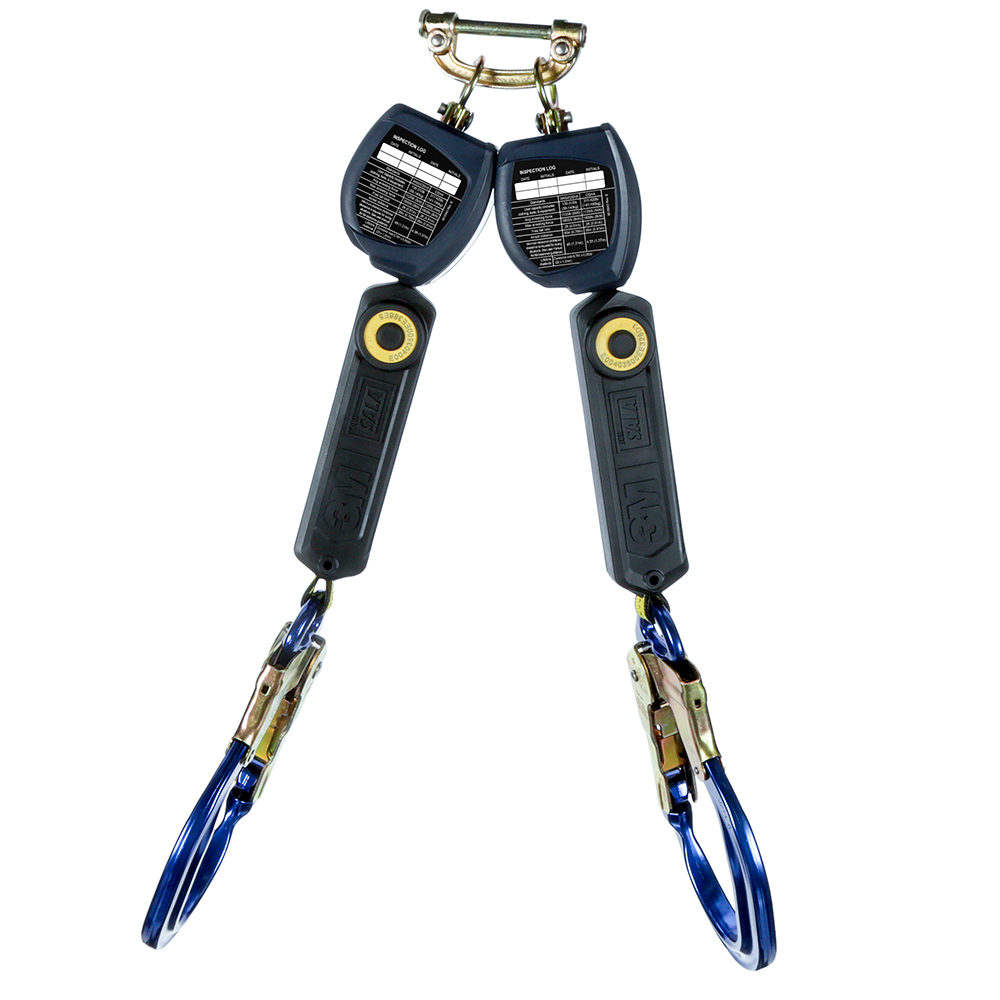

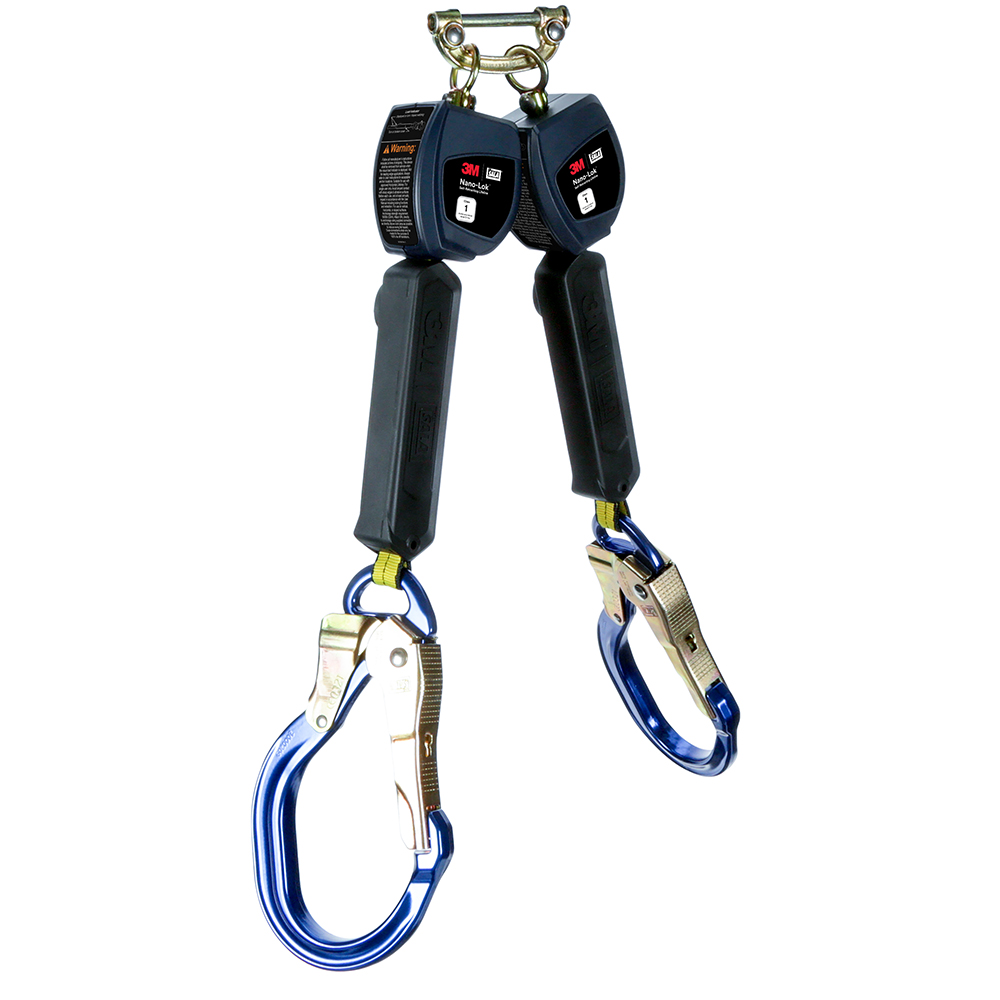

    • Aluminum Rebar Snap Hook (3100553)

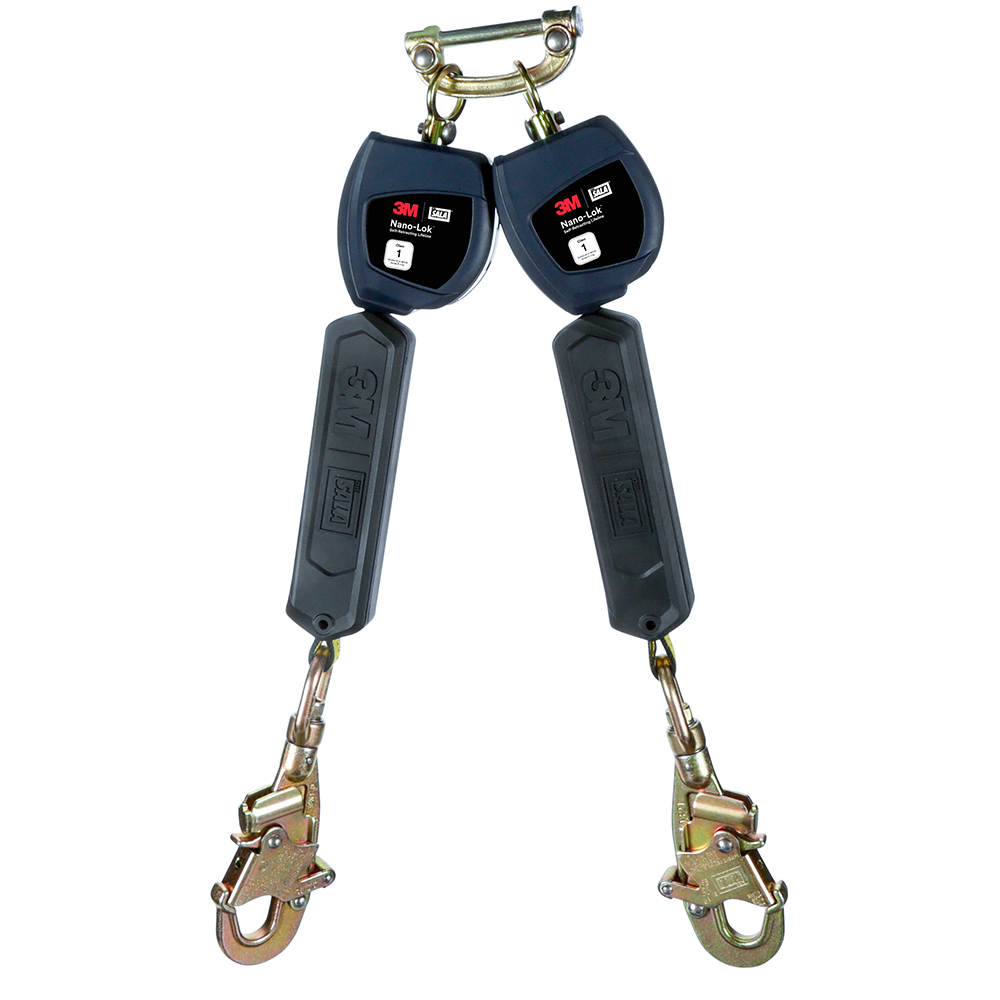

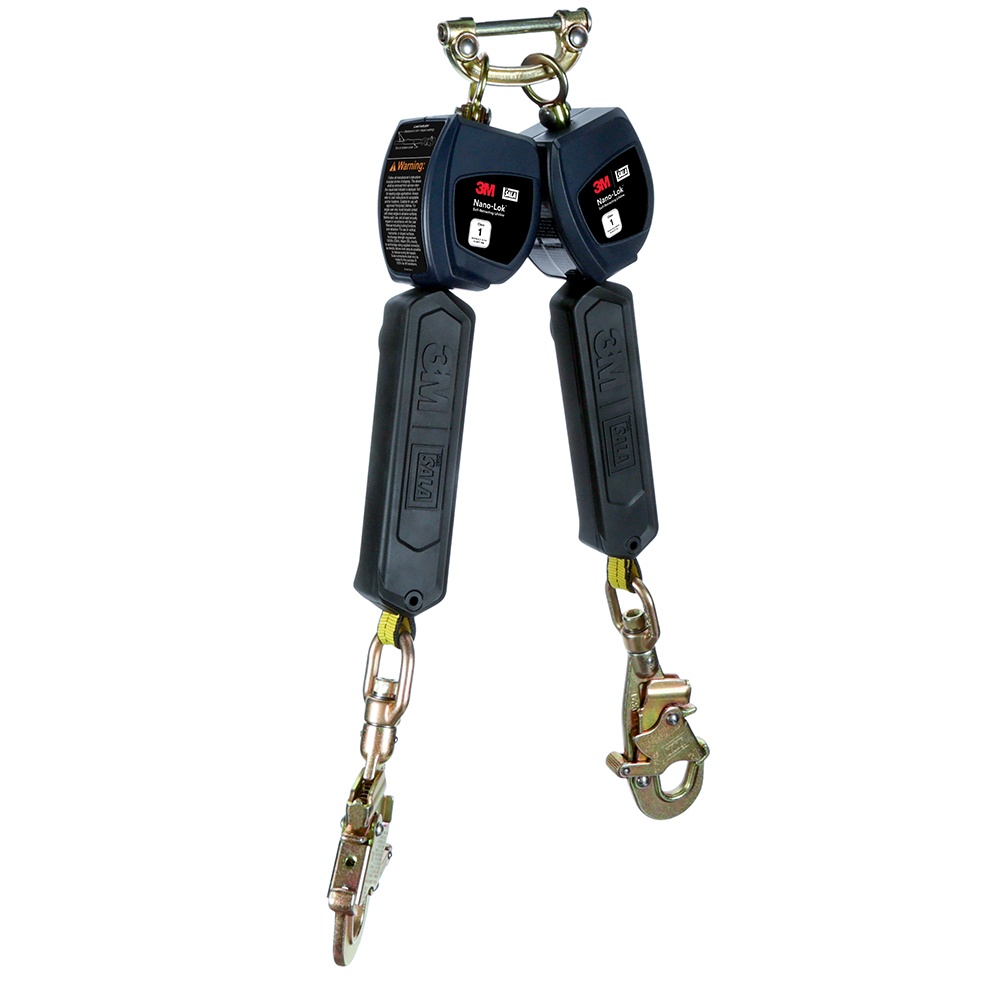

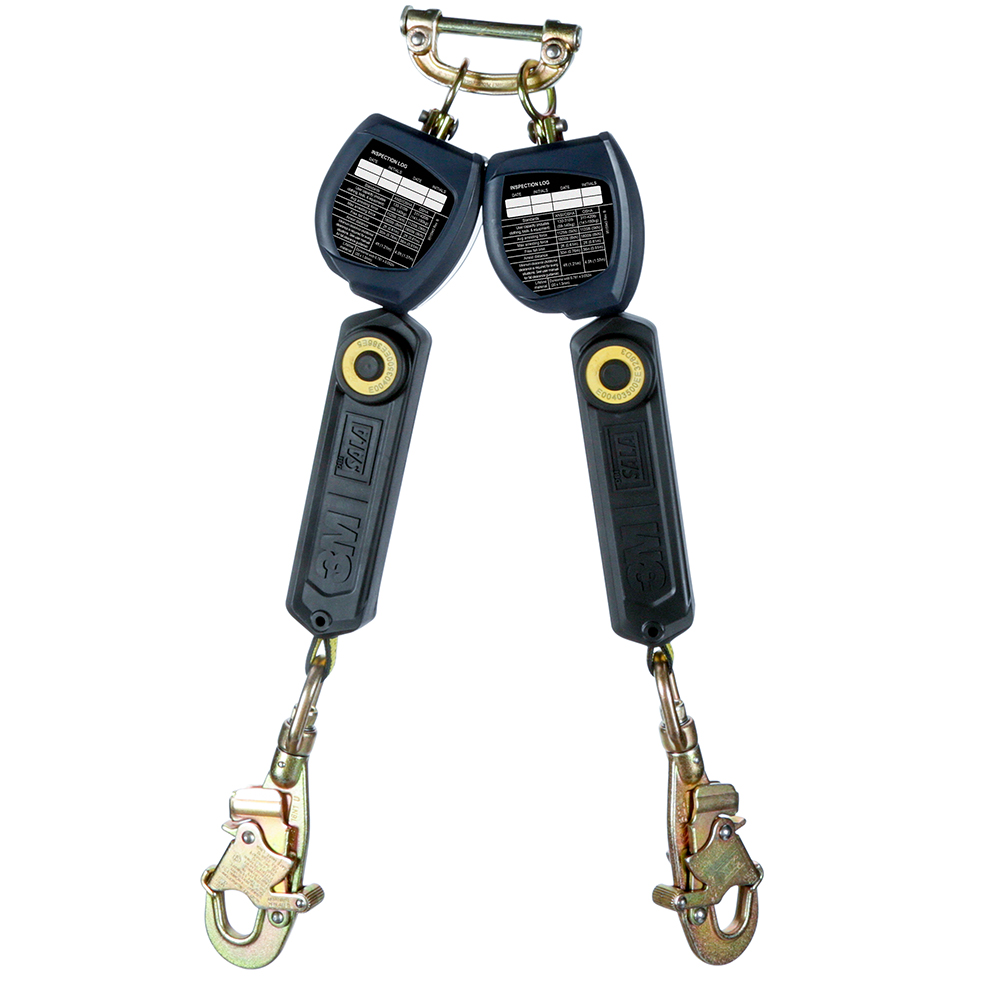

    • Steel Swivel Snap Hook (3100549)

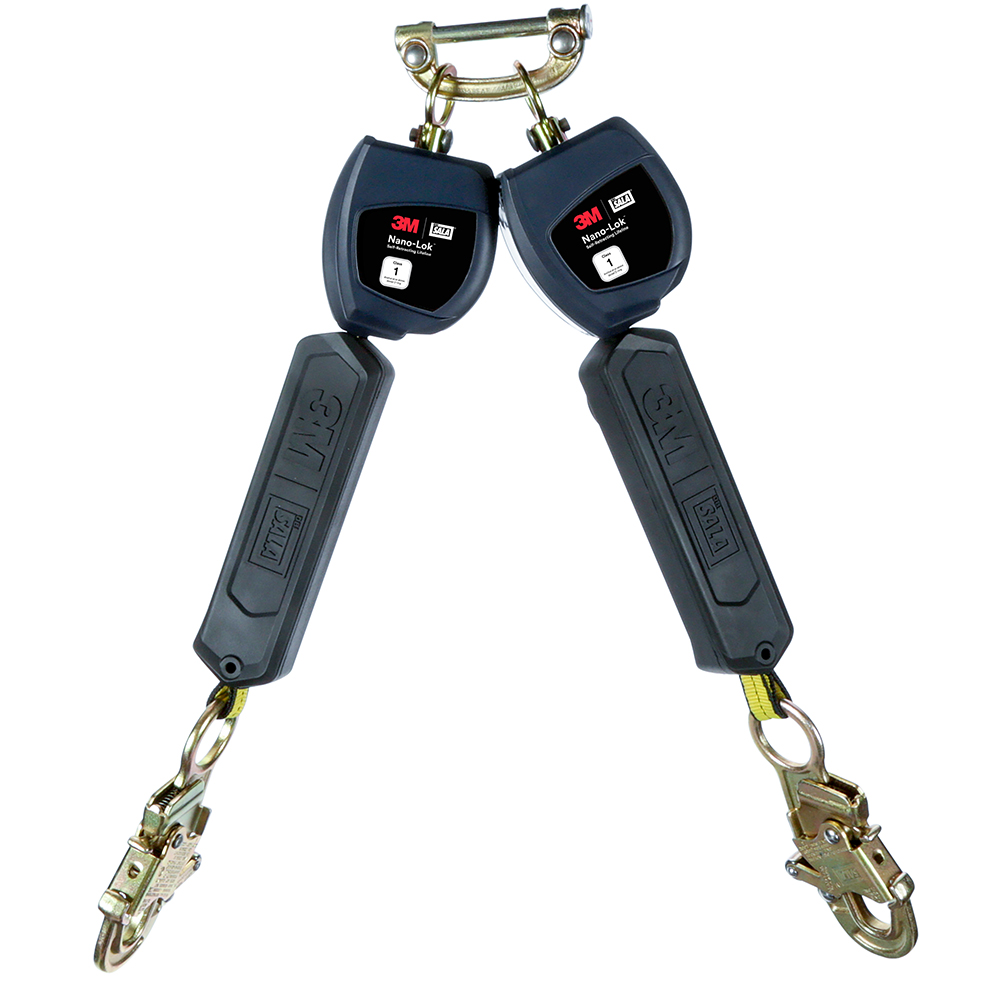

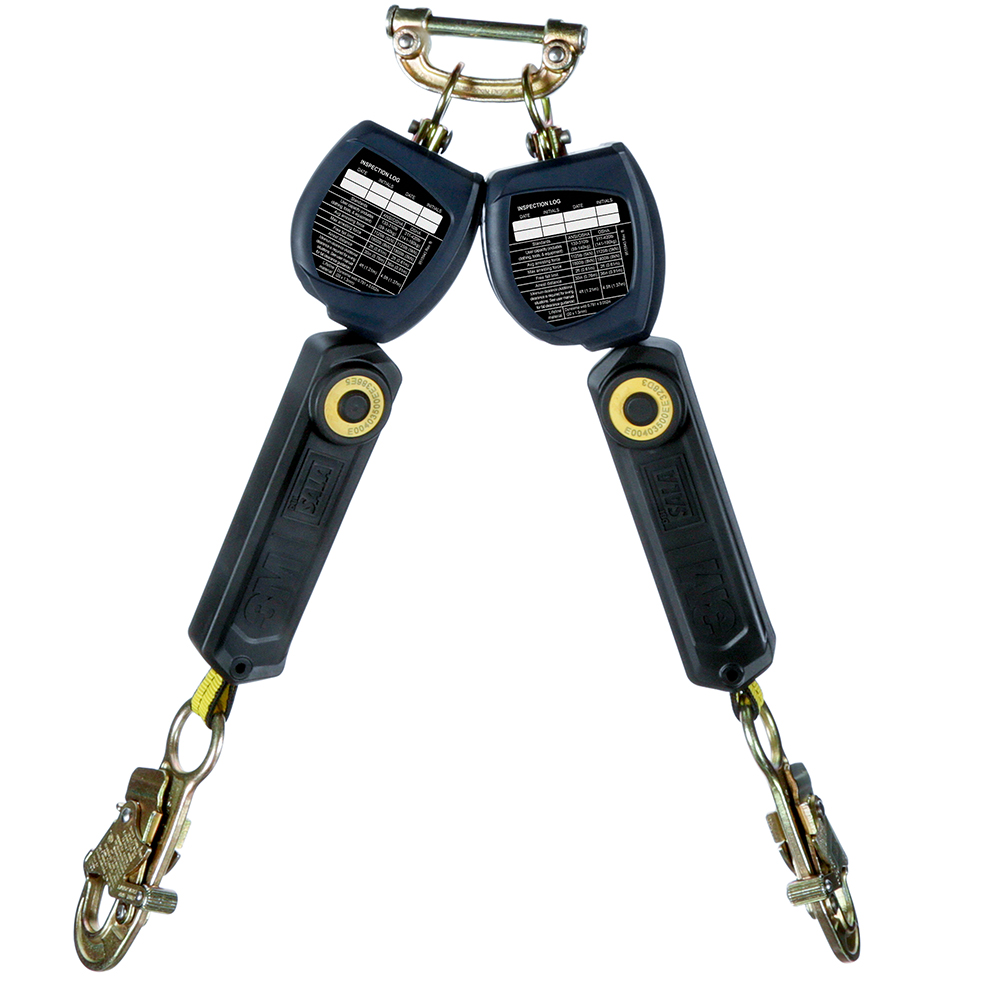

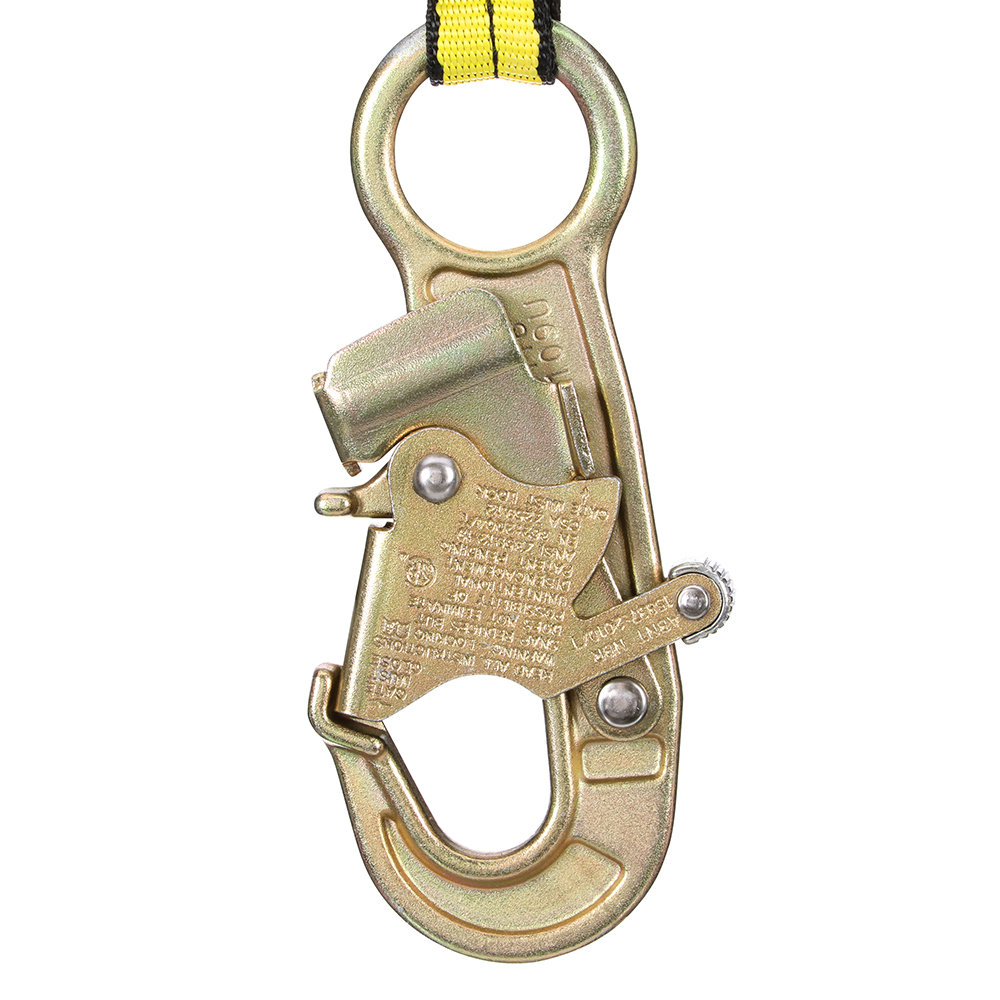

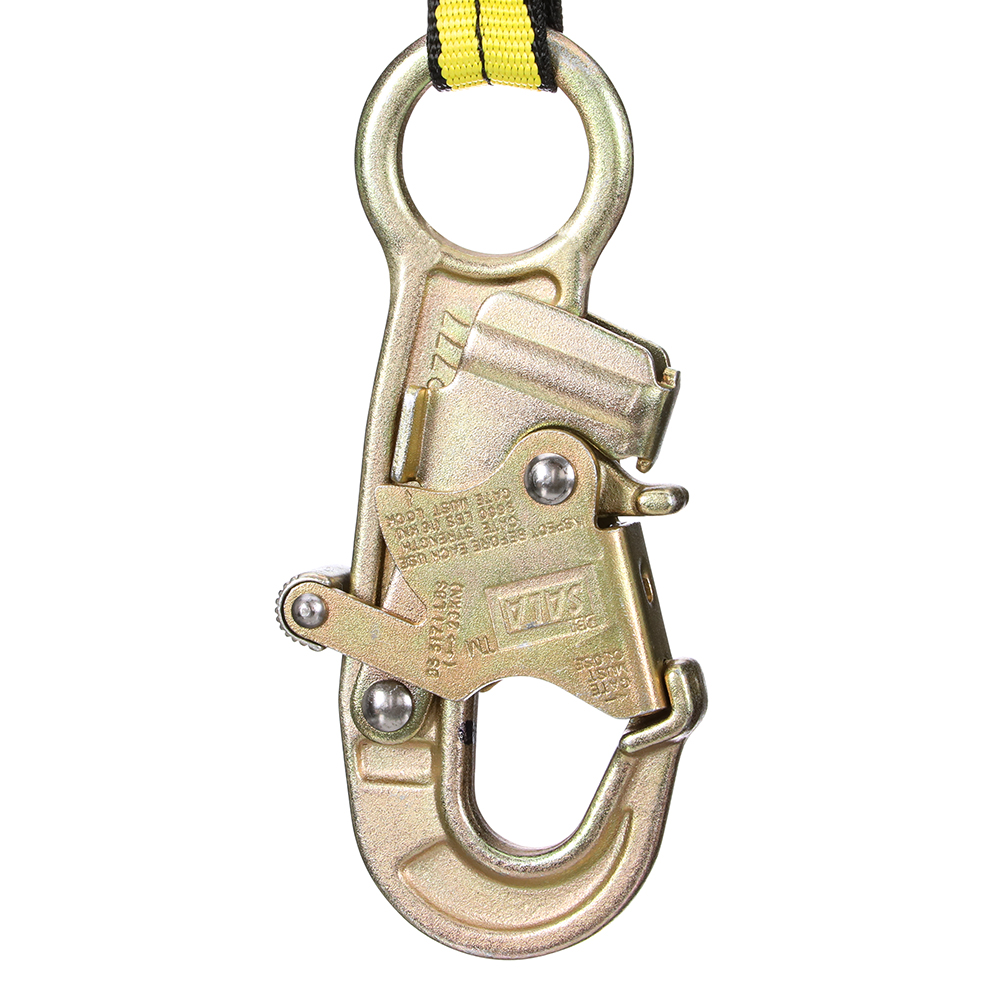

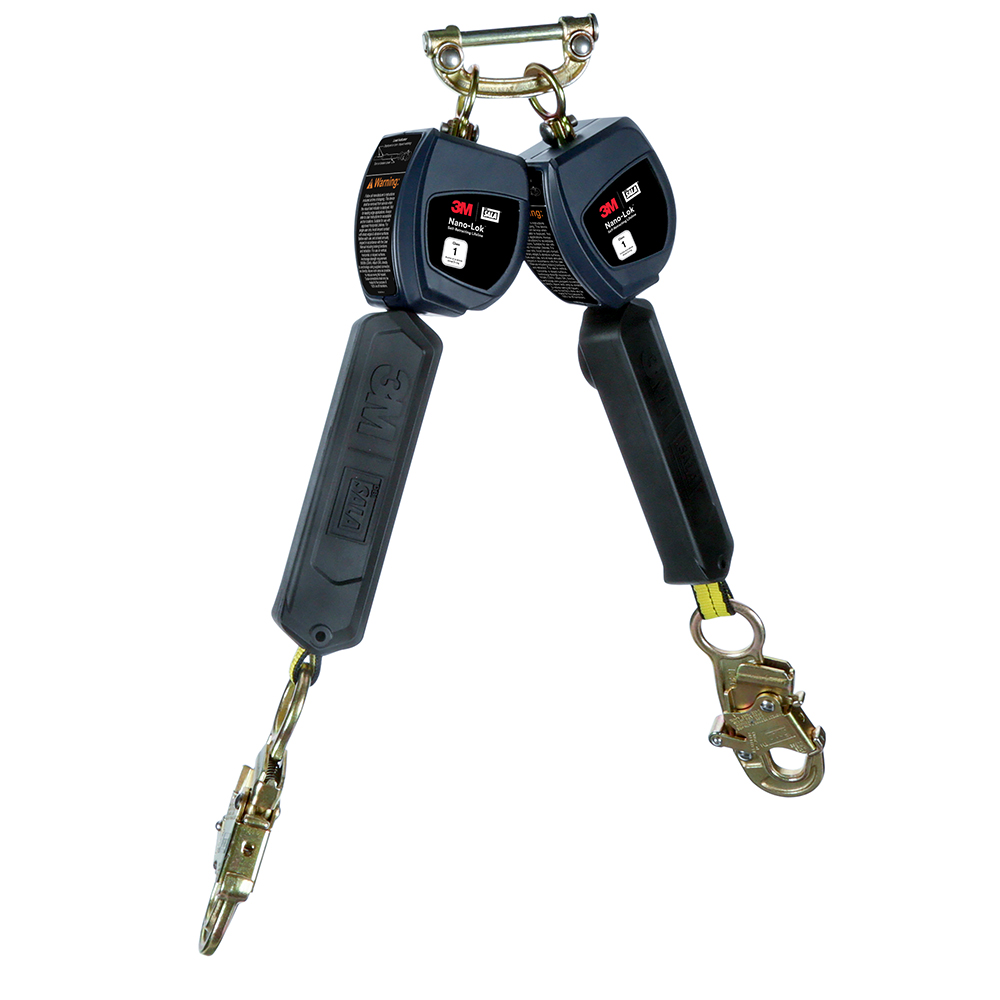

    • Steel Snap Hook (310550)

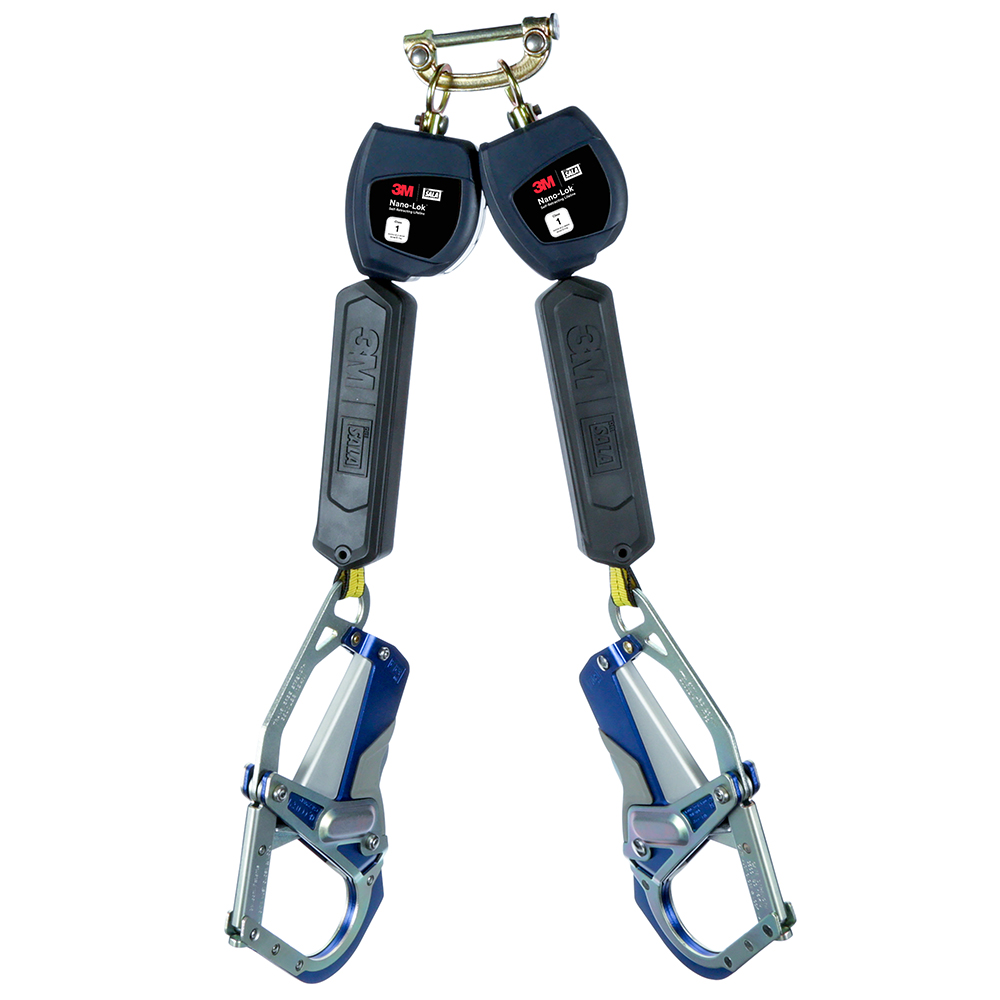

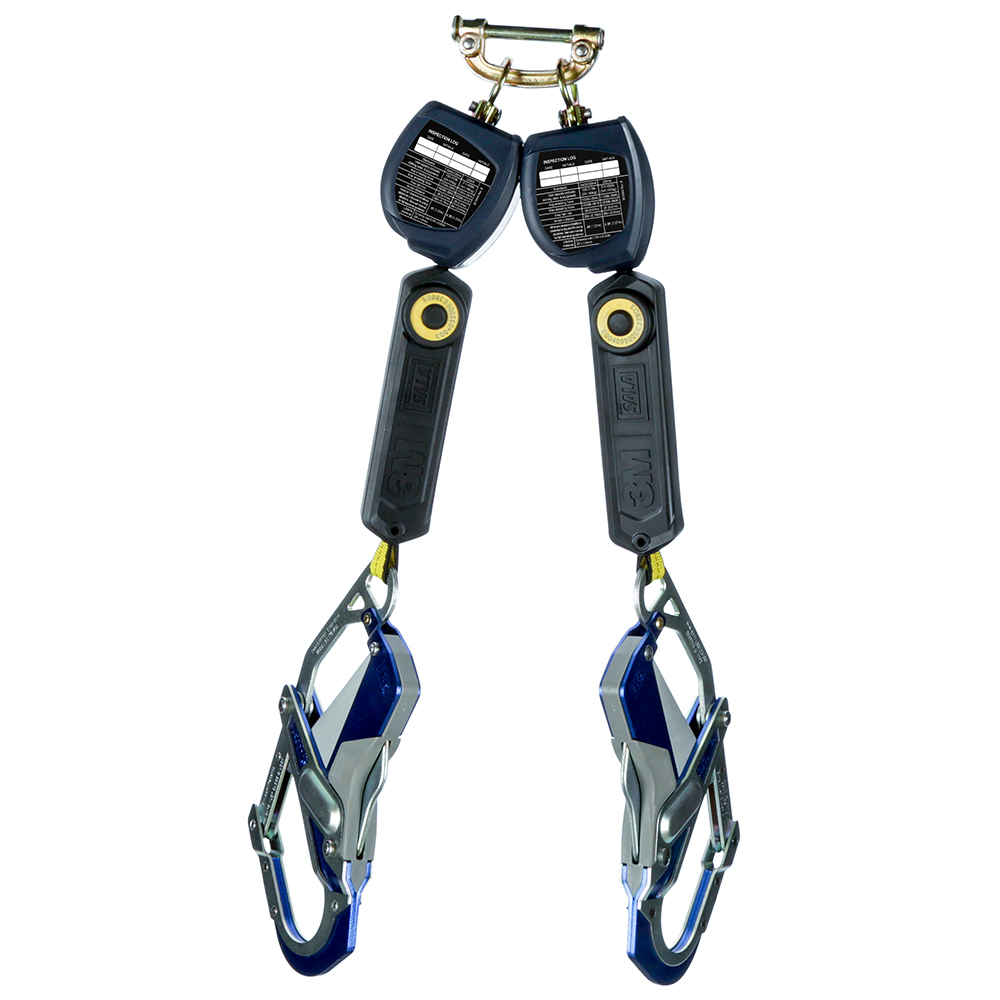

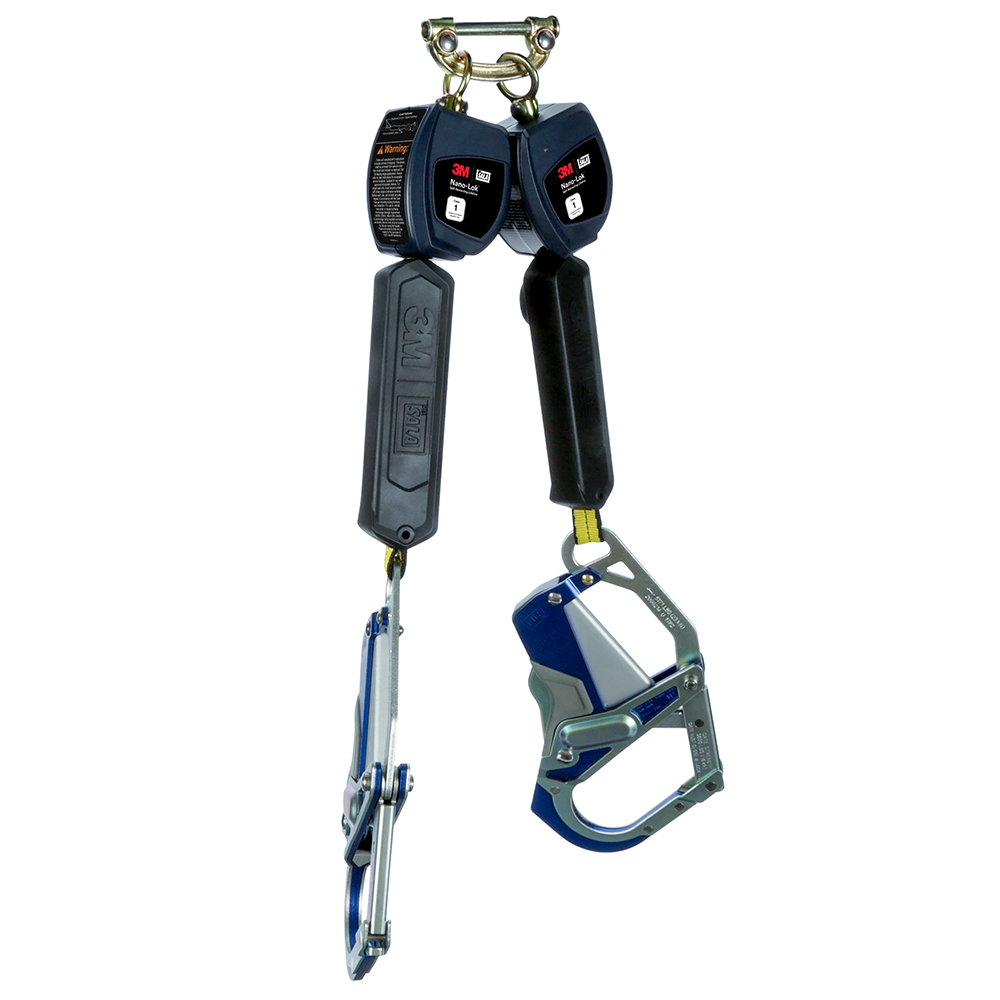

    • Comfort Grip Hook (310554)

C-DS-3100546

Capacity: 420 lbs (190 kg)
Length: 6 feet
Manufacturer: 3M | DBI SALA
Material: Nylon Thermoplastic
Standards: 29 CFR OSHA 1910.140
29 CFR OSHA 1926.502
ANSI/ASSP Z359.14-2021
