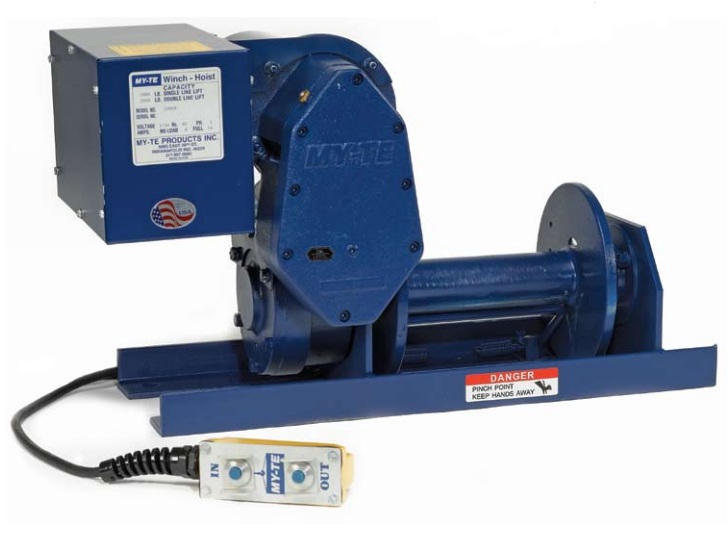

100AB My-Te Electric Winch Hoist

1,000-lb single-line or 2,000-lb double-line lift

One of My-te’s most popular winch-hoists, the 100AB is your 115V AC solution for medium-duty in-plant or mobile applications. With a 1,000-lb single-line or 2,000-lb double-line lift capacity, and a triple redundant braking system for optimum load control, the 100AB is great for multiple-story construction site work and conveyor belt maintenance.







APPLICATIONS
This easily portable unit is designed for multiple-story construction worksites and long-lift applications, plant maintenance, elevator construction and repair as well as moving rolling loads weighing up to 8,000 lbs.



FEATURES

• 115V brake motor
• Worm gear reduction
• Dynamic braking for instant stopping
• Rugged construction
• Low voltage 10′ pendant control
• High-capacity cable drum
• Frictionless bearings

SPEEDS:
    • 59 RPM: No-load drum speed
    • 30 FPM: No-load drum speed
    • 25 FPM: 500 lbs – single-line lift
    • 20 FPM: 1,000 lbs – single-line lift
    • 10 FPM: 2,000 lbs – double-line lift
Note: All speeds are based on one layer of cable on drum



POWER SOURCE OPTIONS

115V OR 220V AC
