Vertical lifelines or lanyards must have a minimum breaking strength of 5,000 pounds, and be protected against being cut or abraded. Each employee must be attached to a separate vertical lifeline, except during the construction of elevator shafts, where two employees may be attached to the same lifeline in the hoistway, provided:
• Both employees are working atop a false car that is equipped with guardrails. • The strength of the lifeline is 10,000 pounds (5,000 pounds per employee). • All other lifeline criteria have been met.
Self-retracting vertical lifelines and lanyards that automatically limit free fall distance to 2 feet or less must be capable of sustaining a minimum tensile load of 3,000 pounds when in the fully extended position. If they do not automatically limit the free fall to 2 feet or less, ripstitch lanyards, and tearing and deforming lanyards, must be capable of sustaining a minimum tensile load of 5,000 pounds when in the fully extended position.
|

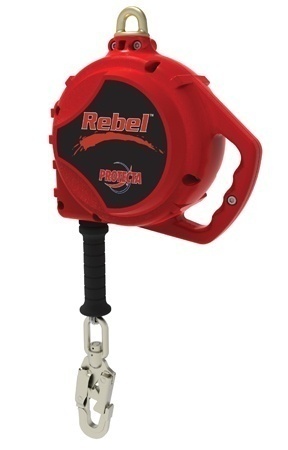

3590550 Protecta Rebel 50' Self Retracting Lifeline Incorporates a lifeline that extends and retracts automatically, allowing unhindered movement around the work area. A brake activates in the event of a fall, stopping the worker within inches. • 420 lb. (190 kg) capacity • 3,600 lb. (1,633 kg) gate capacity • Side cable exit • Top swivel
|
|
7276WR, 20' FallTech Dyneema Web Contractor SRL • Weighs just 4 pounds, making it the lightest and toughest 20' SRL on the market! • Light weight aluminum drum center and ABS plastic housing • 3/4" Dyneema webbing has high strength and superior resistance to cuts and abrasion. (Rated at 4,500 lbs) • Load-indicating swivel carabiner and connecting carabiner with 3,600 lbs. gate strength
|
|

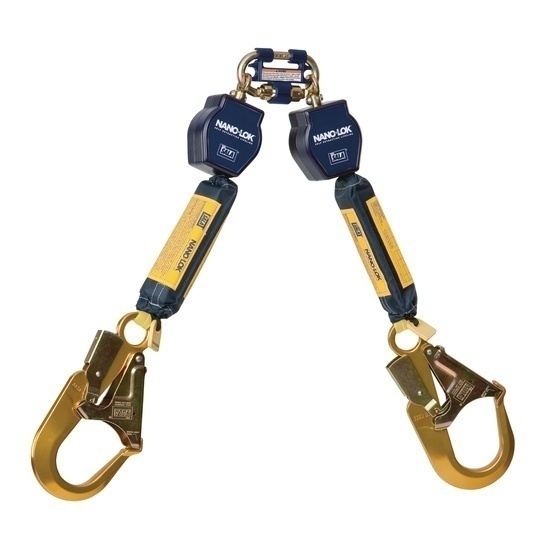

3101277 DBI Sala Nano-Lok Twin Leg SRL, Aluminum Rebar Hooks • Swiveling anchorage loop reduces twisting of the webbing. • Specially designed high strength Dynema webbing provides excellent cut-resistant, abrasion resistant, chemical and UV resistant characteristics. • Compact, impact-resistant housing. • Rated for a total combined weight up to 420 lbs.
|
|
