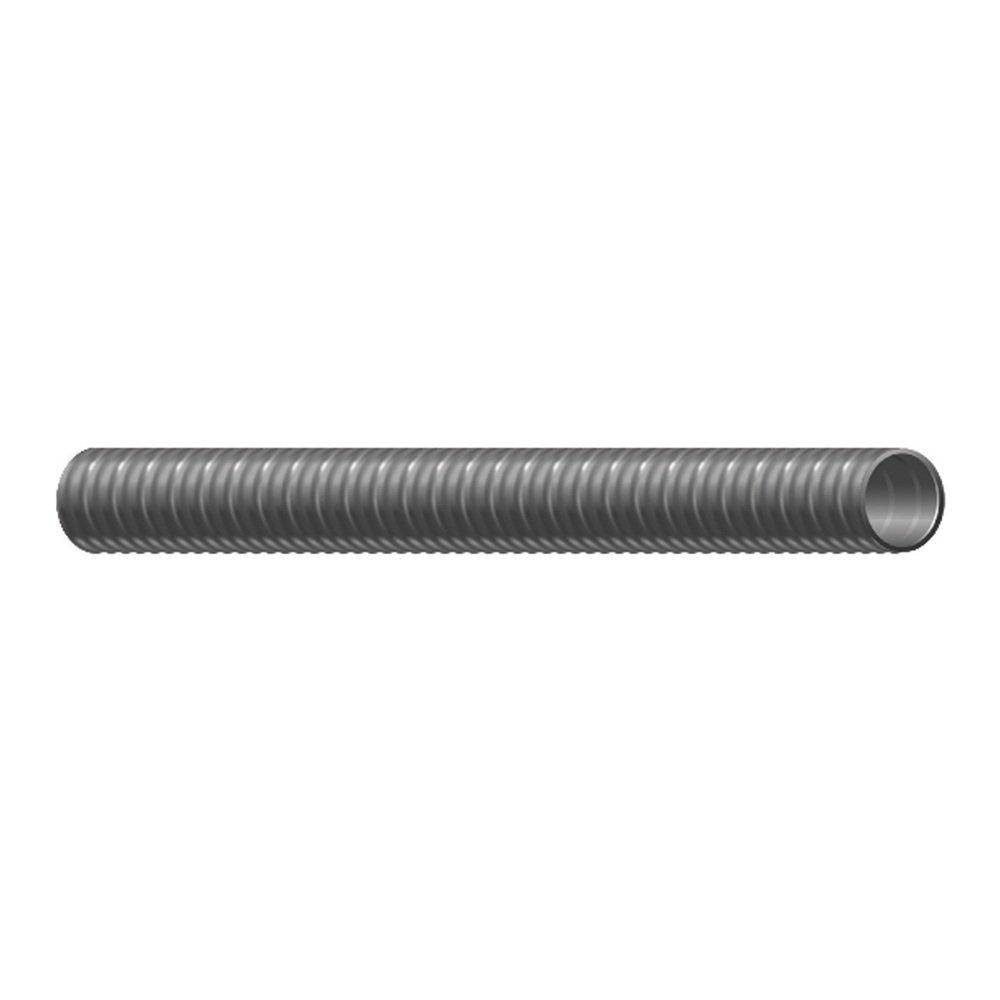

Southwire Ultratite Nonmetallic Gray Conduit 2-Inch x 50-Feet

Southwire Ultratite Nonmetallic Gray Conduit 2-Inch x 50-Feet

The Southwire Liquidtight Flexible Nonmetallic Conduit is UL/CSA Listed, oil-resistant, sunlight-resistant, crush-resistant, and is temperature rated -30°C to 80°C.

Applications:

• For the installation and protection of electrical conductors
• Motor circuits - for conductors of motor feeders, branch and control circuits
• Where the conditions of installation, operation, or maintenance require flexibility or protection from liquids, vapors, solids, or weather
• Agricultural buildings per NEC 547.5
• Used in industrial and commercial applications for conveyors, blowers, cranes, air conditioners, machine tooling, and lubrication equipment
• Exposed or concealed installations
• Applications requiring movement, crossover connections, or tight bends
• For direct burial and encased in concrete
• For flexible connections to a swimming pool, spa, and hot tub motors per NEC 680.21(A)(3) & 680.42(A)(1)
• Electric signs and outline lighting supply and secondary-circuit conductors per NEC 600.7, 600.31 (1000 volts or less) & 600.32 (over 1000 volts)
• Hazardous locations - see Additional Applications Section on the following page for more details

Specifications:

• STOCK #: 55094801
• TRADE SIZE (IN): 2 inch
• INNER DIAMETER (MIN/MAX): 2.020 / 2.045 inch
• OUTER DIAMETER (MIN/MAX): 2.340 / 2.375 inch
• NOMINAL TOTAL WEIGHT (LBS/1000'): 620 lbs/1000'
• MIN. BEND RADIUS (IN): 22 inch
