PPC-Belden Mounting Clips for Permanent Mount Cable Molding

Mounting Clips are used to secure molding to wall. Mounting clips are attached to the surface every 4-feet, all cables or wires are then tie wrapped to the clip and secured.
An easy formula for determining the number of mounting clips needed is to multiply the pieces of 8 foot straight run (SR-050, SR075, SR100, SR200) x 2.5

Example:

• 1 box of 2 Inch Straight run contains 12 sections of 8 foot straight run (96 Linear feet) 12 x 2.5 = 30 of the CL200
• 1 box of 1 Inch Straight run contains 10 sections of  8 foot straight run (80 Linear feet) 10 x 2.5 = 25 of the CL100
• 1 box of 3/4 Inch Straight run contains 20 sections of  8 foot straight run (160 Linear feet) 20 x 2.5 = 50 of the CL075
• 1 box of 1/2 Inch Straight run contains 60 sections of 8 foot straight run (480 Linear feet) 60 x 2.5 = 150 of the CL050

Feature:

• Permanent mount
• Easily secures molding to wall
• Sturdy and durable construction

Available Sizes:

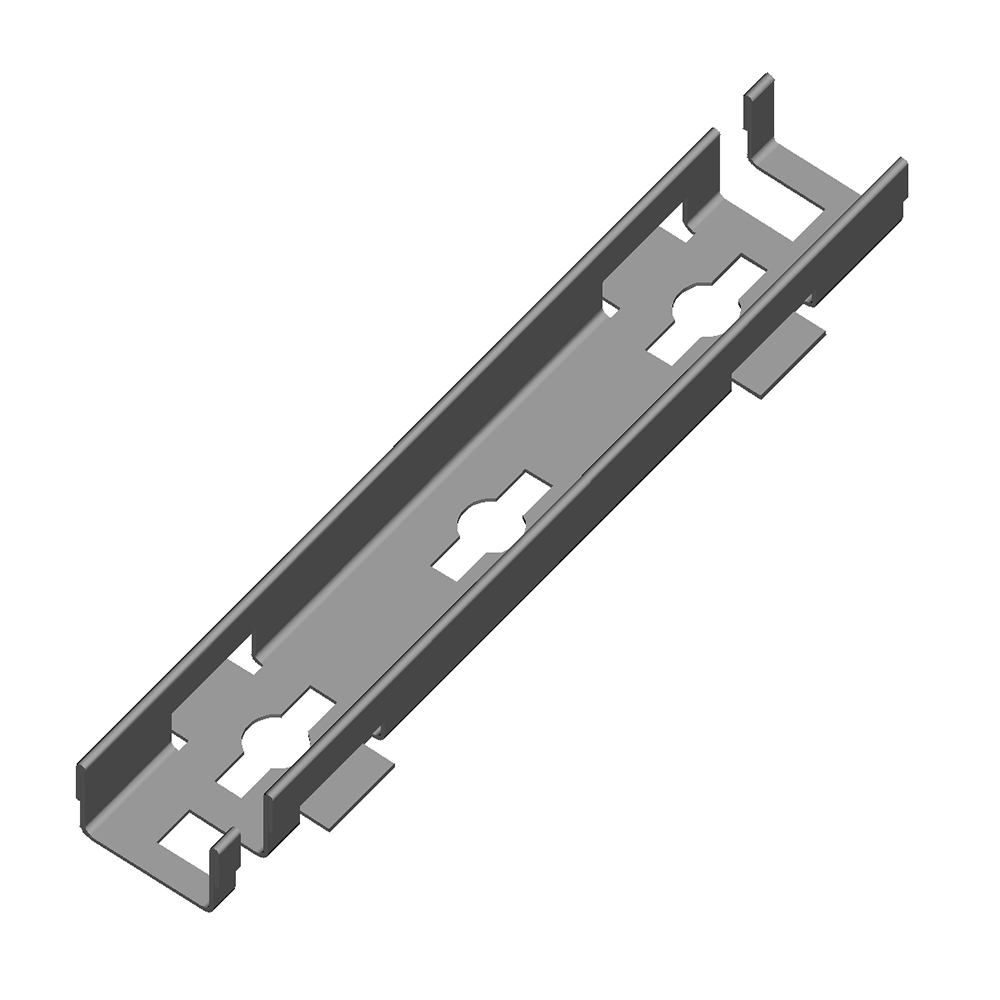

• 1/2 Inch mounting Clips CL050

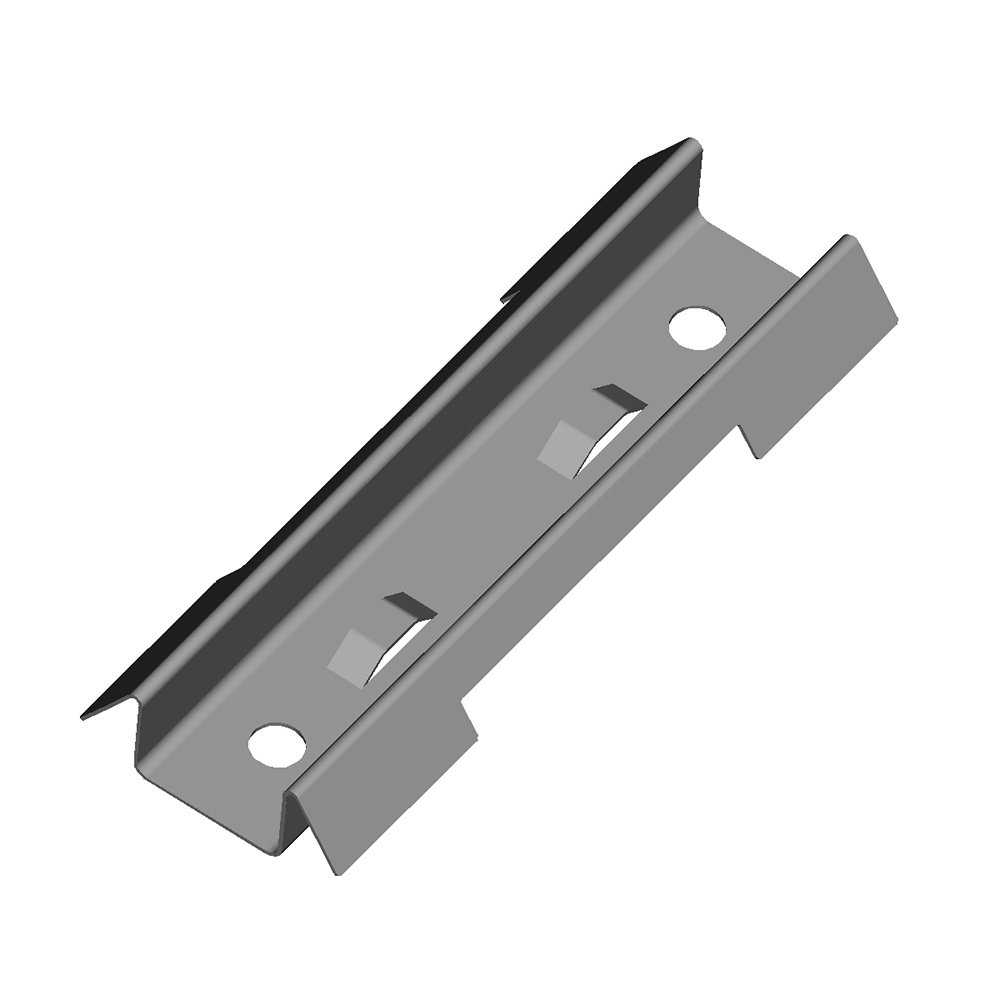

• 3/4 Inch mounting Clips CL075

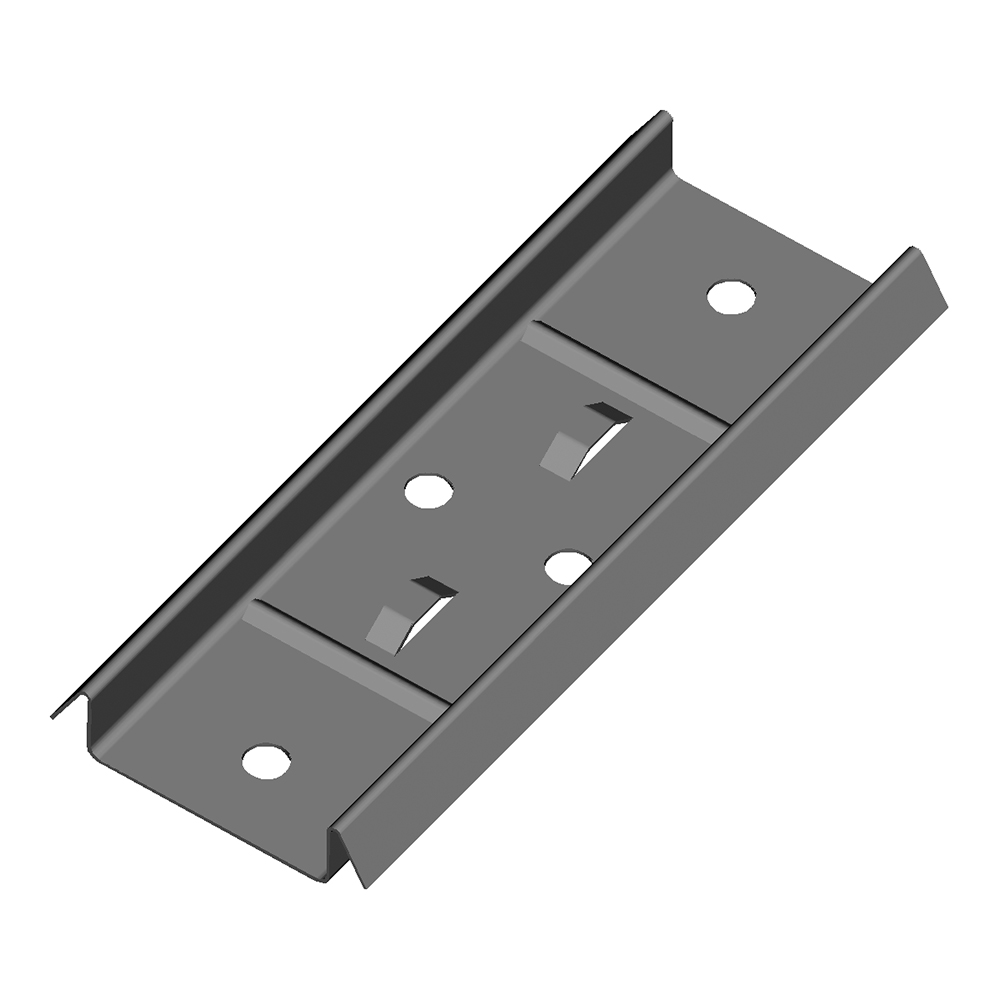

• 1 Inch mounting Clips CL100

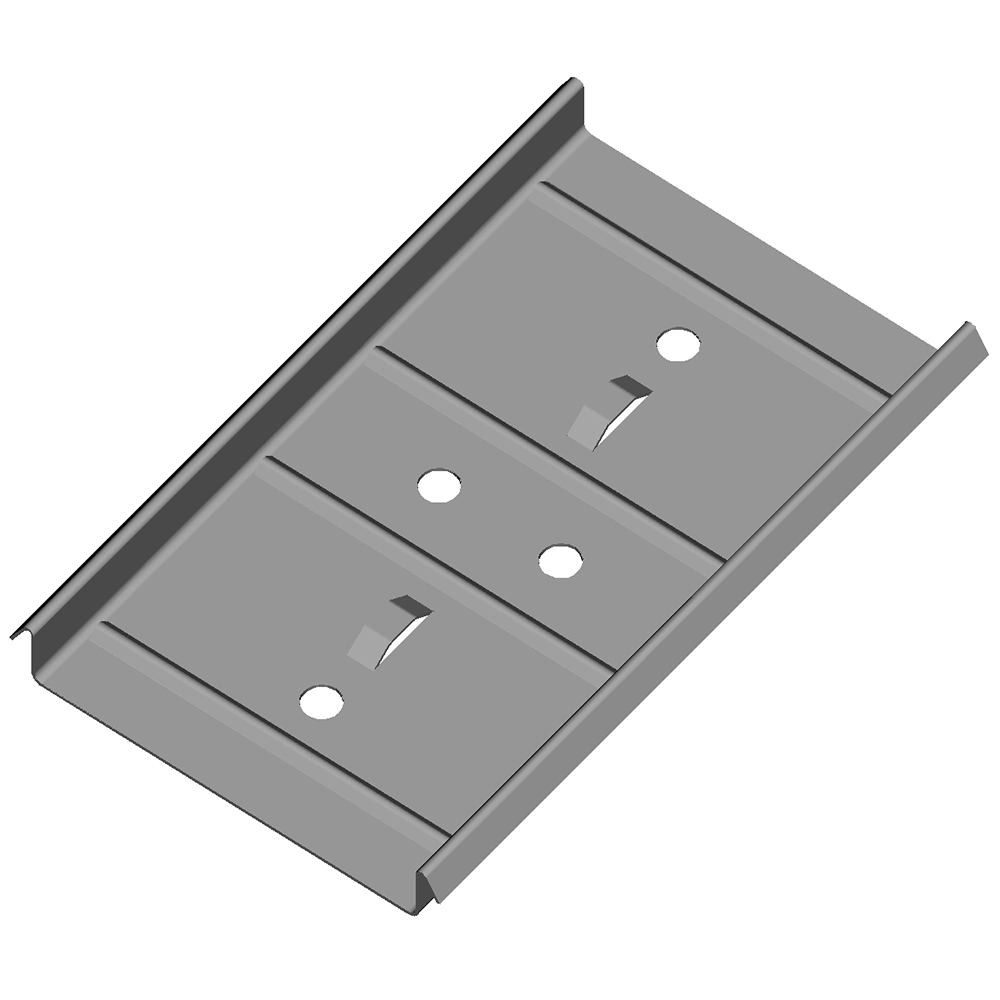

• 2 Inch mounting Clips CL200
