Home > Brands > Portable Winch > Portable Winch Gas-Powered Pulling/Lifting Winch (1710/550 pounds)

Model#: PCH1000

Stock#: 708-PCH1000

UPC/GTIN/EIN: 690581001130

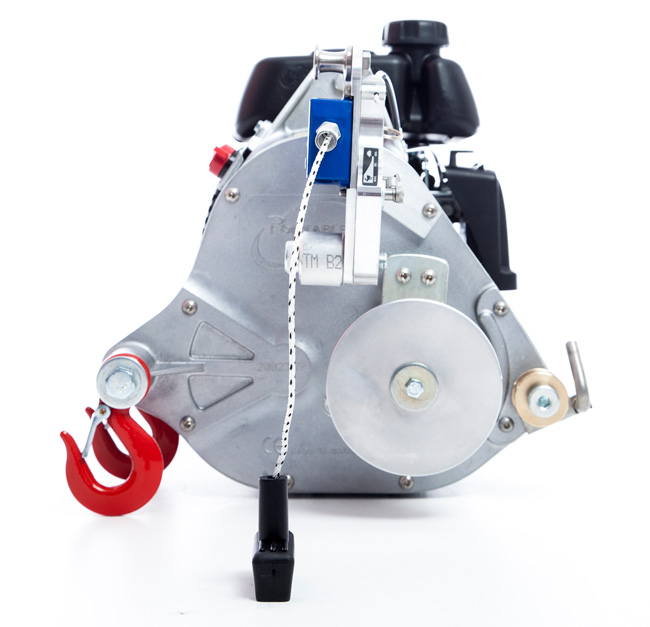

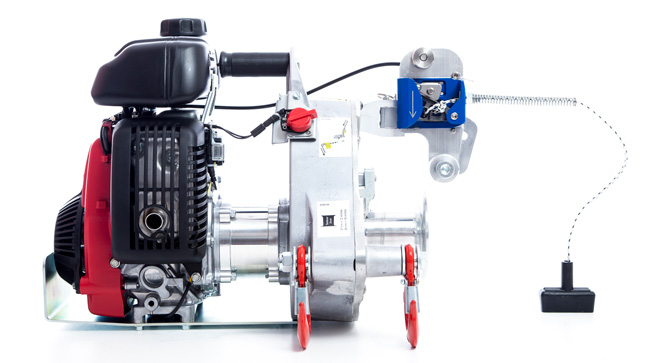

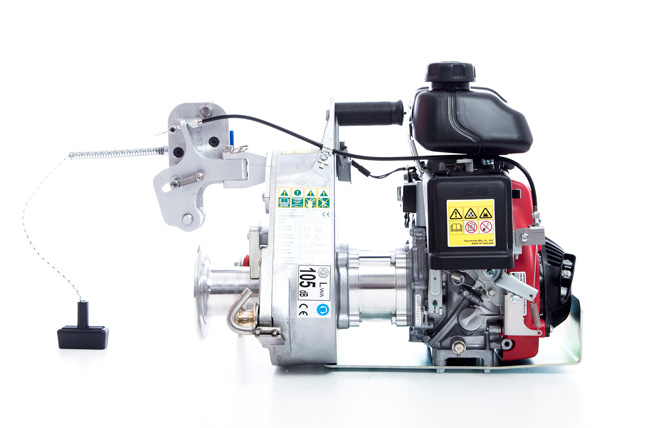

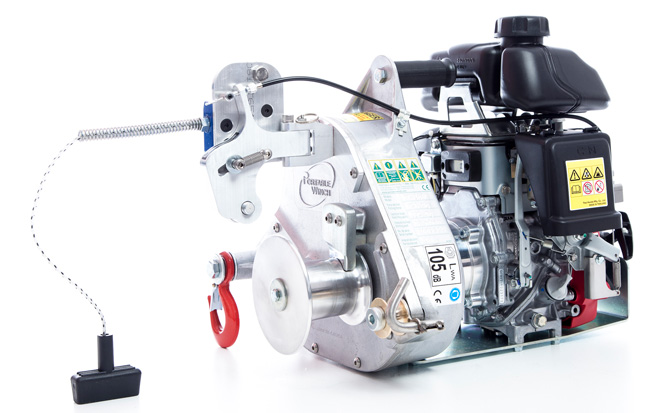

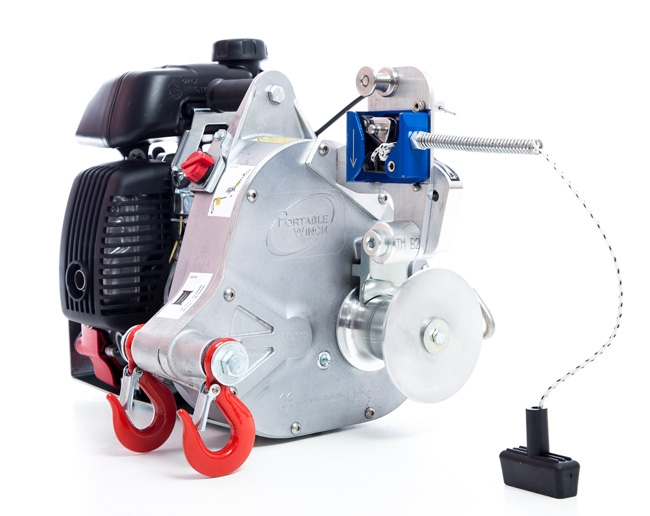

Portable Winch Gas-Powered Pulling/Lifting Winch (1710/550 pounds)

708-PCH1000

$2,846.99 Sale price: $2,846.99

THIS ITEM SHIPS FOR FREE!
ON BACKORDER
Call for availability

Portable Winch Gas-Powered Pulling/Lifting Winch (1710/550 pounds)

Features:

  • Honda 4-Stroke GXH-50cc
    • Aluminum Alloy Gear Box
    • Heat-treated 3 Stage Spur Gears
    • Ball-bearing Mounts
    • Oil Bath Lubrication
  • Lightweight
  • For use with double-braid polyester rope
    • 12mm to 13mm
  • Polyester Sling Included
    • 60 mm x 2 m

Specifications:

Drum Size

Pulling Capacity (pounds)

Lifting Capacity (Pounds)

Speed (Feet per minute)

Comes With: 57mm

1710

550

40

Optional: 85mm

1190

385

60

  • Dimensions (inches):
    • Weight: 42 pounds
    • Length: 19-7/8
    • Width: 14-5/8
    • Height: 14-¼

The Portable Winch Gas-Powered Pulling/Lifting Winch was designed for lifting applications ideal for a variety of uses on the job site. With a single line, it can lift a load of 550 pounds with an integrated rope grabbing system. Powered by a Honda GXH-50cc four-stroke engine. Capable of pulling up to 2200 pounds at 40-feet per minute with the standard 57-millimeter drum. A low stretch double braided polyester with eye splice, and thimble is mandatory for lifting applications. It can be used with any length of double-braid polyester rope diameter 12mm to 13mm.

Click here for more options for drum size.

Receive an additional year of warranty by registering your product below:





708-PCH1000

Capacity: 1710 lbs
Width: 14-5/8"
Height (Generic): 14-1/4"
Length: 19-7/8"
Manufacturer: Portable Winch
Rope Compatibility (Min/Max): 1/2"
Warranty?: Commercial Use: 1 Year
Private Use: 2 Years
Weight: 42.00
