Home > Brands > Little Mule > Little Mule Lineman's Hot Stick Ring Hooks with Hot Stick Ring Safety Latches Hoist

Model#: C-CLMU-04144W

Stock#: C-CLMU-04144W

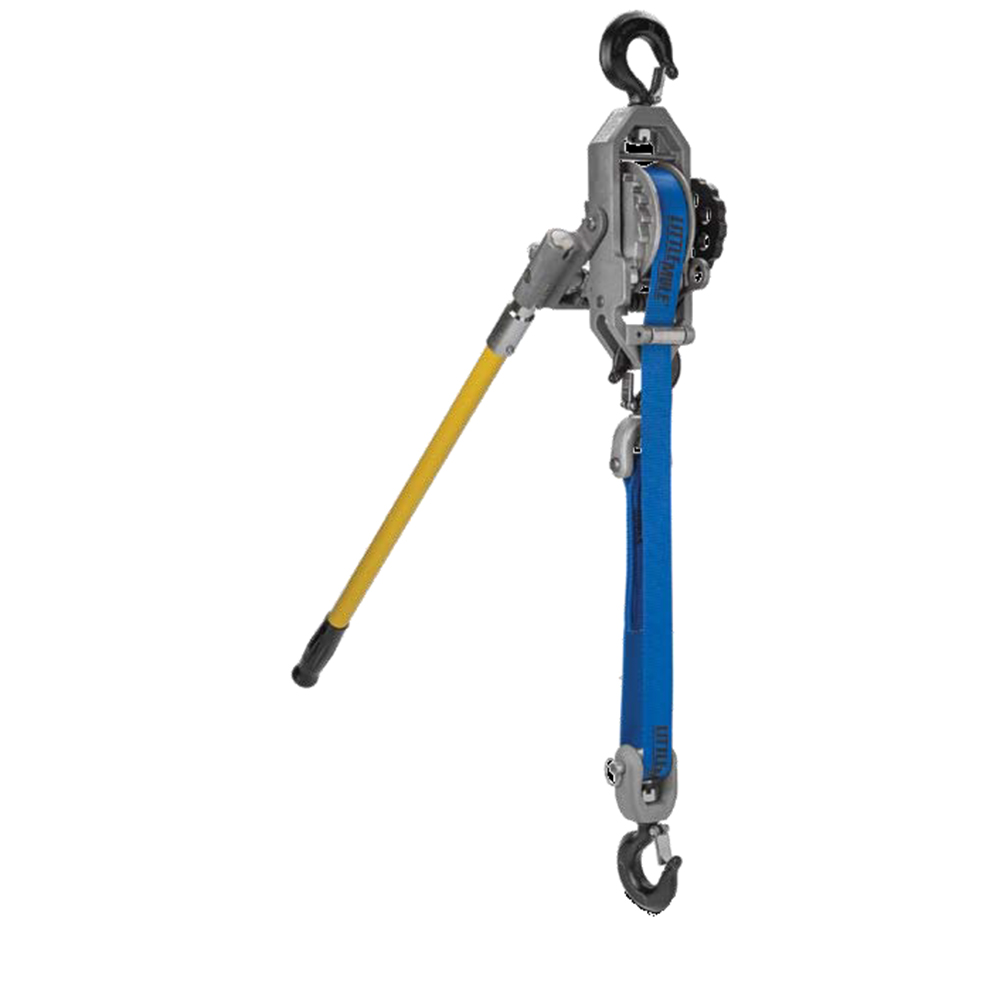

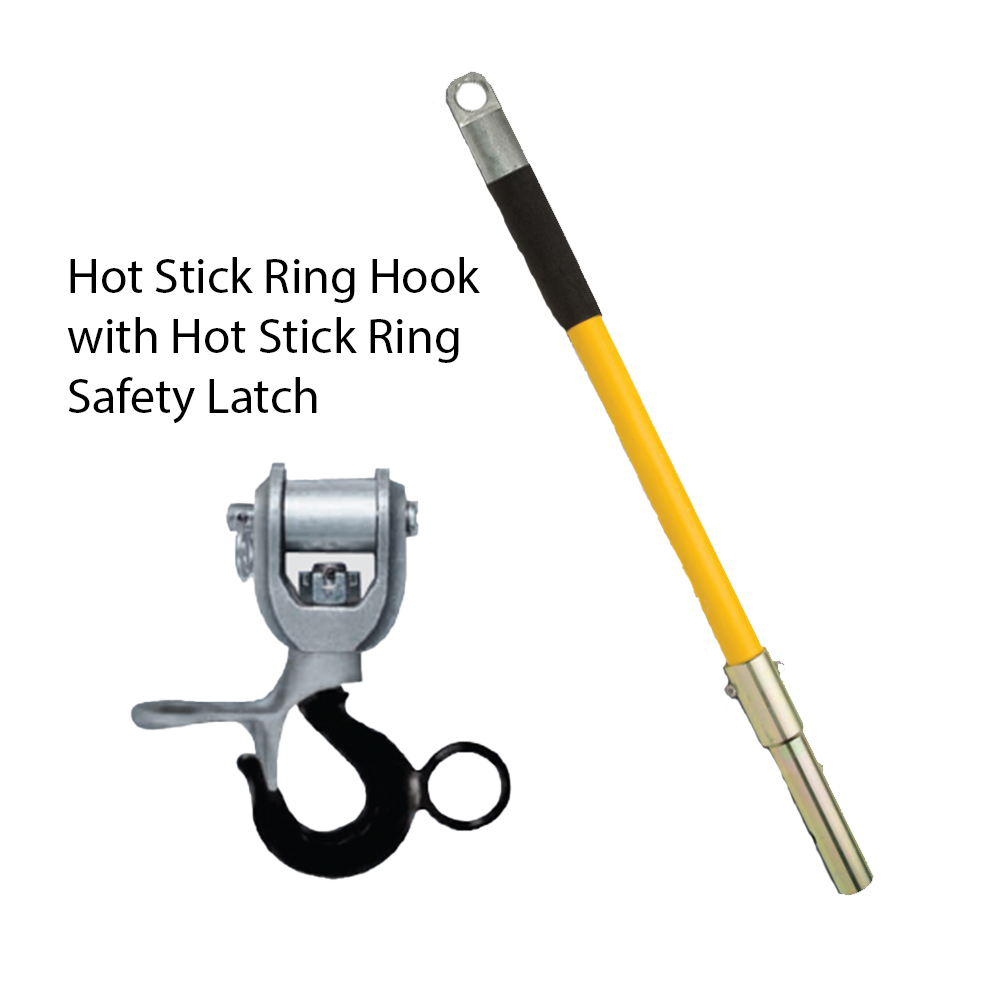

Little Mule Lineman's Hot Stick Ring Hooks with Hot Stick Ring Safety Latches Hoist

Multiple Options Available

$575.99 to $628.99 Sale price: $575.99 to $628.99

THIS ITEM SHIPS FOR FREE!
Please select an option below

  • NON-CONDUCTIVE HANDLE: Fiberglass handles with polyester webbing provide added non-conductive material when using proper hot line handling techniques. Some models are also available with a hot stick ring on the handle.
  • EASY ACCESS DIRECTIONAL LEVER: Improved directional lever makes it easier than ever to access, especially with a gloved hand. Hot stick compatible.
  • LIGHTWEIGHT AND RUGGED: These hoists are made with cast aluminum frames as well as corrosion-resistant stainless steel springs and frame shafts. Roller shafts are stainless steel plated. All rotating shafts are mounted on bronze bushings for reduced wear.

Capacity *

Lift Length *

Little Mule Lineman's Hot Stick Ring Hooks with Hot Stick Ring Safety Latches Hoist

The Little Mule Lineman's Hot Stick Ring Hooks with Hot Stick Ring Safety Latches Hoist is high quality and dependable, making it one of the favorites of linemen across the nation. This strap hoist is designed for rugged use with dependability in mind.

Features:

  • NON-CONDUCTIVE HANDLE: Fiberglass handles with polyester webbing provide added non-conductive material when using proper hot line handling techniques. Some models are also available with a hot stick ring on the handle.
  • EASY ACCESS DIRECTIONAL LEVER: Improved directional lever makes it easier than ever to access, especially with a gloved hand. Hot stick compatible.
  • LIGHTWEIGHT AND RUGGED: These hoists are made with cast aluminum frames as well as corrosion-resistant stainless steel springs and frame shafts. Roller shafts are stainless steel plated. All rotating shafts are mounted on bronze bushings for reduced wear.
  • X HOOKS AND GATE LATCHES: All hooks swivel 360° and are equipped with latches. Optional hooks with gates can also be added.
  • POSITIVE LOAD HOLDING & EASY POSITIONING: Double interlocking pawls assure one pawl is engaged at all times. Dual pawl springs provide unsurpassed reliability. Utilizing a double pawl system, this multiple pawls stops for precise load adjustment.
  • SAFE AND OPEN DESIGN: Thumbscrews used to secure the handle are pegged and cannot be backed out. Competitive units use butterfly nuts which can cause the handle to come loose. The open design allows for easy inspection and cleaning.
  • EASY TO OPERATE: Self-storing web drum provides compact operation. Non-conductive winding wheel provided for quick take-up or positioning of slack webbing. An easily removable sheave block with a quick-disconnect design allows for the hoist to be converted for double- or single-line use.
  • 4:1 DESIGN FACTOR: Meets or exceeds minimum 4:1 design factor and all requirements of ASME/ANSI Standard B-30.21. All units tested at 125% of the rated load.
  • OVERLOAD FEATURE: Solid fiberglass handle, with replaceable tips, bends to alert the operator of a possible overload.
  • OPEN DESIGN: The open design allows for easy inspection and cleaning.

Specifications:

Model Number Product Code Single Line Double Line Web Strap Width/ Color Web Strap Length (ft.) / Handle Length (in.)
Capacity (Tons) Lift (ft.) Head Room (in.) Capacity (Tons) Lift (ft.) Head Room (in.)
250DHA 04193W 1/2 9.25 18 1 4.25 25 1-1/4"/Green 10'/20"
300DHA 04144W 3/4 9.25 18 1 4.25 25 1-1/4"/Green 10'/20"
344DHC 04493WC 1 11 22 2 5.5 26 1-1/2"/Blue 12'/30"

Available Options:

  • Capacity (Single Line)
  • Lift Length (ft)

C-CLMU-04144W

Features: 360° Rotation
Handle Type: Fiberglass
Manufacturer: Little Mule
Material: Aluminum
Polyester Web
Stainless Steel
Standards: ANSI/ASME B30.21
