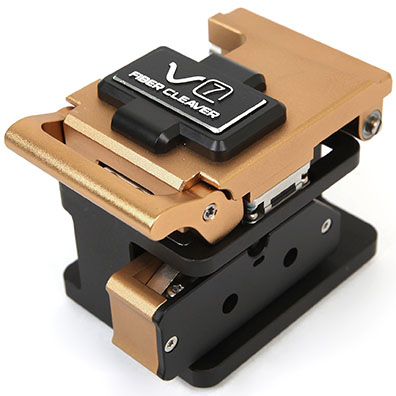

Inno Instrument V7 High Precision Cleaver

V7 High Precision Cleaver is an instrument for high precision fiber cutting. V7 can be installed with a variety of holders: ribbon cable up to 12 fibers as well as a universal holder which is applicable to 250μm, 900μm, 3.0mm fiber cable, and flat cable.

Features:

• Work efficiency can be maximized with easy and simple 2 step operations.
• The blade provides over 48,000 fiber cleaves with easy and simple blade position selection.
• Helped by unmatched functionalities, users can achieve the most accurate cleaving and ideally prepare their fusion splicing.

Specifications:

• Type:
  • Single & Ribbon Fiber Cable Cleaver
• Cladding Diameter:
  • 125μm
• Cleaved Length:
  • Single Fiber: 8-250mm
  • Ribbon Fiber: 10mm
• Applicable Fiber Cable:
  • Single Fiber: 250μm, 900μm, 3.0 fiber cable
  • Flat Cable Ribbon Fiber: 2 to 12 ribbon fiber cable
• Typical Cleaved Angle:
  • Less than .5 Degrees
• Typical Blade Life Span:
  • Total 48,000 fiber cleaves 1,000 fiber for 1 step (total 16 points) 3 heights
• Operation Steps:
  • 2 Steps
• Reclaim Function:
  • Blade Pushback
• Holder:
  • Single- universal Holder
  • Ribbon- Replaceable holder
