UCL Swift North America All-In-One Active Clad Alignment Fusion Splicer

All-In-One Fusion Splicers mean easier to use, easier to train and fewer mistakes.

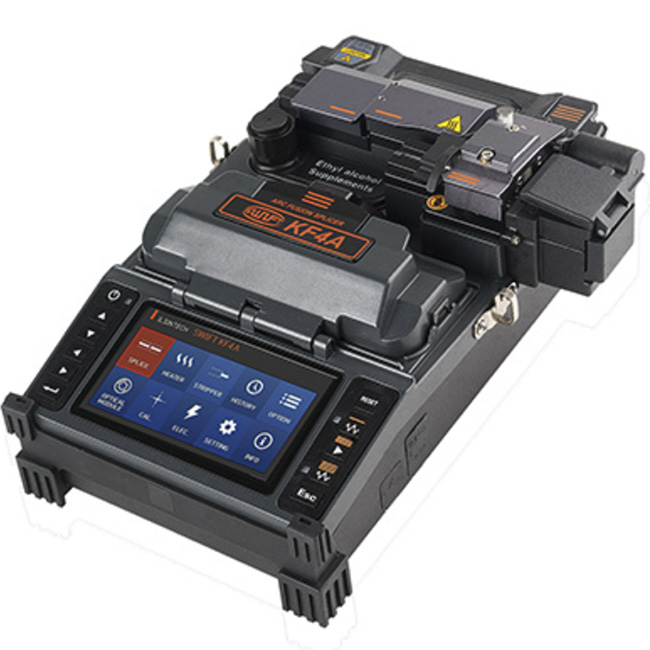

Swift KF4A is a highly advanced and accurate active cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically: stripping, cleaning, cleaving, splicing and sleeving (All-in-One). The Swift KF4A is the best fit for fusion splicing and fusion splice-on connectors (SOC) of FTTx network applications.  The KF4A eliminates fatal issues common with conventional mechanical connectors including low quality, weak durability and high maintenance costs. The Swift KF4A  fusion splicer coupled with our fusion splice-on connectors provides customers the best ROI.

Features:

• Rotating blade life allows up to 77,000 cleaves
• Integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, protecting)
• The fusion splicer with All-In-One system provides the best workability onsite and in a limited work space
• No scratches on fiber by thermal stripping
• Compatible with Fusion Splice-on Connector (SOC) in accordance with the industry standards
• Ideal for Enterprise, Datacenter, Broadband and FTTH network applications

All-In-One Active Cladding Alignment Fusion Splicer Kit Includes:

• Swift KF4A Arc Fusion Splicer Body
• EI-24 Spare Electrodes
• CT-01 Cooling tray
• KF-3400 Battery
• 3300 Allen Wrenches
• HS-900 Fiber Holder, 900 micron (1 Pair)
• KF4-SC Splice on Connector Holder, SC/FC
• KF4-ILC Splice on Connector Holder, LC
• AC Charger
• Carrying Case - Hard Case
• CD User Guide

Specifications:

• Fiber alignment:   IPAAS Active Cladding Alignment
• Applicable type of fibers:   0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable
• Fiber count:   Single fiber
• Applicable fiber dimensions:   Cladding diameter: 125μm, Coating diameter: 150μm~3mm
• Fiber setting and cleaved length:   0.20in to 0.63in
• Splicing modes:   Splice mode: 300, Heat mode: 100
• Typical splice loss:   SM: 0.02dB, MM: 0.01dB, DS:0.04dB, NZDS: 0.04dB
• Return loss:   > 60dB
• Splicing time:   Typical 7 sec with SM
• Sleeve heating time:   Typical 13sec with IS-60 mode, IS-60 sleeve
• Applicable protection sleeve:   2.4in, 1.5in and micro sleeves
• Storage of splice result:   Data: 5,000ea up to, Image: 5,000ea up to
• Tension test:   1.96N to 2.25N
• Storage condition:   Temperature: 40°F~176°F, Humidity: 0~95%
• Dimension:   132(W) x 212(L) x 73(H)mm (without rubber protector)
• Weight:   1.5kg (including battery)
• Viewing method and display:   2 AXIS Two CMOS cameras with 4.3-inch color LCD monitor
• Fiber view and magnification:   X/Y: 110X , Max: 220X
• Power supply:   Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC charger
• No. of splice cycles with battery:   Typical 200 cycles
• Electrode life:   38,000 splices
• Blade Life:   Up to 77,000 cleaves
• Terminals:   USB
