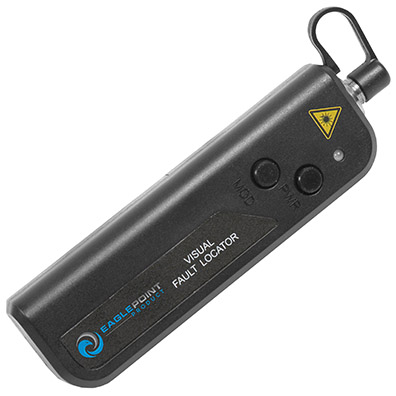

Eagle Point 10mW Visual Fault Locator

Mini Visual Fault Locator
10mw

This economical VFL is an efficient and low cost basic fiber test tool. It provides a visible way to find fiber faults and identify fibers in an optical network during and after installation.


Features
• Finding the breakpoint, poor connections, bending or cracking in fiber optic cables
• Finding the faults of OTDR dead zone
• End-to-end visual fiber identification
• Constant & stable output power
• Special laser driver circuit design, to make sure the laser output power remains a constant power level as long as in an available battery voltage
• Low battery warning, reminds users to change the battery timely
• Long battery life (up to 15 hours with AAA batteries)
• Operates either in CW or Pulsed
• Pocket size and light weight, easy to use

Specifications
Central Wavelength:     650nm±10nm
Emitter Type:                 FP-LD
Output Power:               10mw
Optical Connector:        FC / 2.5mm universal connector

Operating Model:         Both CW and Pulse(2Hz) available
Power Supply:               Two AAA alkaline batteries
