Home > Brands > Coffing Hoists > Coffing Hoist ATG Ratchet Lever Hoist

Model#: 05105W

Stock#: CLMU-05105W

Catalog#: 33R

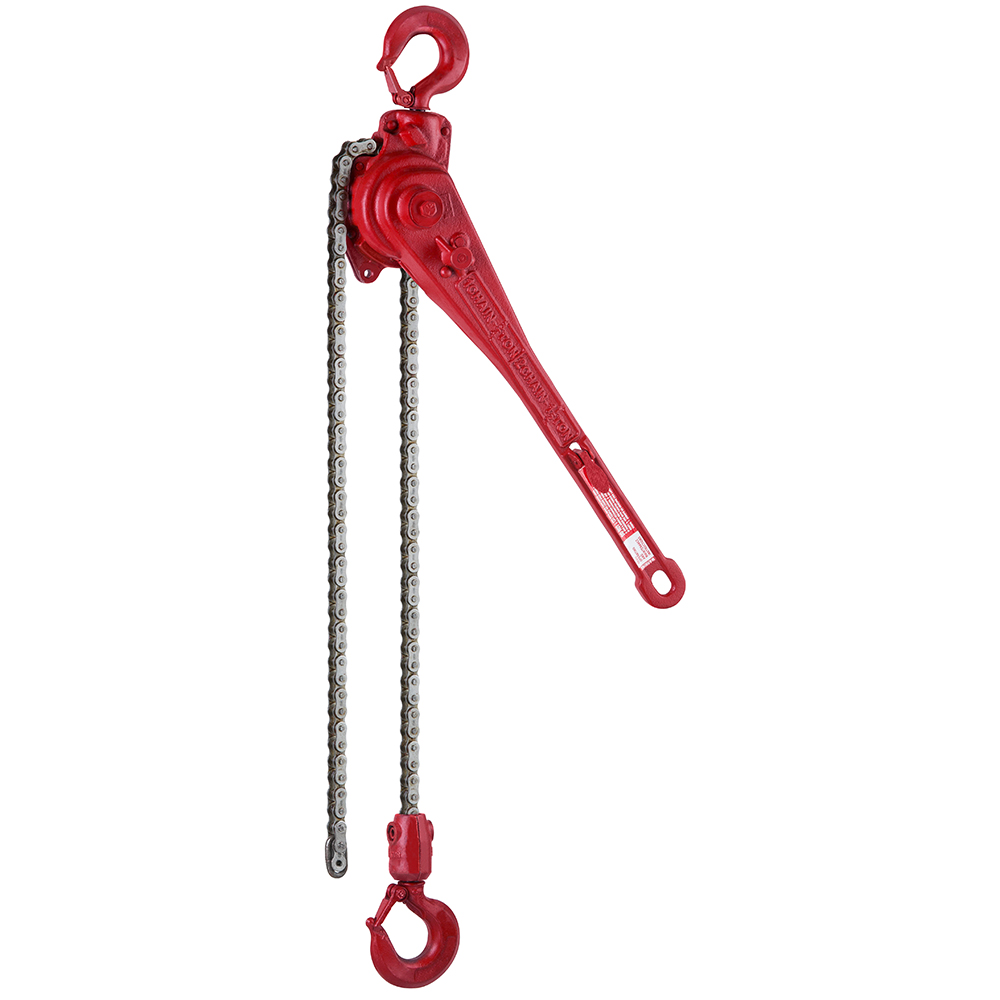

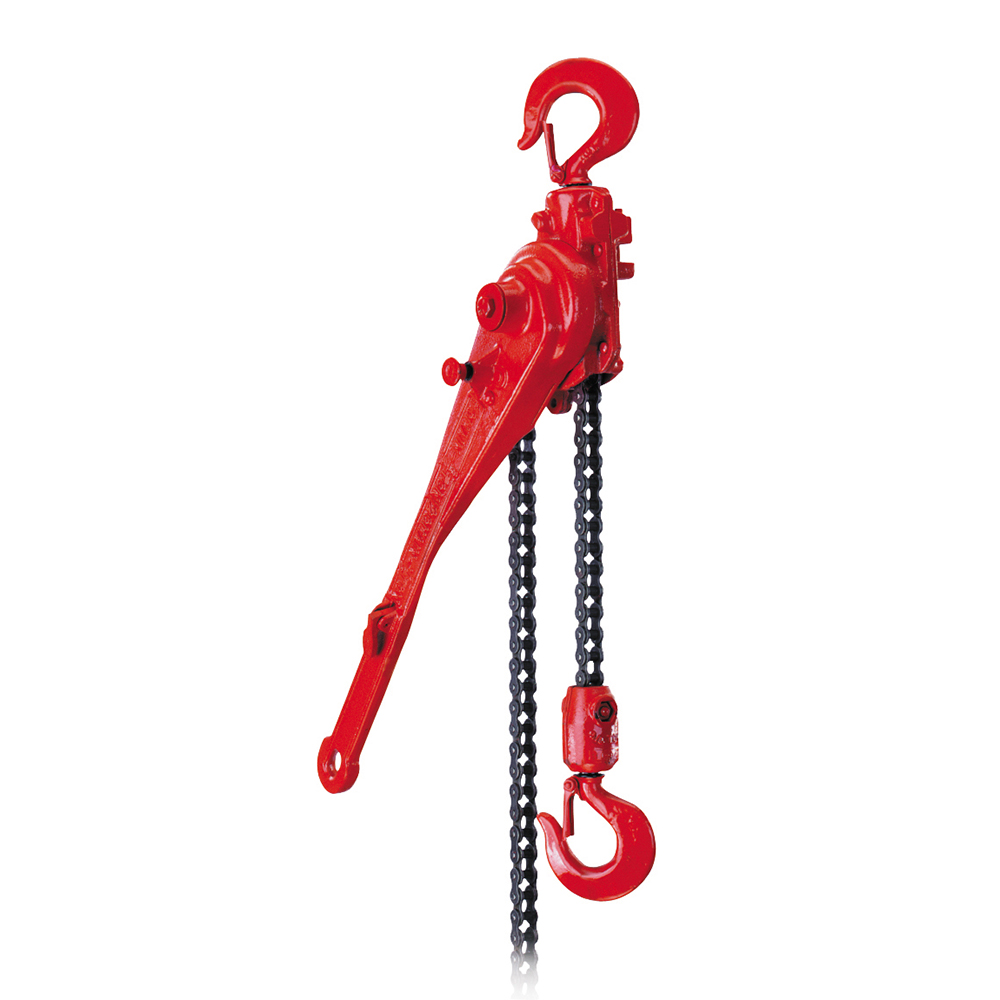

Coffing Hoist ATG Ratchet Lever Hoist

CLMU-05105W

$822.99

THIS ITEM SHIPS FOR FREE!
Get It Between Jun 28 and Jul 03

  • RUGGED DESIGN: Unit and handle made from malleable iron. Riveted construction makes the unit tamper-resistant.
  • FREE CHAINING: Free-chaining mechanism allows quick and easy take-up and positioning of the slack chain. The hoist will not free chain when under load.
  • HOIST CAN LIFT, PULL, OR BIND: Single or double locking ratchet and pawl design allow for multiple rigging options. Can be operated from either side and will work in any position with equal efficiency.

Coffing Hoist ATG Ratchet Lever Hoist

The Coffing Hoist ATG Ratchet Lever Hoist is efficient and durable, featuring a malleable iron roller chain. The roller chain often referred to as bicycle chain, can be spliced to create longer lifts and can handle higher capacities than the coil chain. G Series hoists are ideal for utility transmission and distribution work.

Features:

  • RUGGED DESIGN: The unit and handle are made from malleable iron. Riveted construction makes the unit tamper-resistant.
  • FREE CHAINING: Free-chaining mechanism allows quick and easy take-up and positioning of the slack chain. The hoist will not free chain when under load.
  • HOIST CAN LIFT, PULL, OR BIND: Single or double locking ratchet and pawl design allow for multiple rigging options. Can be operated from either side and will work in any position with equal efficiency.
  • SNAP HOOK & LINK: Allows the operator to convert the unit to the next smallest capacity to provide longer lift and faster operation. Snap hook acts as an end stop and will not pass through the chain sprocket.
  • HANDLE STOPS: Prevent the handle from spinning if it is accidentally released by the operator.
  • ADJUSTABLE LIFT: The lift/reach can be adjusted by adding or removing links.


Specifications:

Capacity Model Number Standard Lift (in.) Strands of Load Chain Minimum Distance Between Hooks (in.) Handle Length (in.) Average Handle Effort (lbs.)
(lbs) (kg.)
3000 1-1/2 ATG/05105W 57 2 15 18-3/4 60

CLMU-05105W
Capacity: 1 Ton
3000 lbs
Length: Lift Length: 57"
Manufacturer: Coffing Hoists
Weight: 18.00
